Connector End View (C2383A) - SYNC MODULE [APIM]

Connector: Description Color Harness Base Part # Service Pigtail
C2383A SYNC MODULE [APIM] 14401 part# N/A Not Available

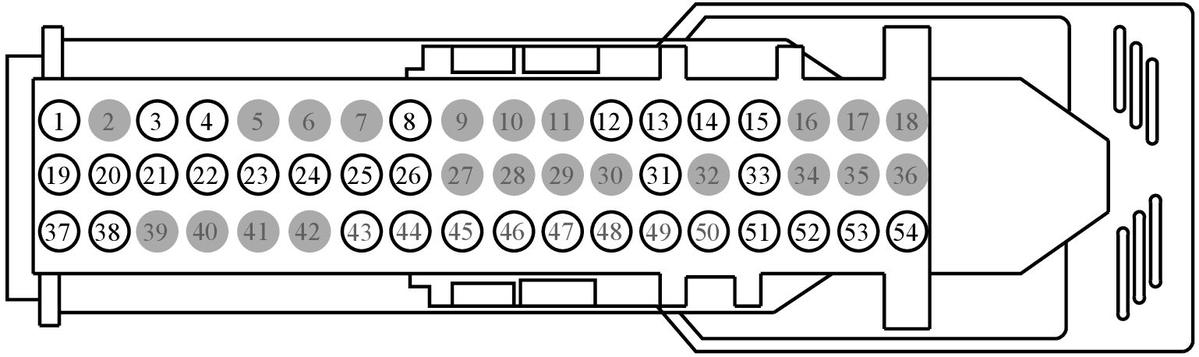

GFDWR13354Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SBP32 (VT-RD) 20 FUSE - OR CIRCUIT BREAKER 9U5T-14474-DB
2 * * Not Used N/A
3 VME80 (VT-GN) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) 9U5T-14474-DB
4 RME80 (BU-GY) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) 9U5T-14474-DB
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 LME89 (YE-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY POWER 9U5T-14474-DB
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 VMM23 (BN-VT) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + 9U5T-14474-DB
13 RMM23 (WH-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - 9U5T-14474-DB
14 VMP19 (WH-GN) 22 CAMERA - PARKING AID REAR VIDEO + 9U5T-14474-DB
14 VMP43 (GN-BU) 22 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT + 9U5T-14474-DB
15 RMP19 (BN-VT) 22 CAMERA - PARKING AID REAR VIDEO - 9U5T-14474-DB
15 VMP44 (VT-GY) 22 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT - 9U5T-14474-DB
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 VDB29 (GN-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH 9U5T-14474-DB
20 VDB30 (WH-GN) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW 9U5T-14474-DB
21 DME80 (BK) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D 9U5T-14474-DB
22 DME52 (BK) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO D 9U5T-14474-DB
23 VME52 (BU) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT + 9U5T-14474-DB
24 RME52 (GY-OG) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT - 9U5T-14474-DB
25 VME53 (VT-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT + 9U5T-14474-DB
26 RME53 (BN-WH) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT - 9U5T-14474-DB
27 * * Not Used N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 DMM23 (BK) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL D 9U5T-14474-DB
32 * * Not Used N/A
33 DMP19 (BK) 22 CAMERA - PARKING AID REAR VIDEO D 9U5T-14474-DB
33 DMP43 (BK) 22 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT D 9U5T-14474-DB
34 * * Not Used N/A
35 * * Not Used N/A
36 * * Not Used N/A
37 GD215 (BK-GY) 22 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT 9U5T-14474-DB
38 RME89 (WH-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY GROUND 9U5T-14474-DB
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
46 * * Not Used N/A
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 VME90 (GY-BU) 22 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) 9U5T-14474-DB
52 VME91 (WH-BN) 22 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) 9U5T-14474-DB
53 VDB04 (WH-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH 9U5T-14474-DB
54 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW 9U5T-14474-DB
