Connector End View (C2280F) - BODY CONTROL MODULE (BCM)

Connector: Description Color Harness Base Part # Service Pigtail
C2280F BODY CONTROL MODULE (BCM) 14290 part# N/A Not Available

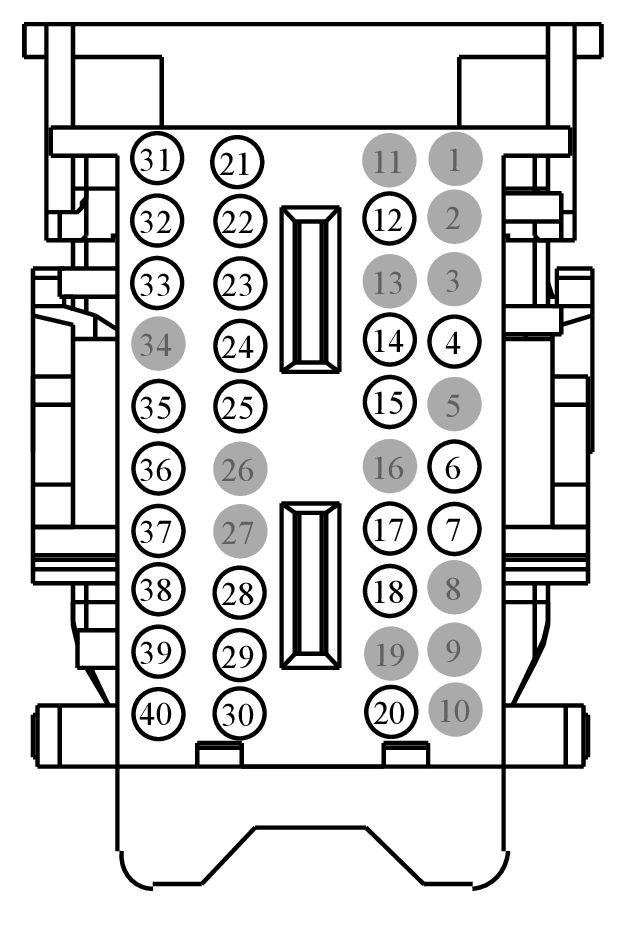

GFDWR13337Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DB|9U5T-14474-EB Not Available
9U5T-14474-DB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 VDN03 (GY-VT) 20 CTRL MOD. - LIN BUS # BCM 3 9U5T-14474-DB
5 * * Not Used N/A
6 CLS56 (YE-GN) 22 LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT 9U5T-14474-DB
6 CLS56 (YE-GN) 20 LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT 9U5T-14474-DB
7 LMP06 (VT-GY) 20 CTRL MOD. - PARKING AID # SENSORS FRONT + 9U5T-14474-DB
8 * * Not Used N/A
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 CAT17 (BN) 22 RELAY - TRAILER TOW PARK LAMPS (COLOR TO SAE 1239) 9U5T-14474-DB
13 * * Not Used N/A
14 CPL25 (BU-OG) 20 SWITCH - HOOD # AJAR 9U5T-14474-DB
15 VDN14 (YE-VT) 20 CTRL MOD. - LIN BUS # BCM 6 9U5T-14474-DB
16 * * Not Used N/A
17 CLS58 (BU-WH) 22 LAMP - TURN FRONT RIGHT # SIGNAL OUT 9U5T-14474-DB
17 CLS58 (BU-WH) 20 LAMP - TURN FRONT RIGHT # SIGNAL OUT 9U5T-14474-DB
18 CE436 (VT-OG) 22 CTRL MOD. -WAKE UP PCM 9U5T-14474-DB
19 * * Not Used N/A
20 CRH04 (VT-GN) 22 CTRL MOD. - RELAY HORN 9U5T-14474-DB
21 VMP13 (BU-OG) 20 SENSOR - PARKING AID # FRONT # (RIGHT OUTER) 9U5T-14474-DB
22 VMP12 (BU-GY) 20 SENSOR - PARKING AID # FRONT # (RIGHT INNER) 9U5T-14474-DB
23 CDC71 (YE-GY) 22 CTRL MOD. - POWER OUTLET ENABLE OR SET 9U5T-14474-DB
24 CDC64 (WH-BU) 22 RELAY - RUN ACCESSORY 9U5T-14474-DB
25 CDC55 (BN-VT) 22 RELAY - RUN START 9U5T-14474-DB
26 * * Not Used N/A
27 * * Not Used N/A
28 CMC19 (GY-VT) 22 SWITCH - LOW LEVEL BRAKE FLUID 9U5T-14474-DB
29 CE261 (GY-OG) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES) 9U5T-14474-DB
30 CLS13 (YE-BU) 22 CTRL MOD. - SIDE MARKER FRONT LEFT 9U5T-14474-DB|9U5T-14474-EB
30 CLS05 (BU-GY) 18 CTRL MOD. - PARK LAMPS 1 9U5T-14474-DB|9U5T-14474-EB
31 VMP11 (BU-GN) 20 SENSOR - PARKING AID # FRONT # (LEFT OUTER) 9U5T-14474-DB
32 VMP10 (WH-BU) 20 SENSOR - PARKING AID # FRONT # (LEFT INNER) 9U5T-14474-DB
33 CDC72 (BN-WH) 22 CTRL MOD. - POWER OUTLET DISABLE OR RESET 9U5T-14474-DB
34 * * Not Used N/A
35 RMP06 (YE-OG) 20 CTRL MOD. - PARKING AID # SENSORS FRONT - 9U5T-14474-DB
36 CLF62 (VT-WH) 22 CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT 9U5T-14474-DB
36 CLF62 (VT-WH) 20 CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT 9U5T-14474-DB
37 CLS14 (BU-OG) 22 CTRL MOD. - SIDE MARKER FRONT RIGHT 9U5T-14474-DB
38 CLS25 (YE-VT) 22 CTRL MOD. - TURN LAMP RIGHT FRONT 9U5T-14474-DB
38 CLS25 (YE-VT) 20 CTRL MOD. - TURN LAMP RIGHT FRONT 9U5T-14474-DB
39 CLS21 (BU-GN) 22 CTRL MOD. - TURN LAMP LEFT FRONT 9U5T-14474-DB
39 CLS21 (BU-GN) 20 CTRL MOD. - TURN LAMP LEFT FRONT 9U5T-14474-DB
40 CLF61 (GY-BU) 22 CTRL MOD. - DAYTIME RUNNING LIGHT LEFT 9U5T-14474-DB
40 CLF61 (GY-BU) 20 CTRL MOD. - DAYTIME RUNNING LIGHT LEFT 9U5T-14474-DB
