Instrument Panel Cluster (IPC) Lens: Removal

  1. Remove the IPC. Refer to: Instrument Panel Cluster (IPC) .

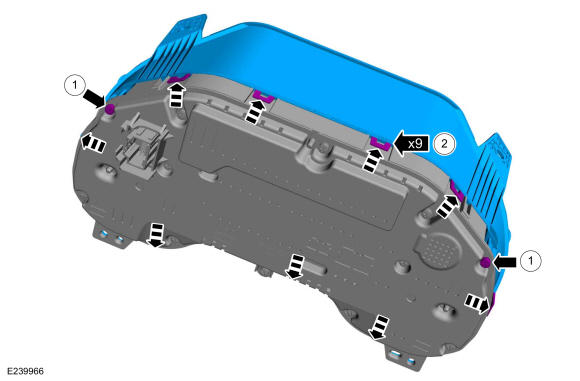

  2. Remove the screws, release the tabs and remove the IPC lens.
GFD294478Courtesy of FORD MOTOR COMPANY
