Instrument Panel Cluster (IPC) Lens: Installation

    • Install the IPC lens until the tabs have snapped into place.

    • Install the screws.

      Torque

      10 lb.in (1.1 Nm)

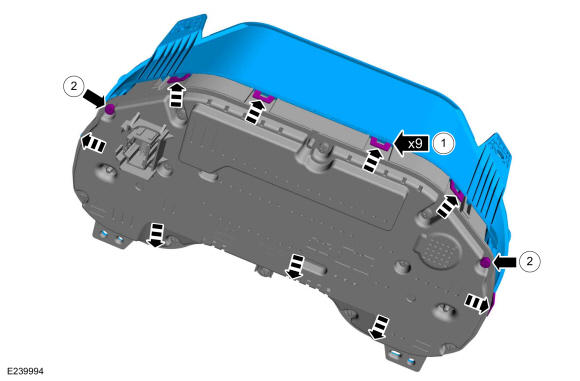

    GFD294479Courtesy of FORD MOTOR COMPANY
  2. Install the IPC. Refer to: Instrument Panel Cluster (IPC) .
