Engine Front Undershield

For information on Ford Color Coded Illustrations refer toOEM Color Coding

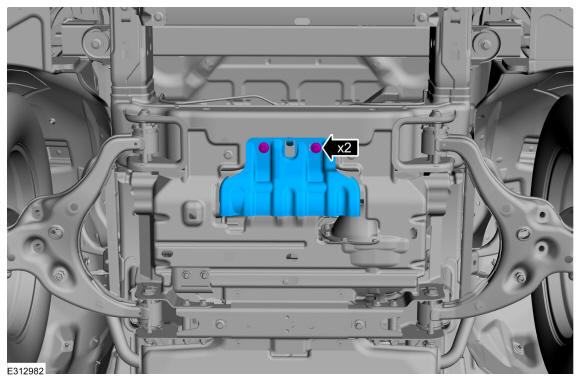

1. NOTE: 4X2 vehicle shown in illustration, 4X4 vehicle similar.

   If equipped, Remove the bolts and the underbody skid plate.

   Torque: 30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

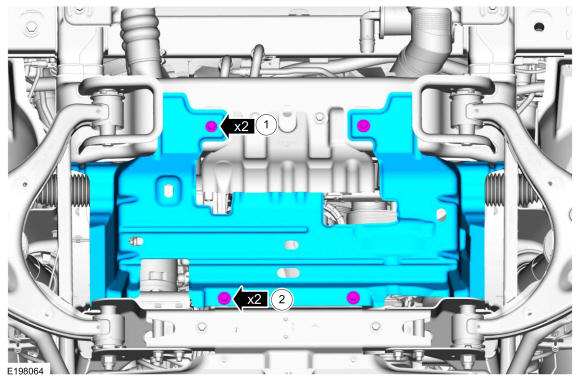

2. If equipped, Remove the bolts and the underbody skid plate.

   Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
