Active Park Assist Switch: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

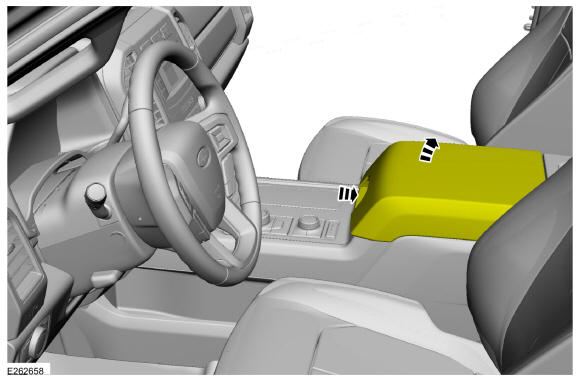

  1. Open the floor console armrest.
    GFD294525Courtesy of FORD MOTOR COMPANY

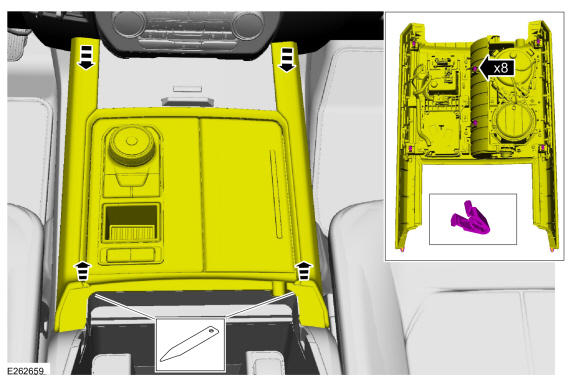

  2. Release the clips and position the floor console top trim panel up.
    GFD294526Courtesy of FORD MOTOR COMPANY

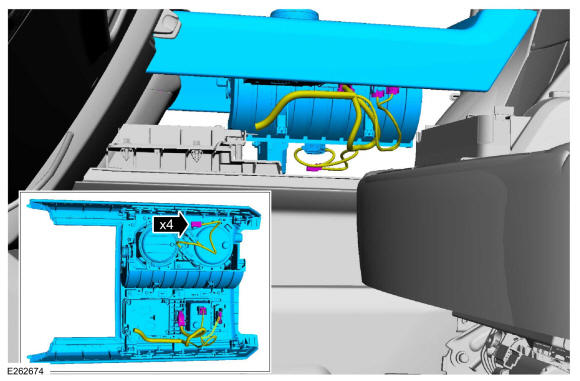

  3. NOTE: Keyed vehicle is shown in illustration, keyless vehicle is similar.

    Disconnect the electrical connectors and remove the floor console top trim plate.

    GFD294527Courtesy of FORD MOTOR COMPANY

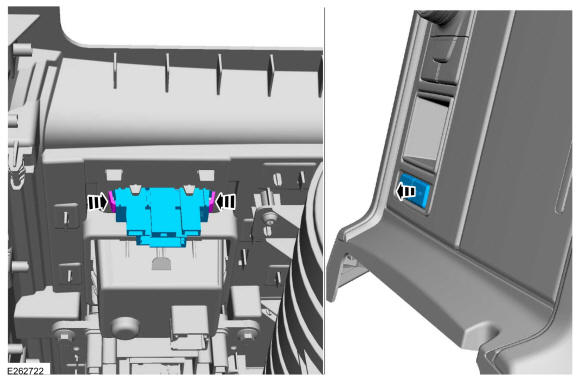

  4. Release the tabs and remove the active park assist switch.
GFD294528Courtesy of FORD MOTOR COMPANY
