Parking Aid

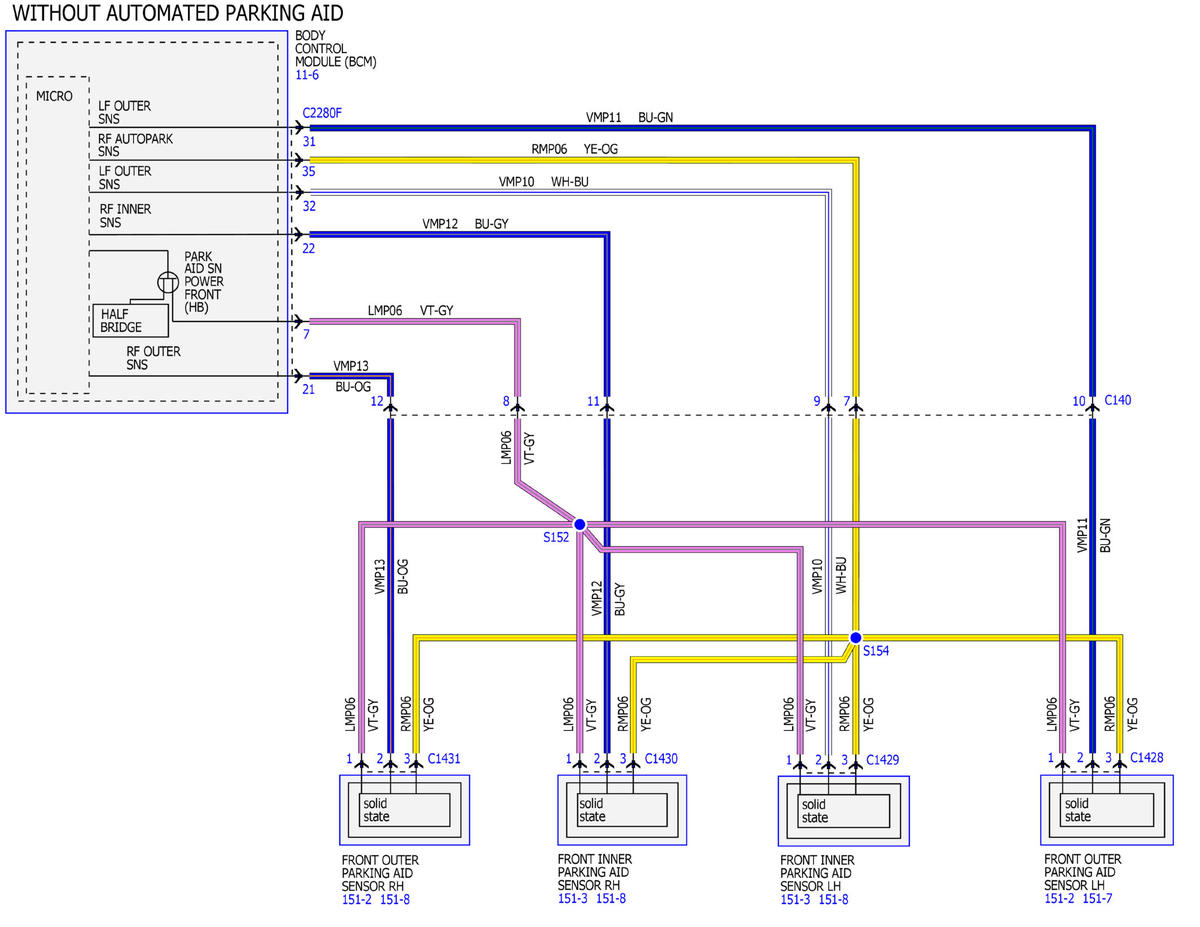

Fig 1: Parking Aid Wiring Diagram (1 Of 15)

GFDWR13919

Courtesy of FORD MOTOR COMPANY

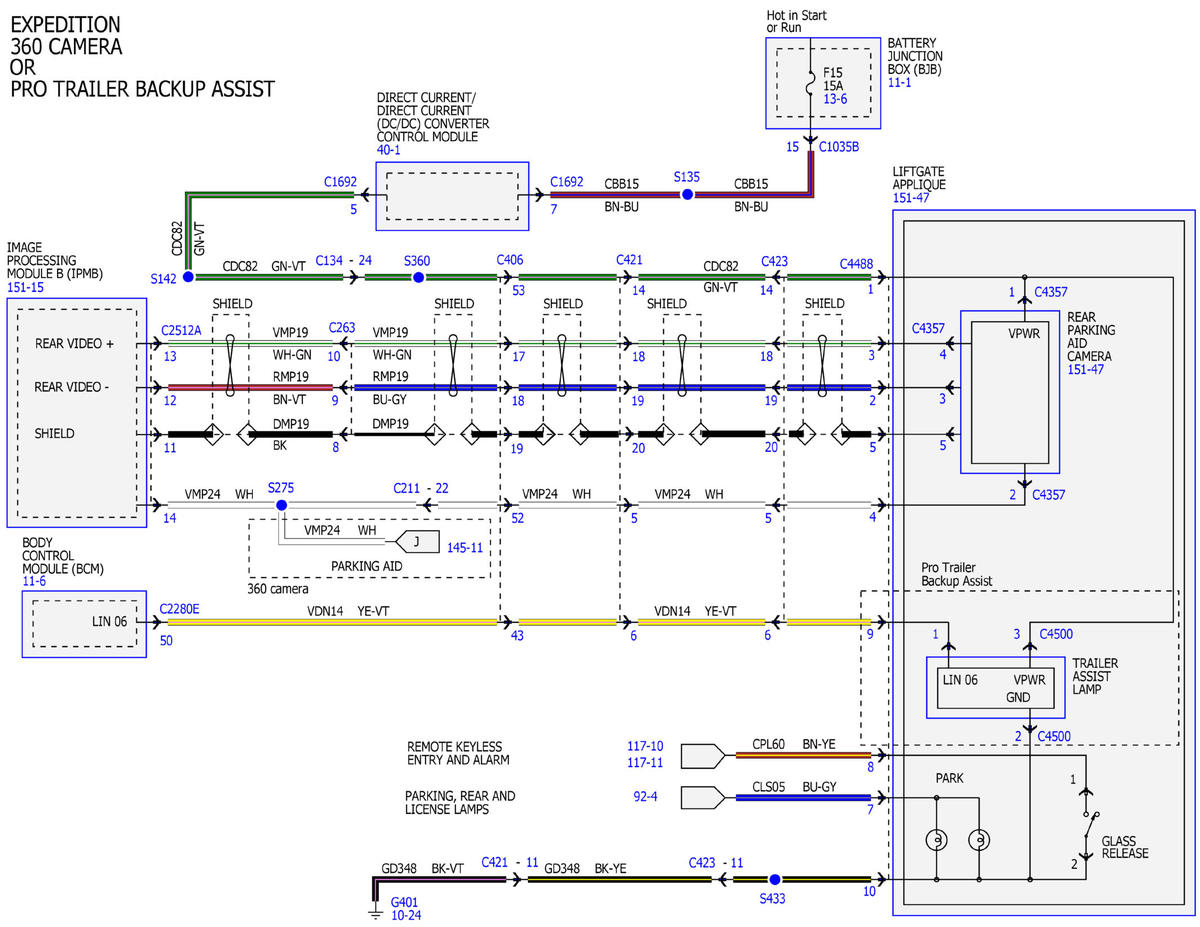

Fig 2: Parking Aid Wiring Diagram (2 Of 15)

GFDWR13920

Courtesy of FORD MOTOR COMPANY

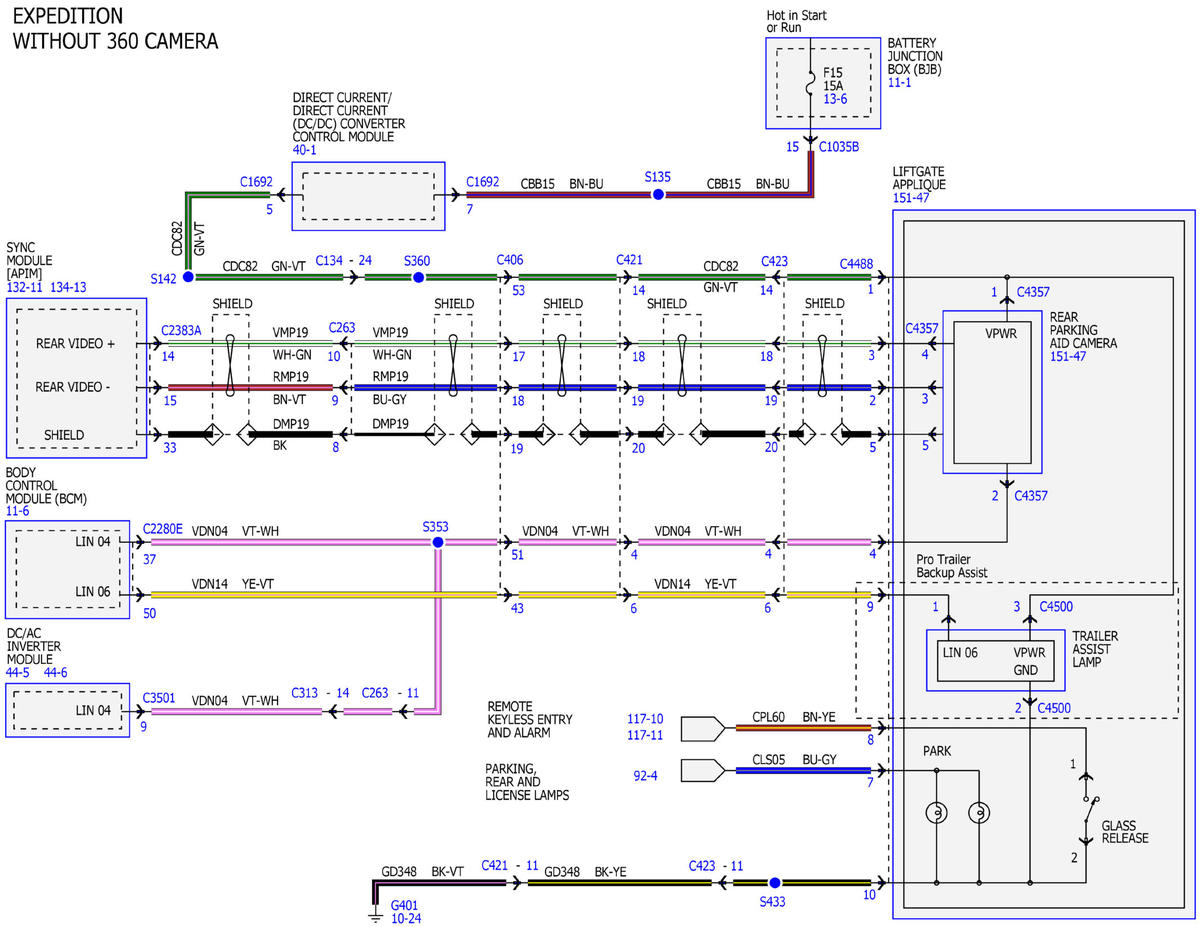

Fig 3: Parking Aid Wiring Diagram (3 Of 15)

GFDWR13921

Courtesy of FORD MOTOR COMPANY

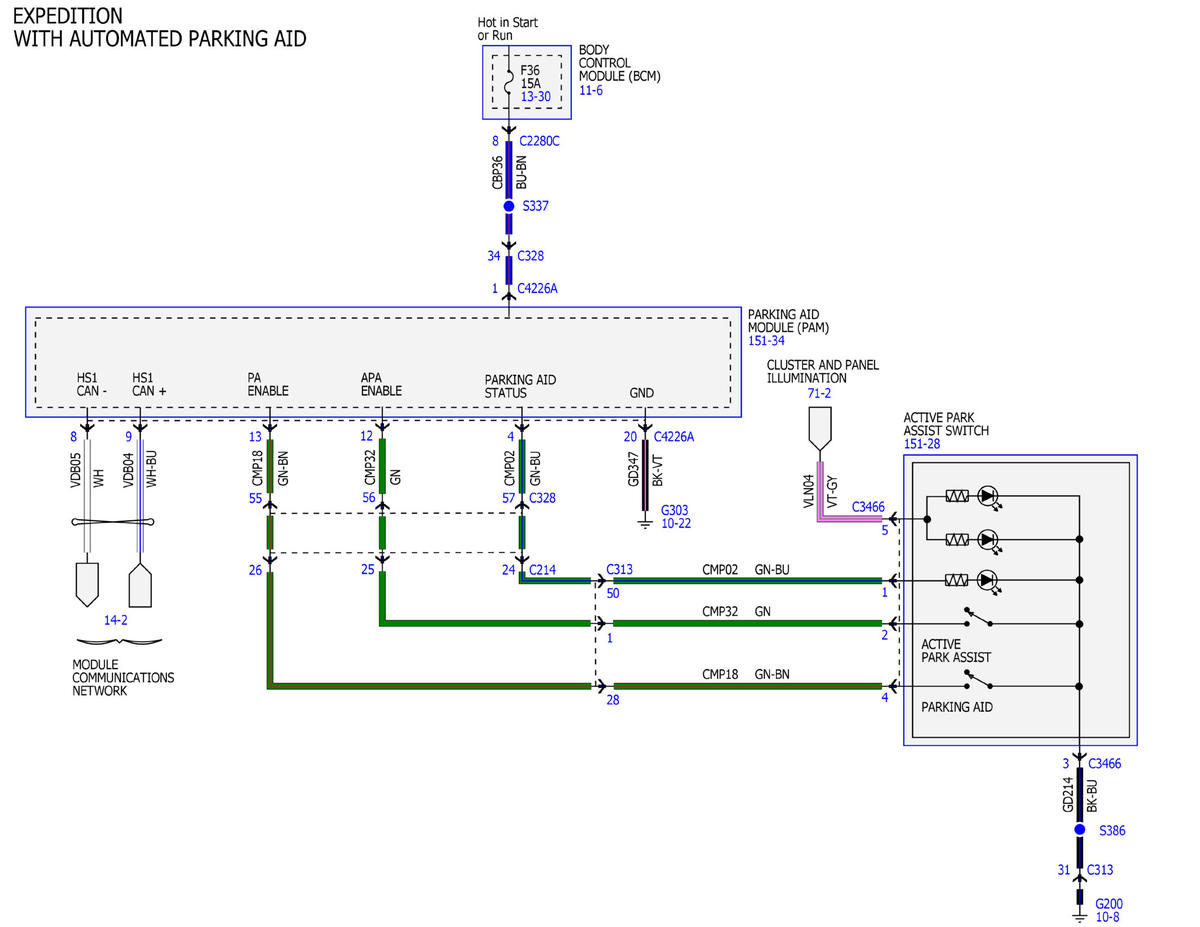

Fig 4: Parking Aid Wiring Diagram (4 Of 15)

GFDWR13922

Courtesy of FORD MOTOR COMPANY

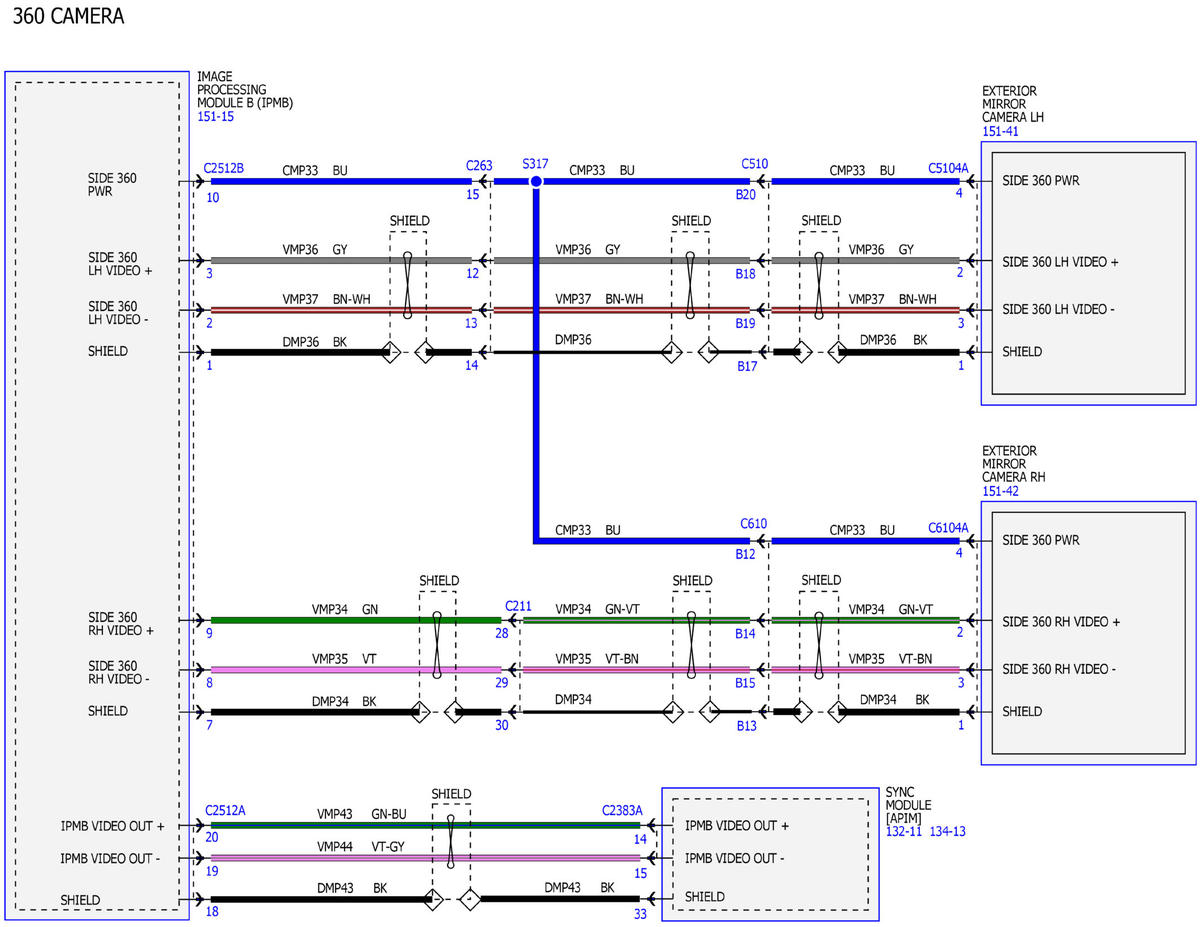

Fig 5: Parking Aid Wiring Diagram (5 Of 15)

GFDWR13923

Courtesy of FORD MOTOR COMPANY

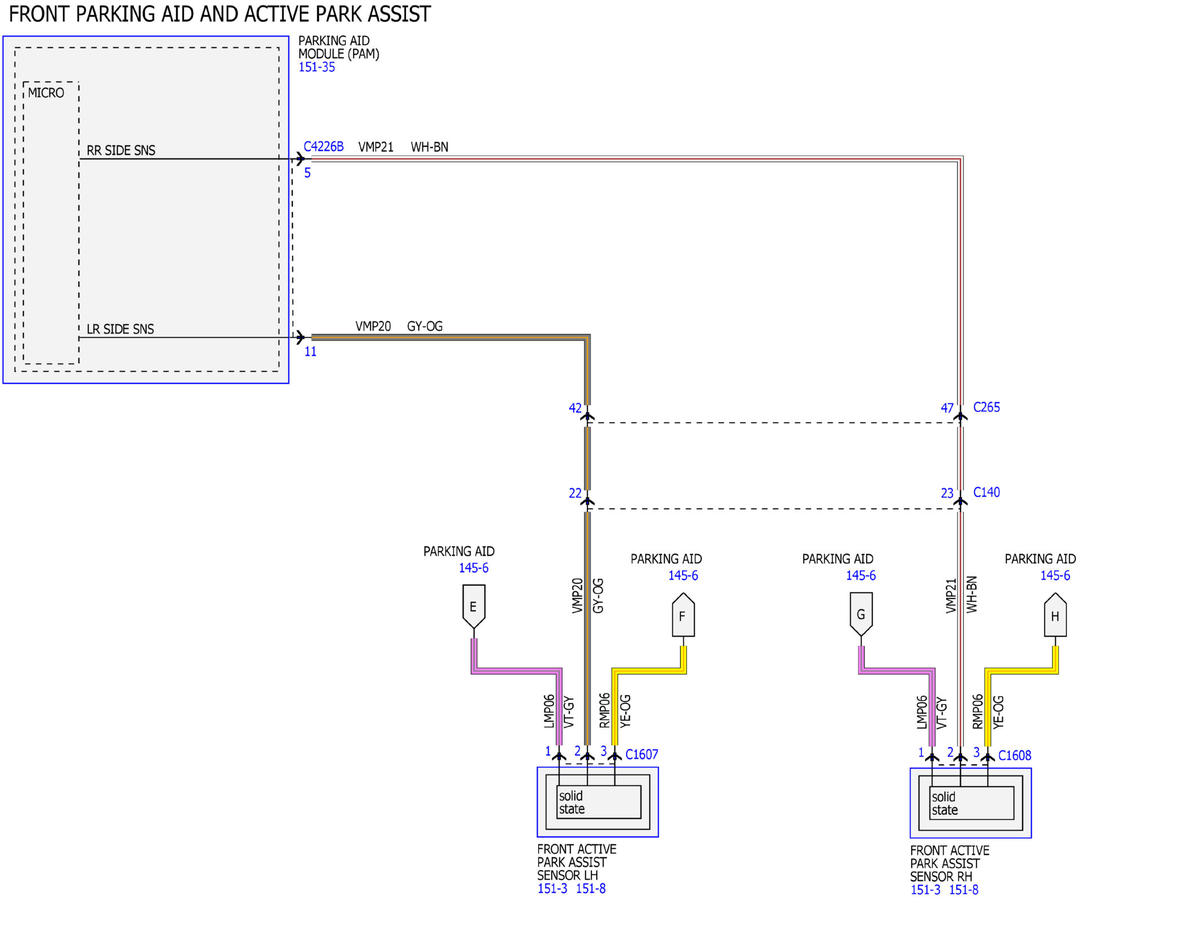

Fig 6: Parking Aid Wiring Diagram (6 Of 15)

GFDWR13924

Courtesy of FORD MOTOR COMPANY

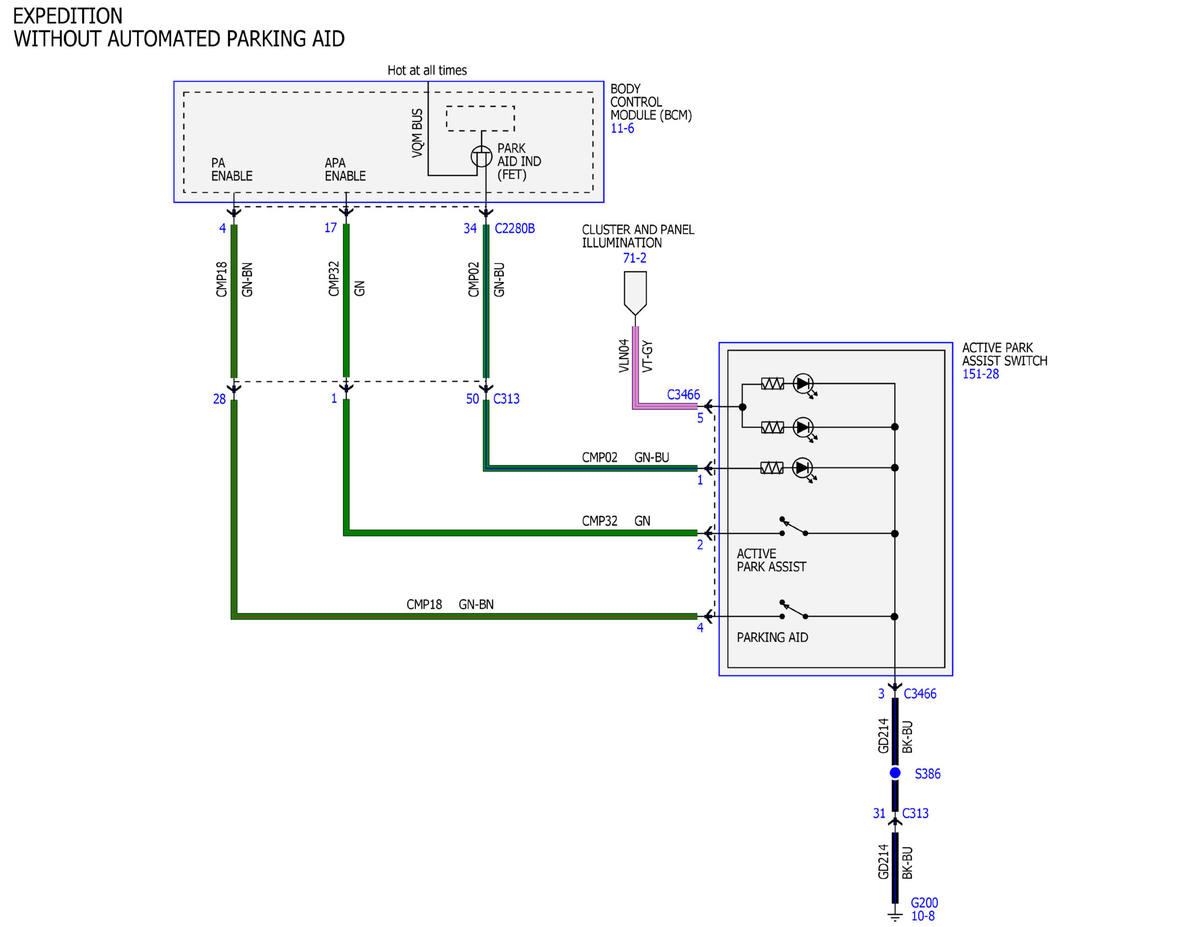

Fig 7: Parking Aid Wiring Diagram (7 Of 15)

GFDWR13925

Courtesy of FORD MOTOR COMPANY

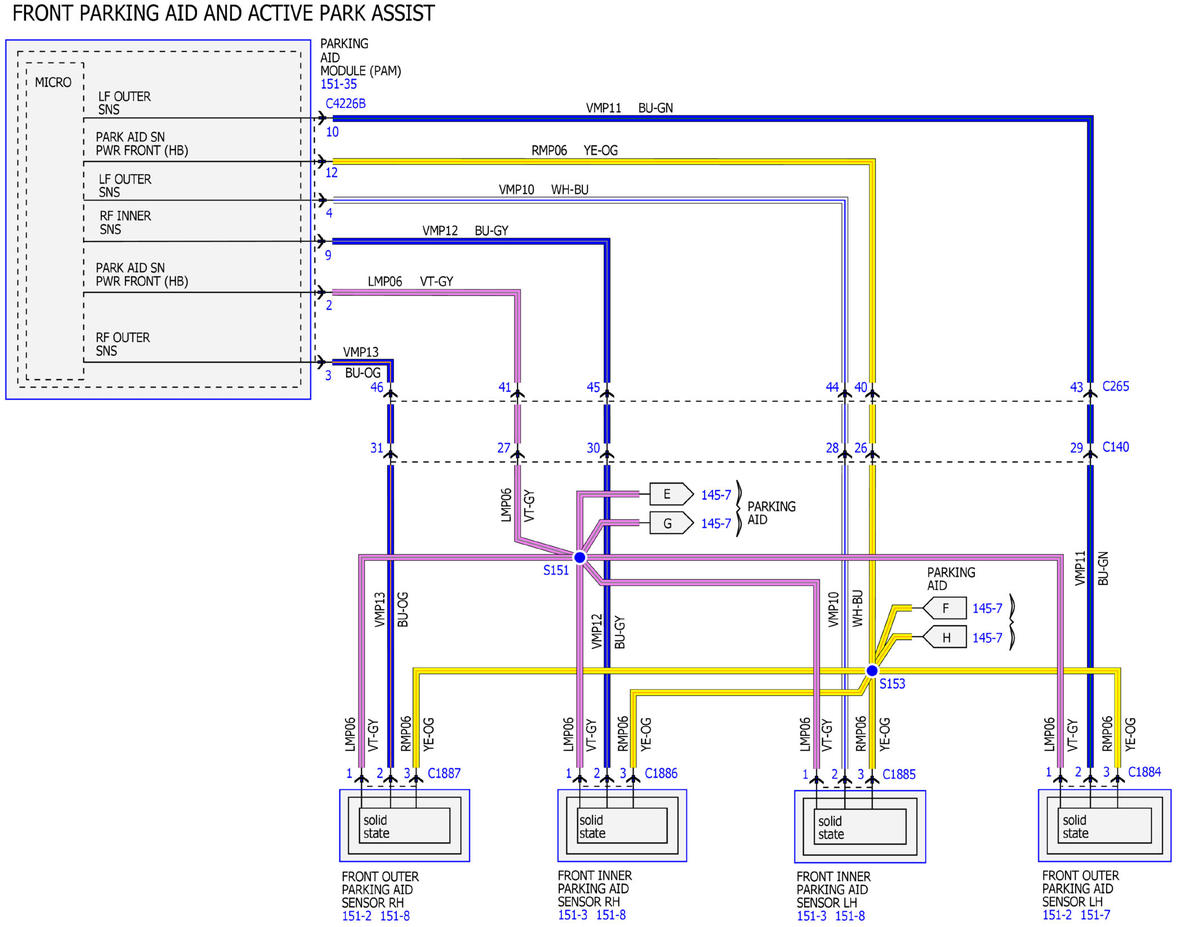

Fig 8: Parking Aid Wiring Diagram (8 Of 15)

GFDWR13926

Courtesy of FORD MOTOR COMPANY

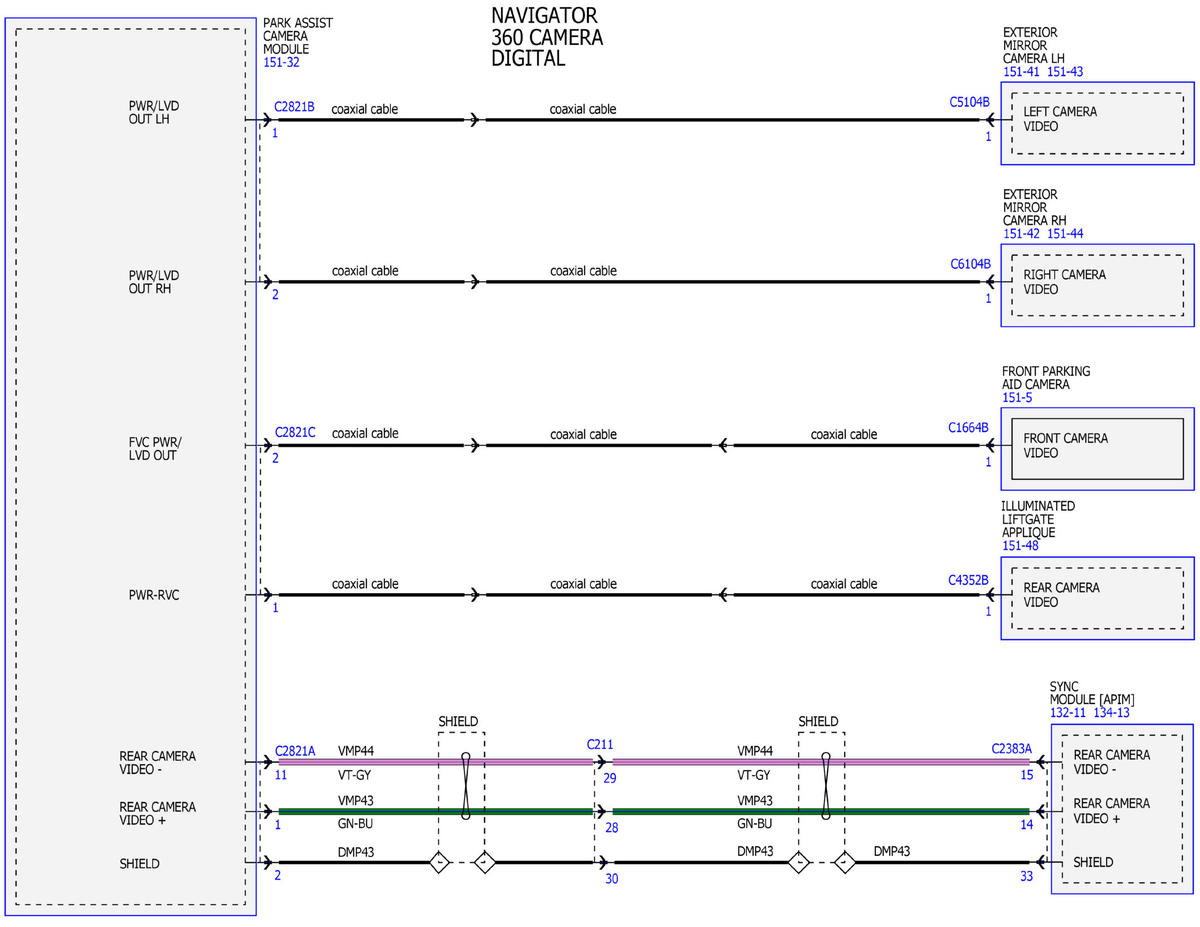

Fig 9: Parking Aid Wiring Diagram (9 Of 15)

GFDWR13927

Courtesy of FORD MOTOR COMPANY

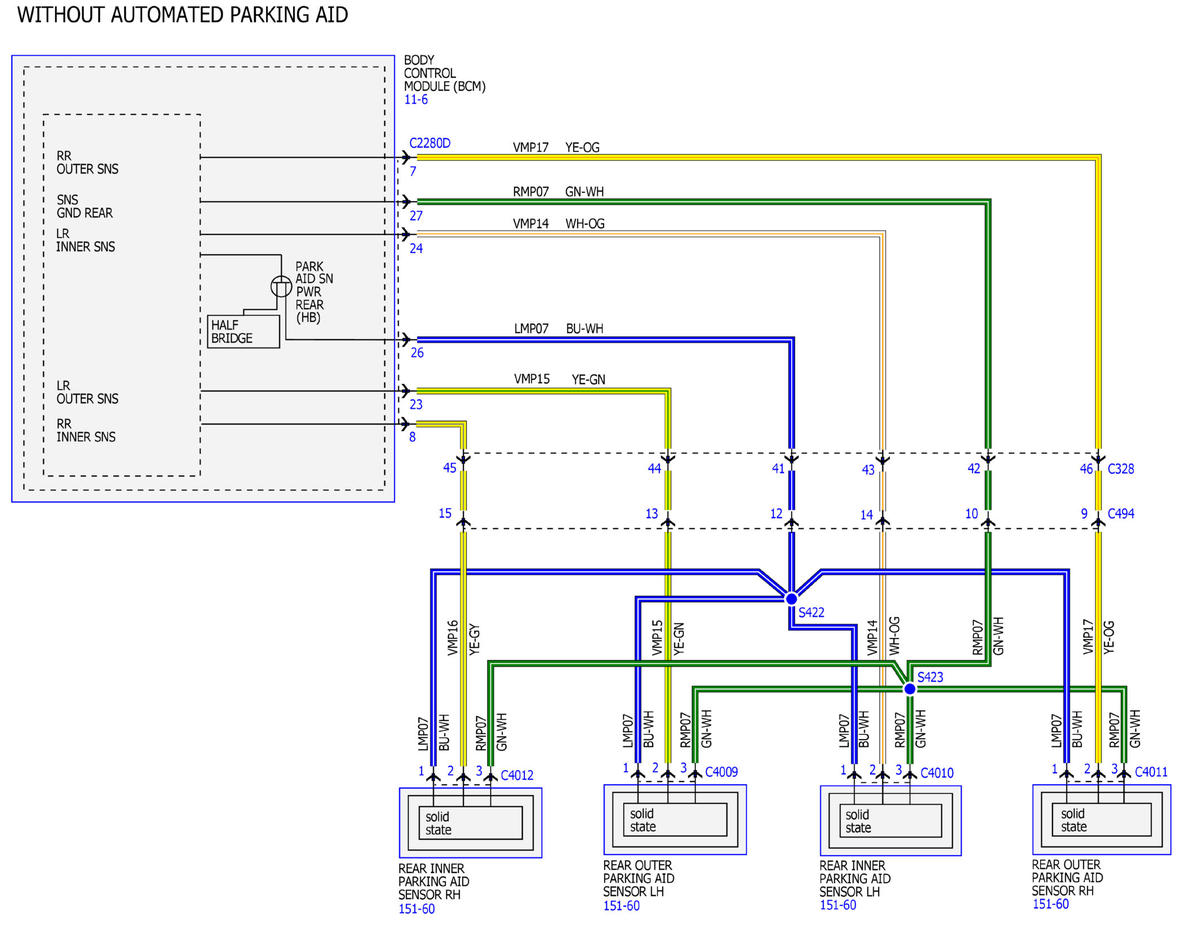

Fig 10: Parking Aid Wiring Diagram (10 Of 15)

GFDWR13928

Courtesy of FORD MOTOR COMPANY

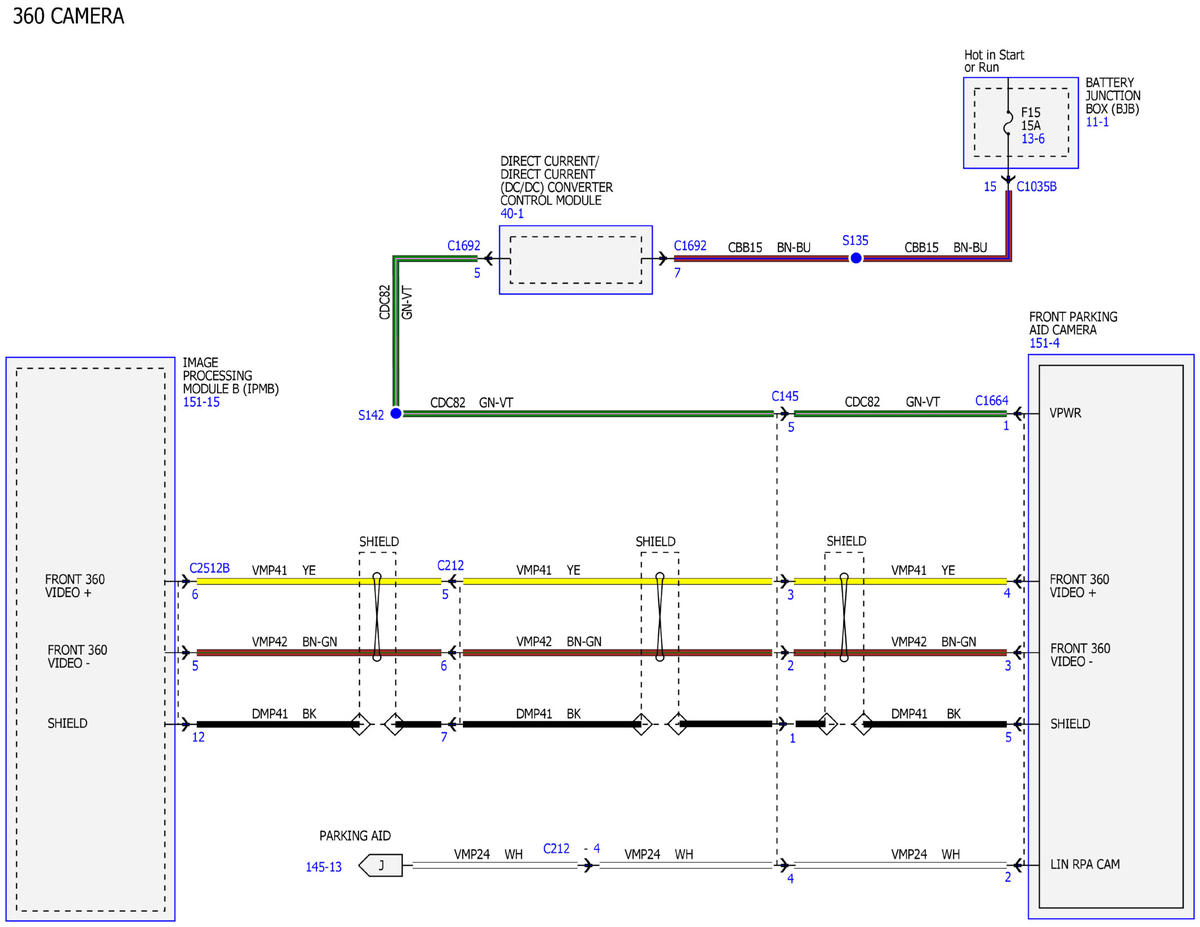

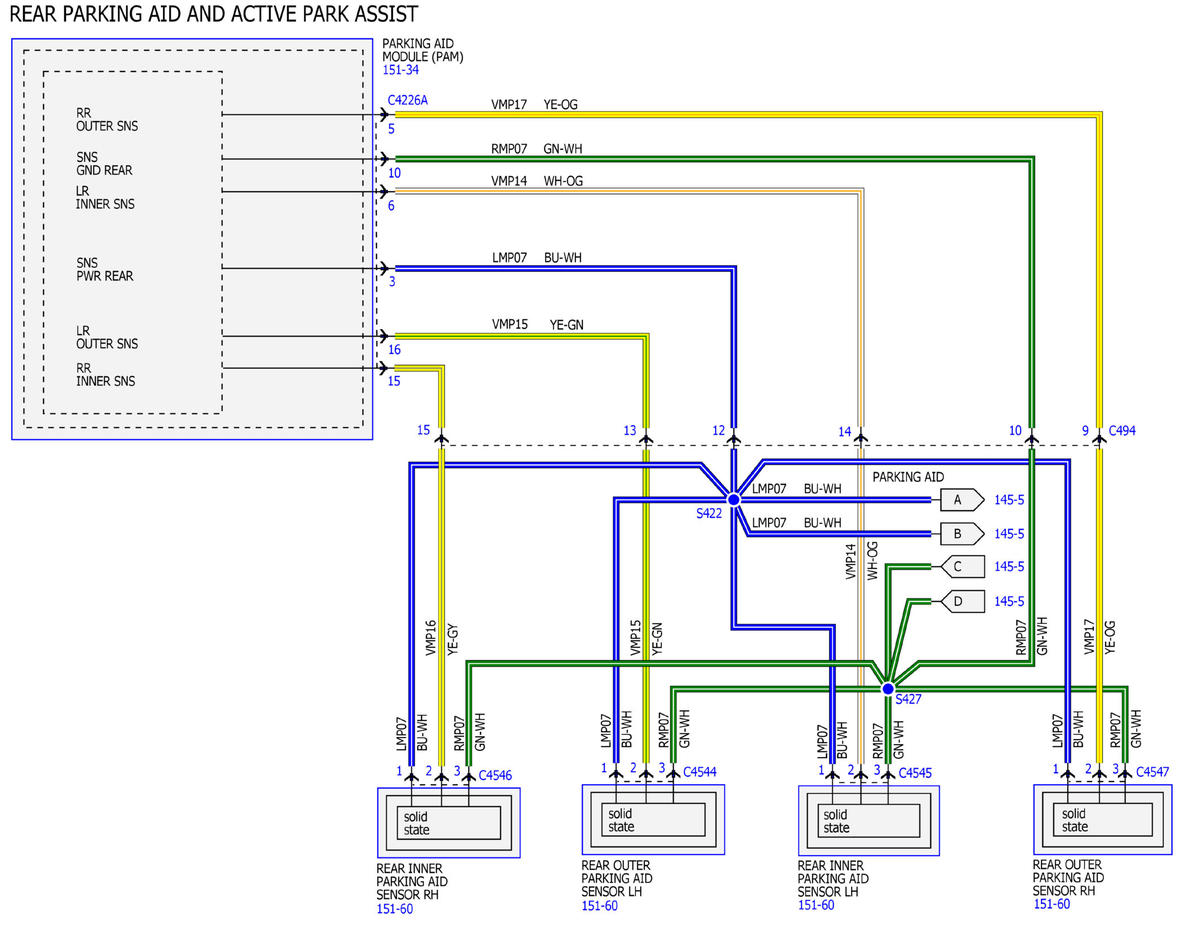

Fig 11: Parking Aid Wiring Diagram (11 Of 15)

GFDWR13929

Courtesy of FORD MOTOR COMPANY

Fig 12: Parking Aid Wiring Diagram (12 Of 15)

GFDWR13930

Courtesy of FORD MOTOR COMPANY

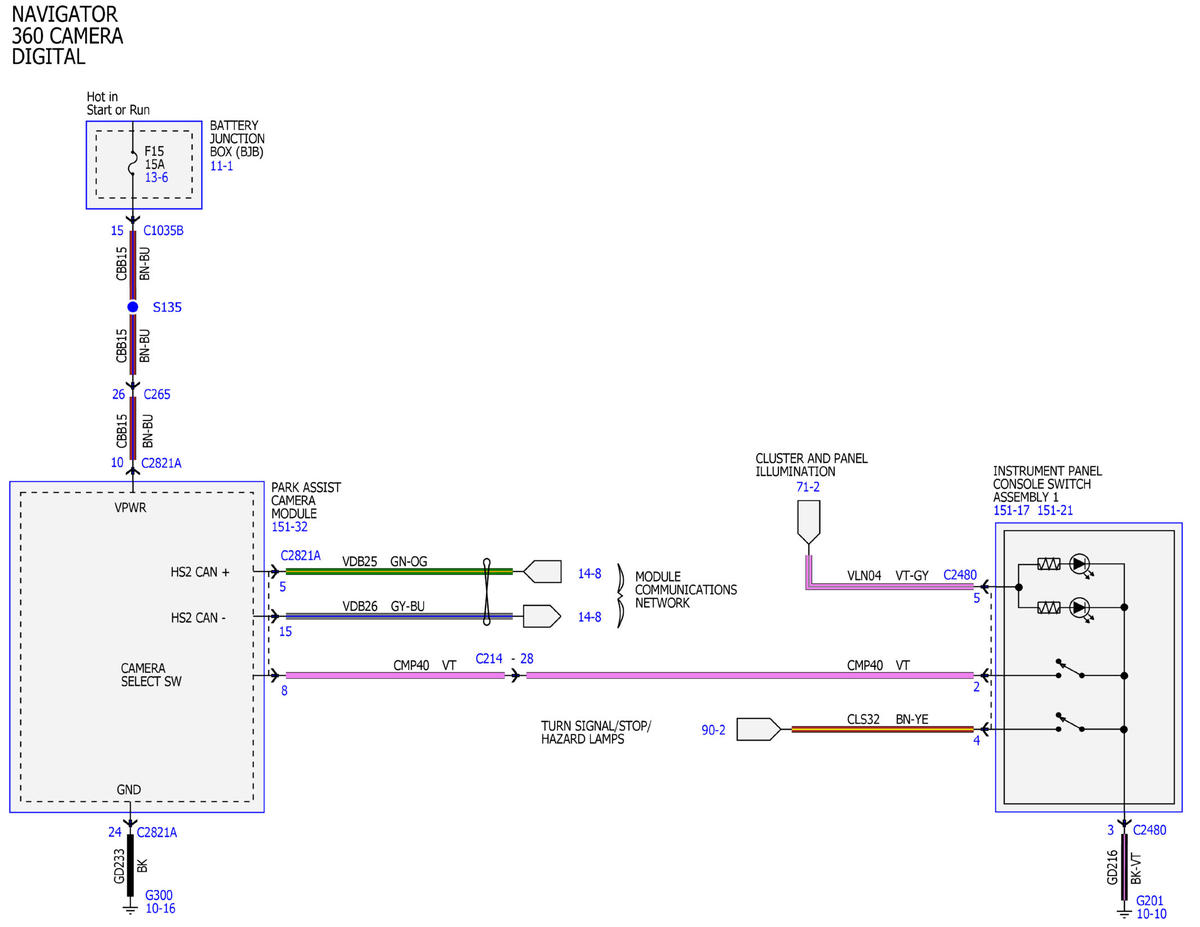

Fig 13: Parking Aid Wiring Diagram (13 Of 15)

GFDWR13931

Courtesy of FORD MOTOR COMPANY

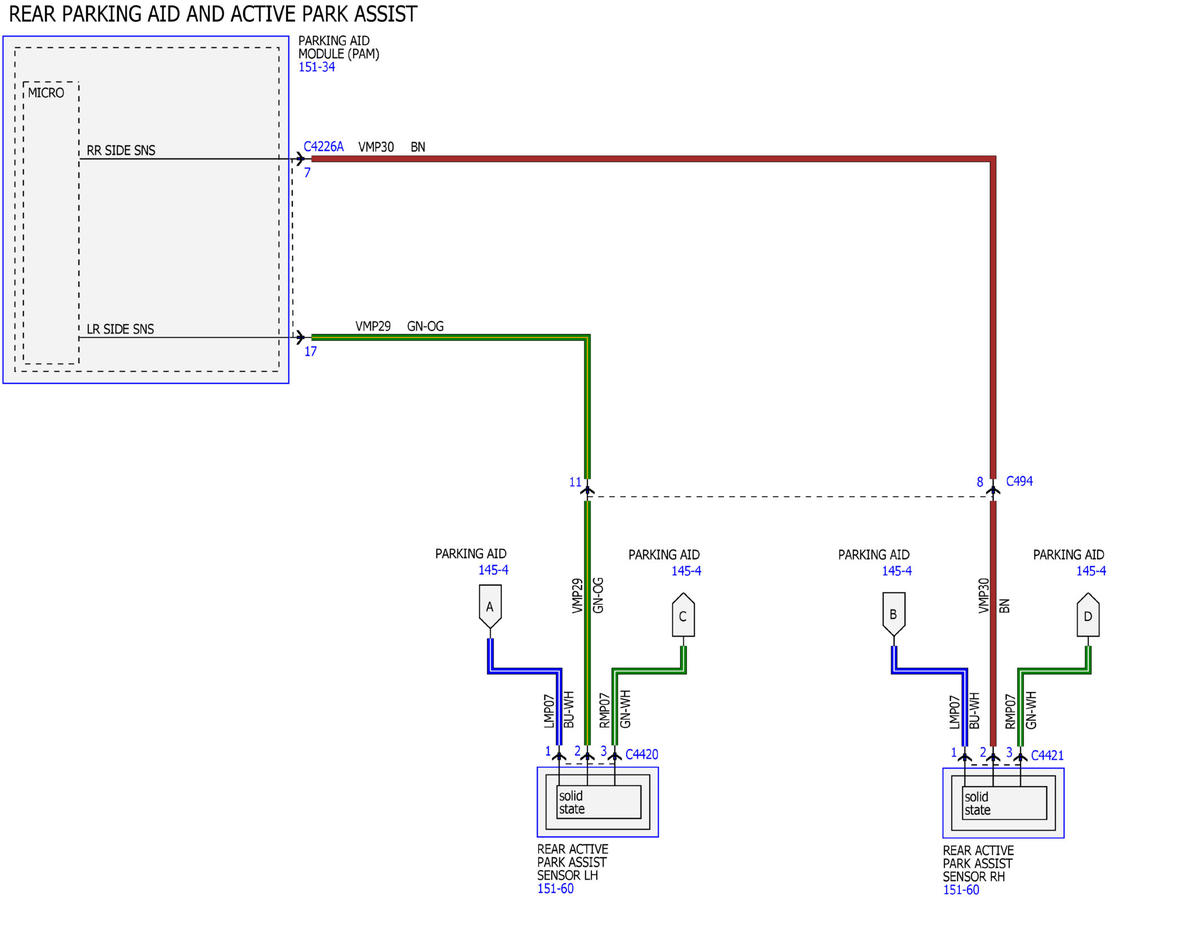

Fig 14: Parking Aid Wiring Diagram (14 Of 15)

GFDWR13932

Courtesy of FORD MOTOR COMPANY

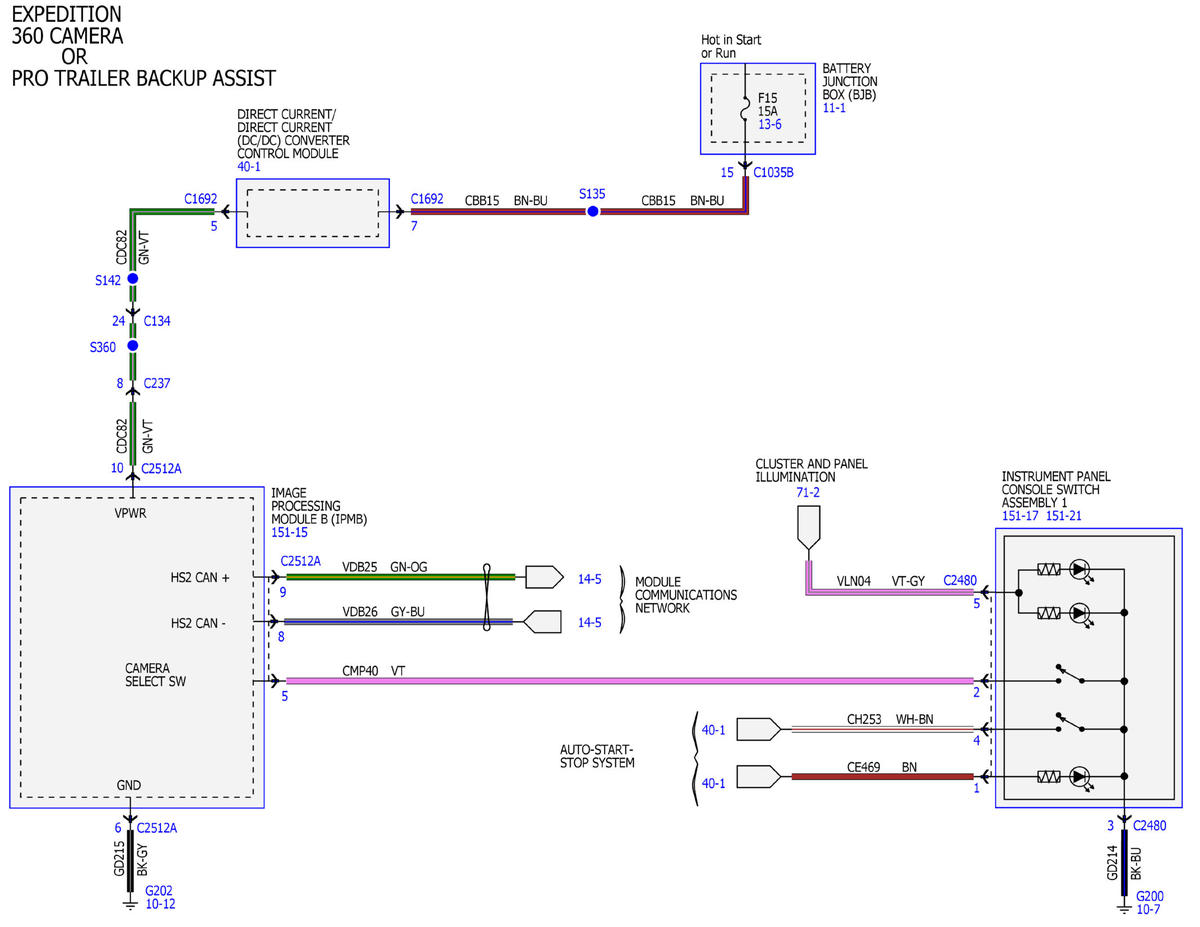

Fig 15: Parking Aid Wiring Diagram (15 Of 15)

GFDWR13933

Courtesy of FORD MOTOR COMPANY
