Glove Compartment: Removal

Glove compartment door

1. Remove the glove compartment hinge pins.

   Courtesy of FORD MOTOR COMPANY

2. Partially lower the glove compartment door.

   Courtesy of FORD MOTOR COMPANY

3. Remove the glove compartment check strap mad release the stops.

   Courtesy of FORD MOTOR COMPANY

4. Rotate the glove compartment on hinge and remove.

   Courtesy of FORD MOTOR COMPANY

   Glove compartment storage bin

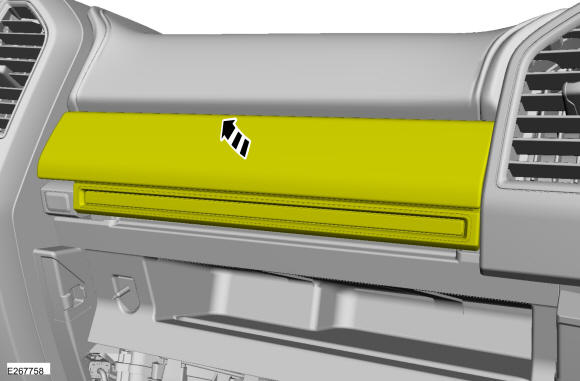

5. Open the upper storage bin.

   Courtesy of FORD MOTOR COMPANY

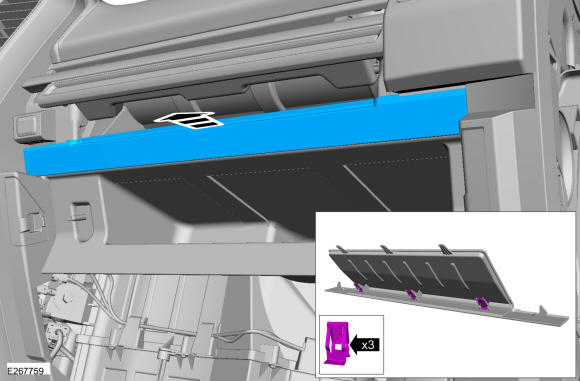

6. Release the clips and remove the storage bin close-out panel.

   Courtesy of FORD MOTOR COMPANY

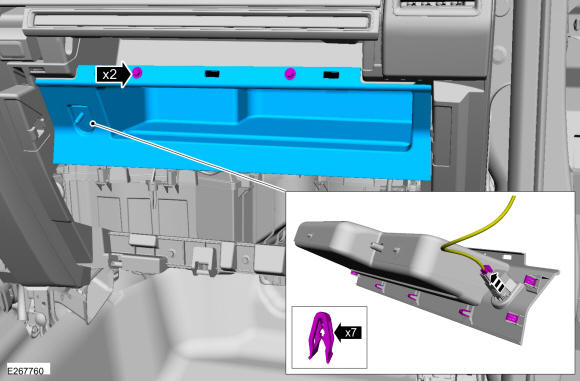

7. Release the clips and remove the glove compartment storage bin.
   • Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
