Front Parking Aid Camera: Removal

  1. Remove the radiator grille. Refer to: Radiator Grille .

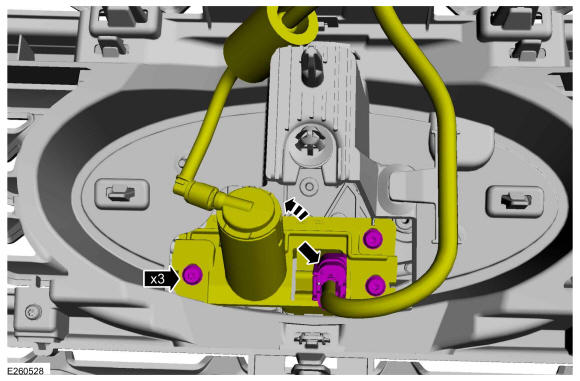

  2. Position the camera bracket aside.

    • Disconnect the front parking aid camera electrical connector.

    • Remove the screws.

    GFD294512Courtesy of FORD MOTOR COMPANY

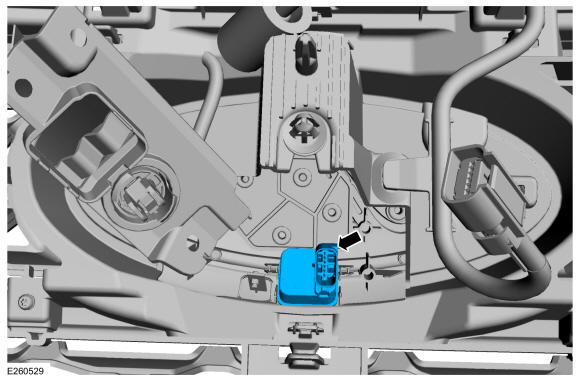

  3. Remove the front parking aid camera.
GFD294513Courtesy of FORD MOTOR COMPANY
