Power Distribution/BCM

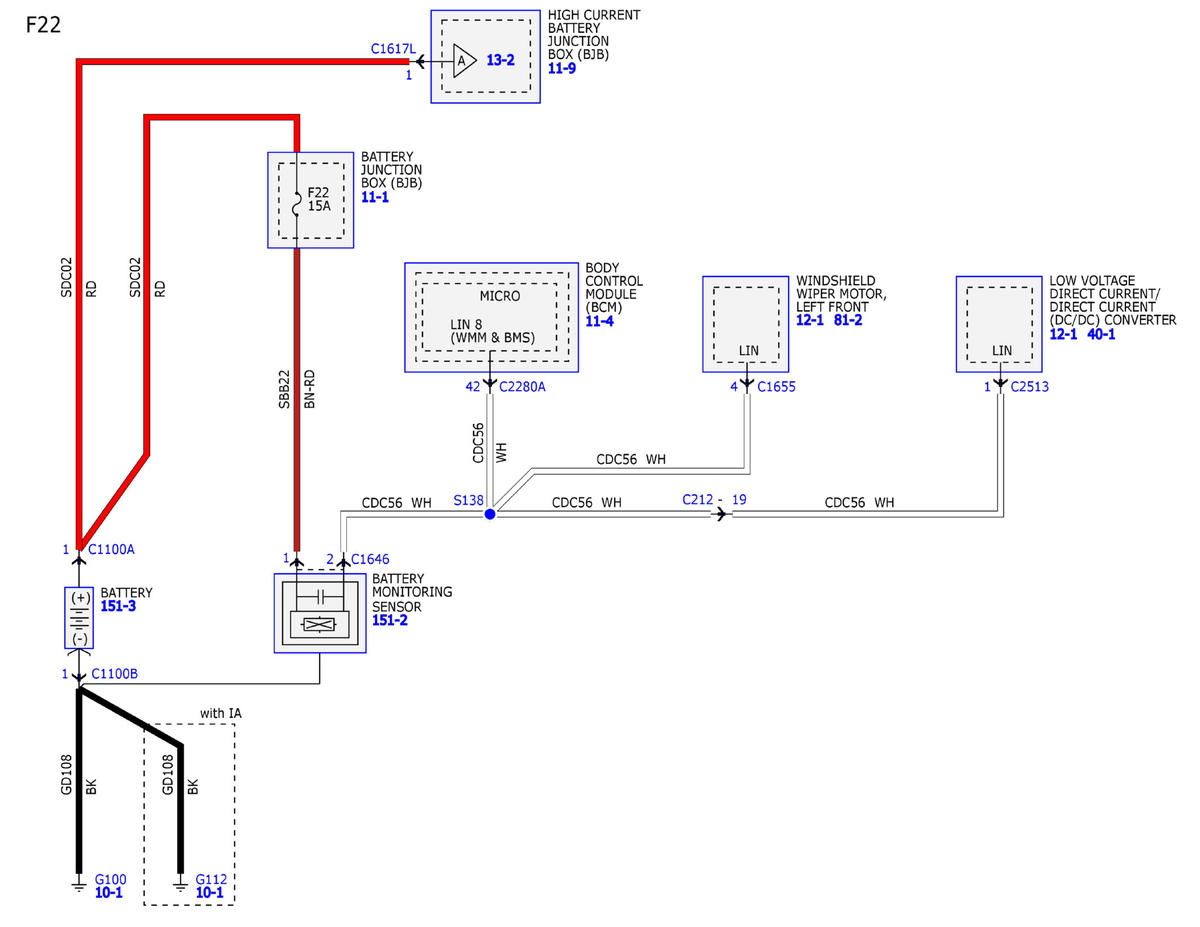

Fig 1: Power Distribution/BCM Wiring Diagram (1 Of 43)

GFDW97548

Courtesy of FORD MOTOR COMPANY

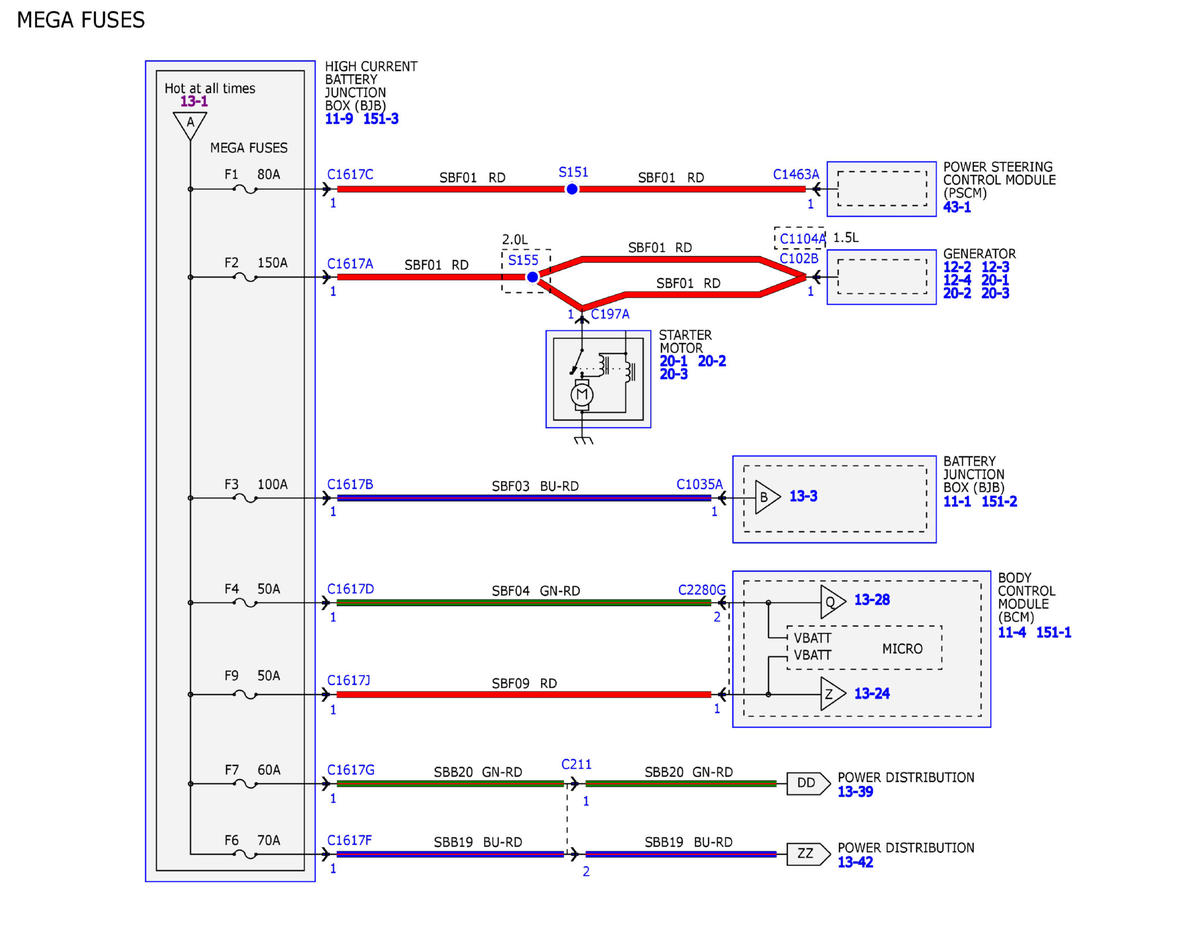

Fig 2: Power Distribution/BCM Wiring Diagram (2 Of 43)

GFDW97549

Courtesy of FORD MOTOR COMPANY

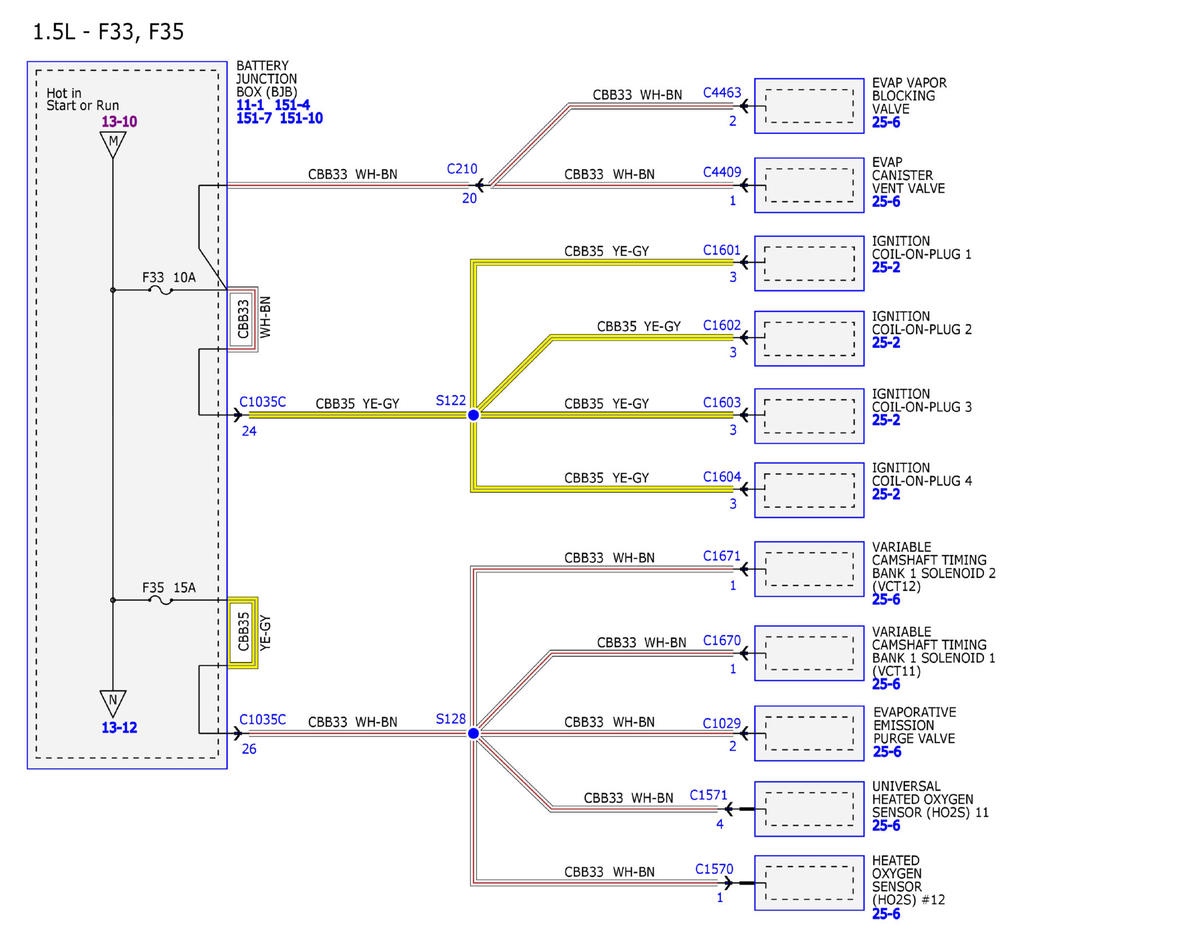

Fig 3: Power Distribution/BCM Wiring Diagram (3 Of 43)

GFDW97550

Courtesy of FORD MOTOR COMPANY

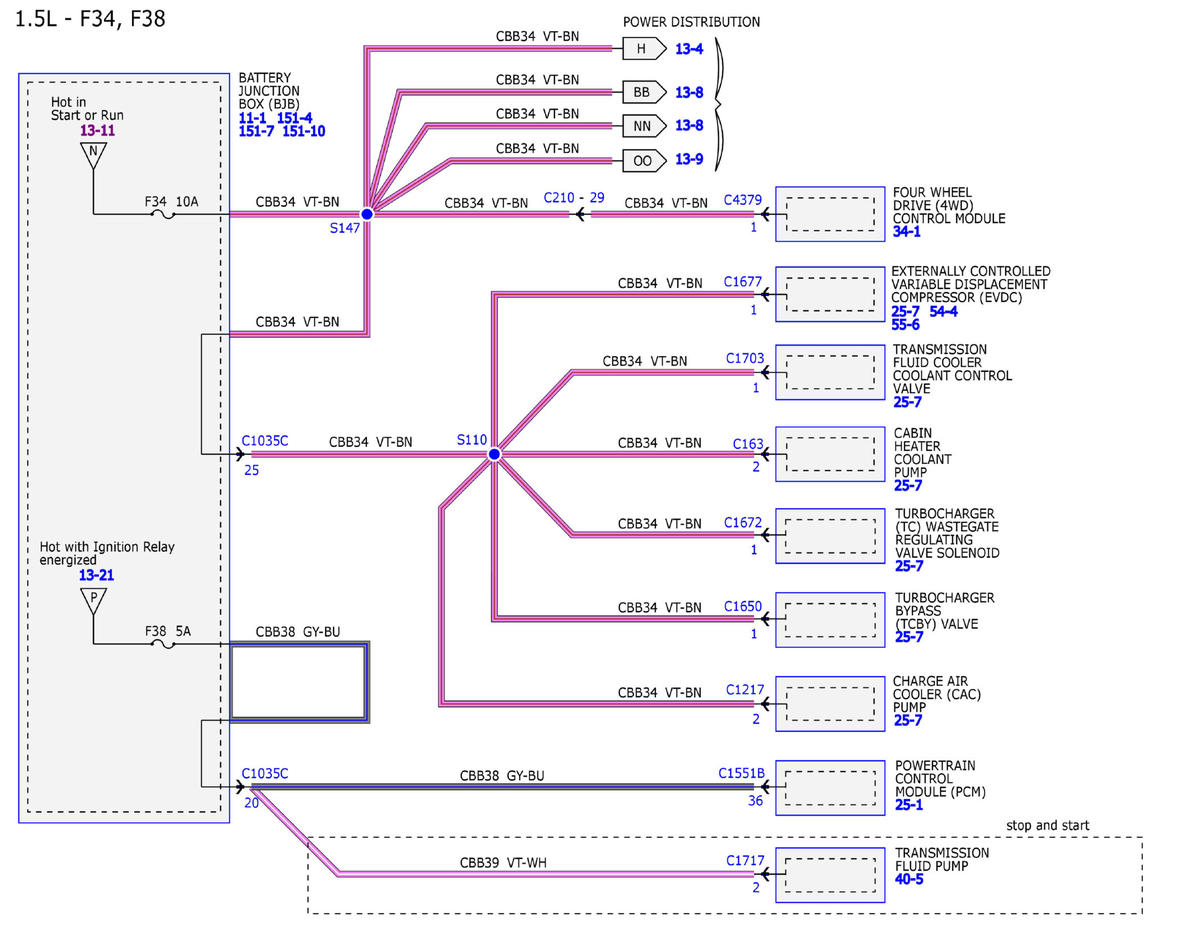

Fig 4: Power Distribution/BCM Wiring Diagram (4 Of 43)

GFDW97551

Courtesy of FORD MOTOR COMPANY

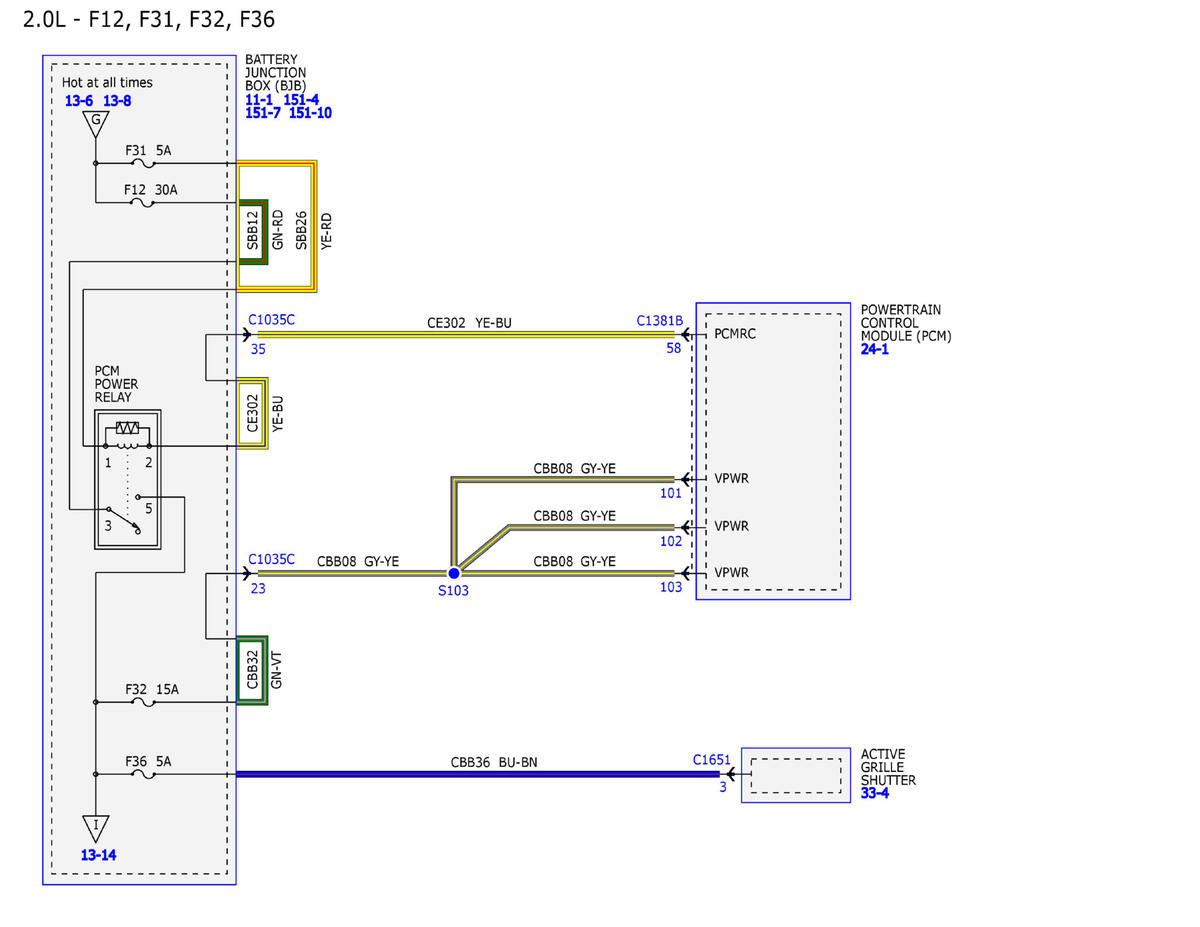

Fig 5: Power Distribution/BCM Wiring Diagram (5 Of 43)

GFDW97552

Courtesy of FORD MOTOR COMPANY

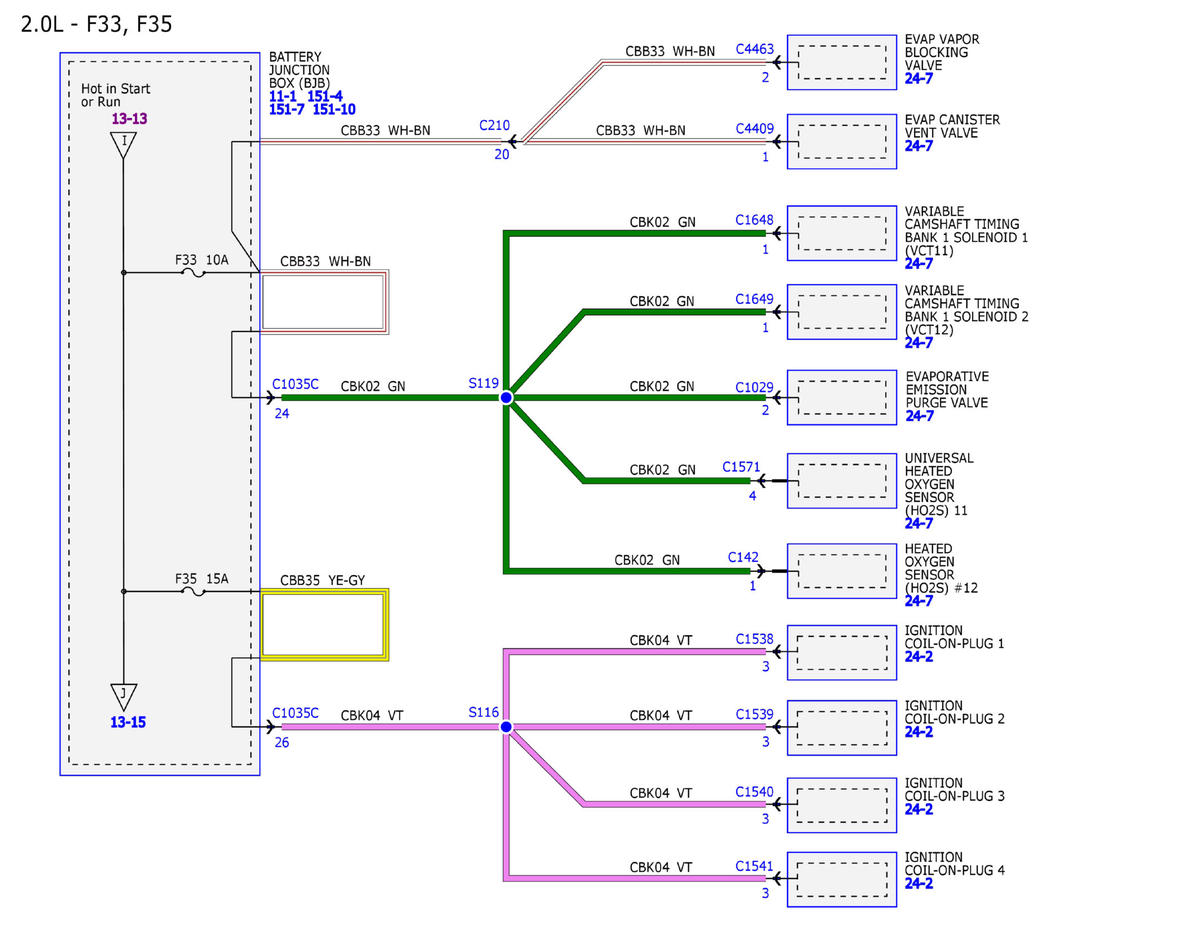

Fig 6: Power Distribution/BCM Wiring Diagram (6 Of 43)

GFDW97553

Courtesy of FORD MOTOR COMPANY

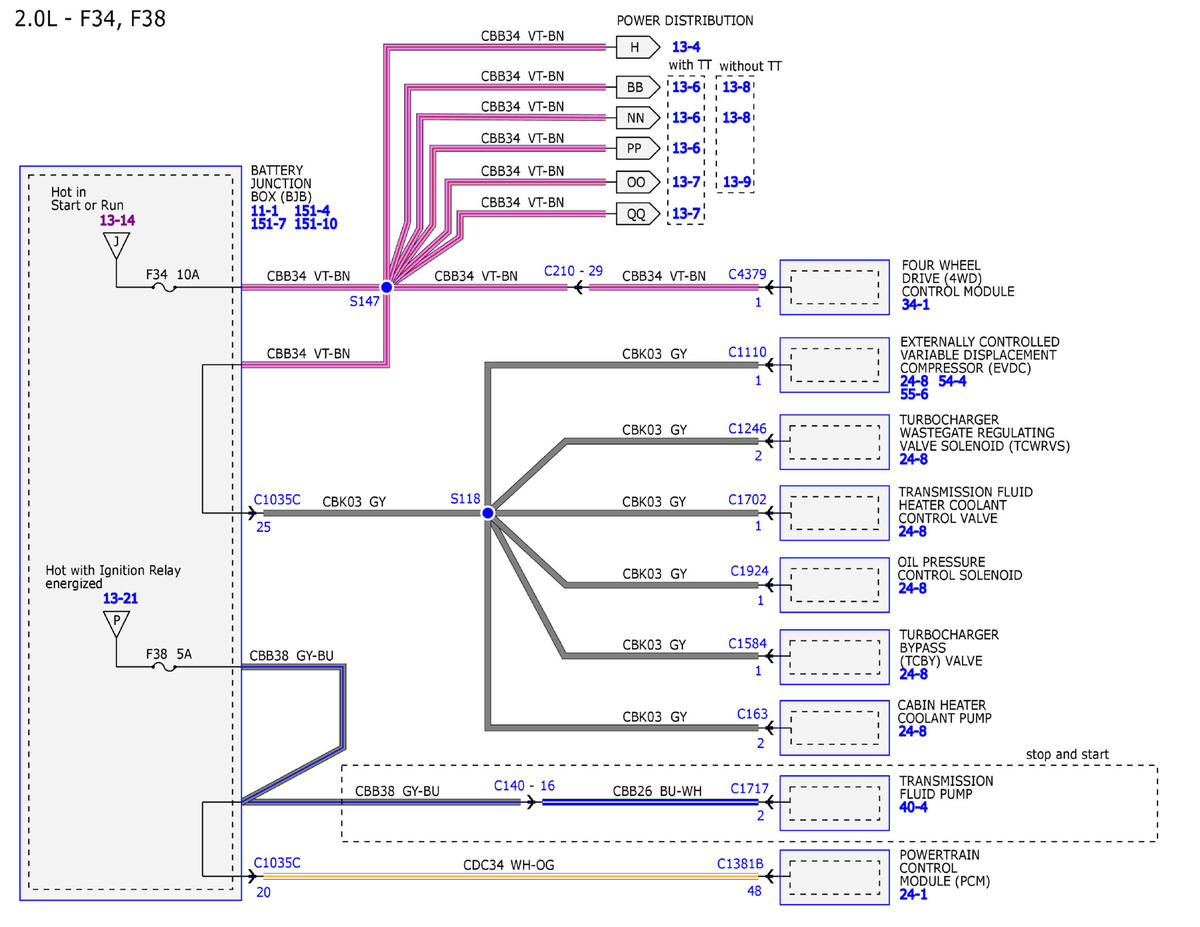

Fig 7: Power Distribution/BCM Wiring Diagram (7 Of 43)

GFDW97554

Courtesy of FORD MOTOR COMPANY

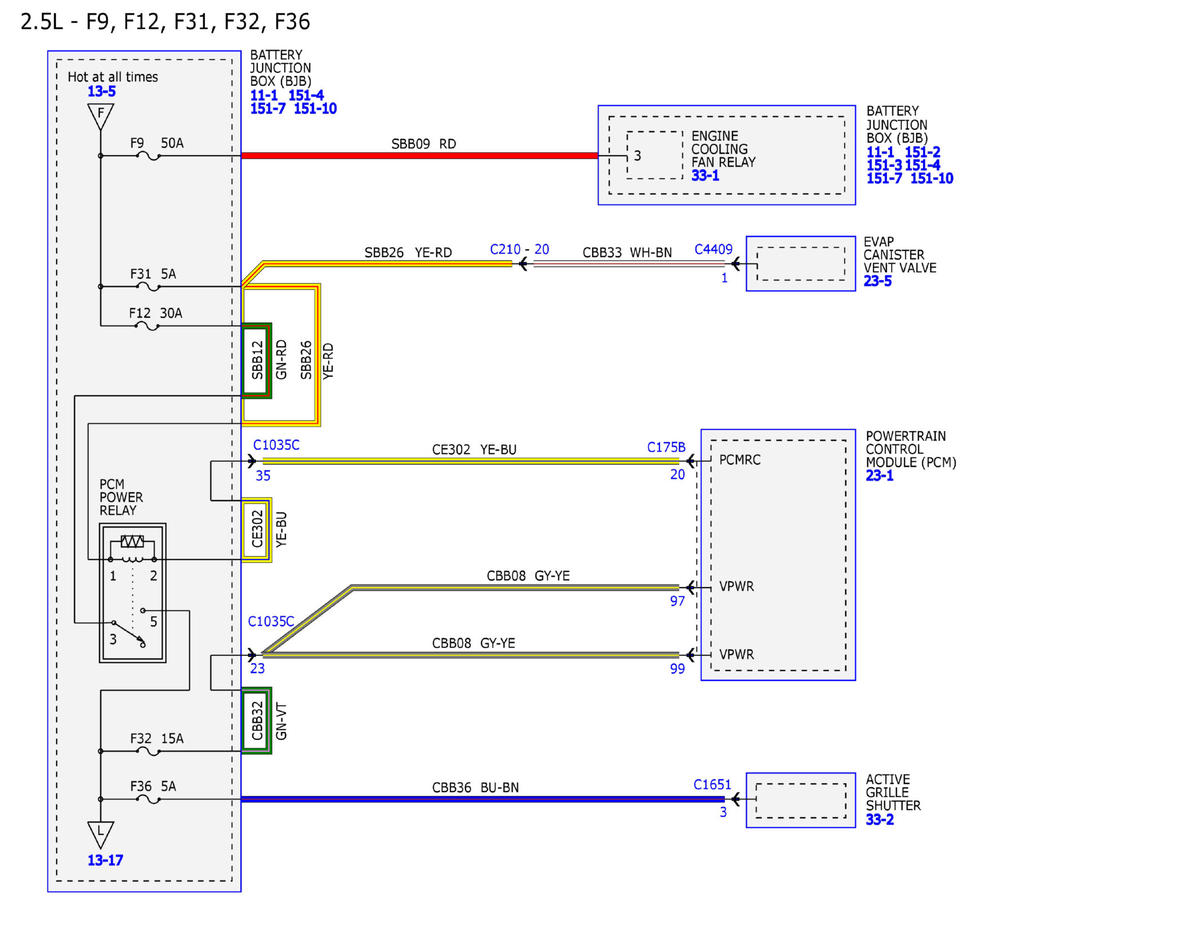

Fig 8: Power Distribution/BCM Wiring Diagram (8 Of 43)

GFDW97555

Courtesy of FORD MOTOR COMPANY

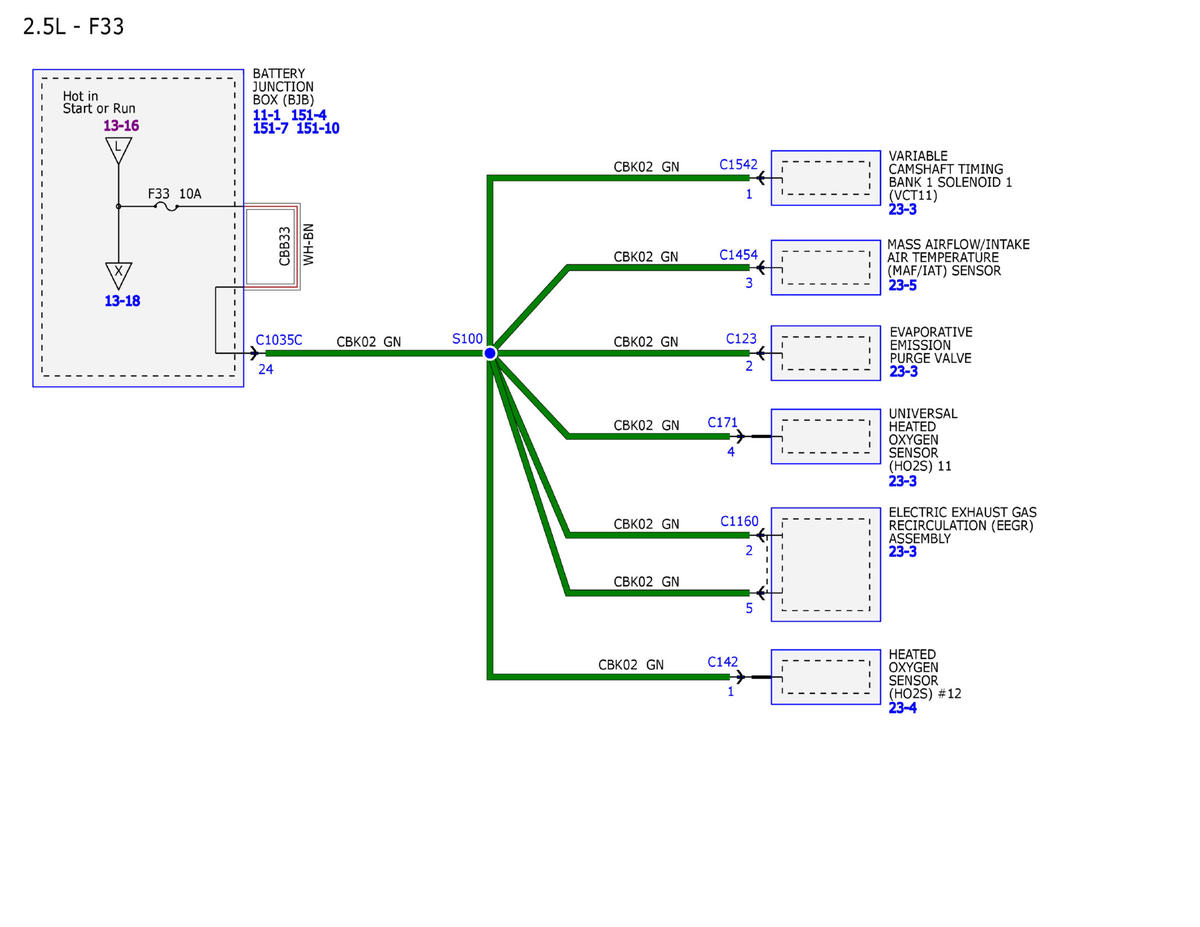

Fig 9: Power Distribution/BCM Wiring Diagram (9 Of 43)

GFDW97556

Courtesy of FORD MOTOR COMPANY

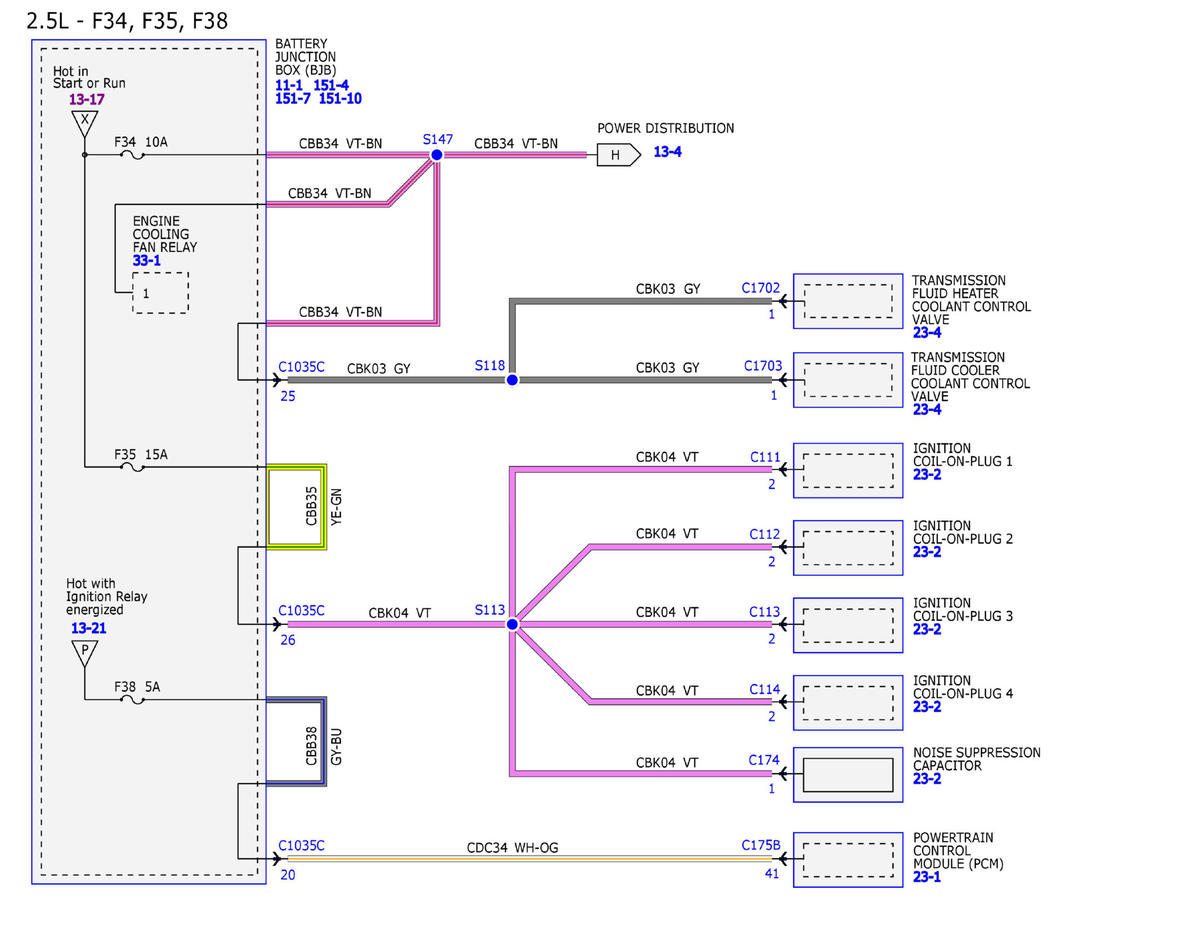

Fig 10: Power Distribution/BCM Wiring Diagram (10 Of 43)

GFDW97557

Courtesy of FORD MOTOR COMPANY

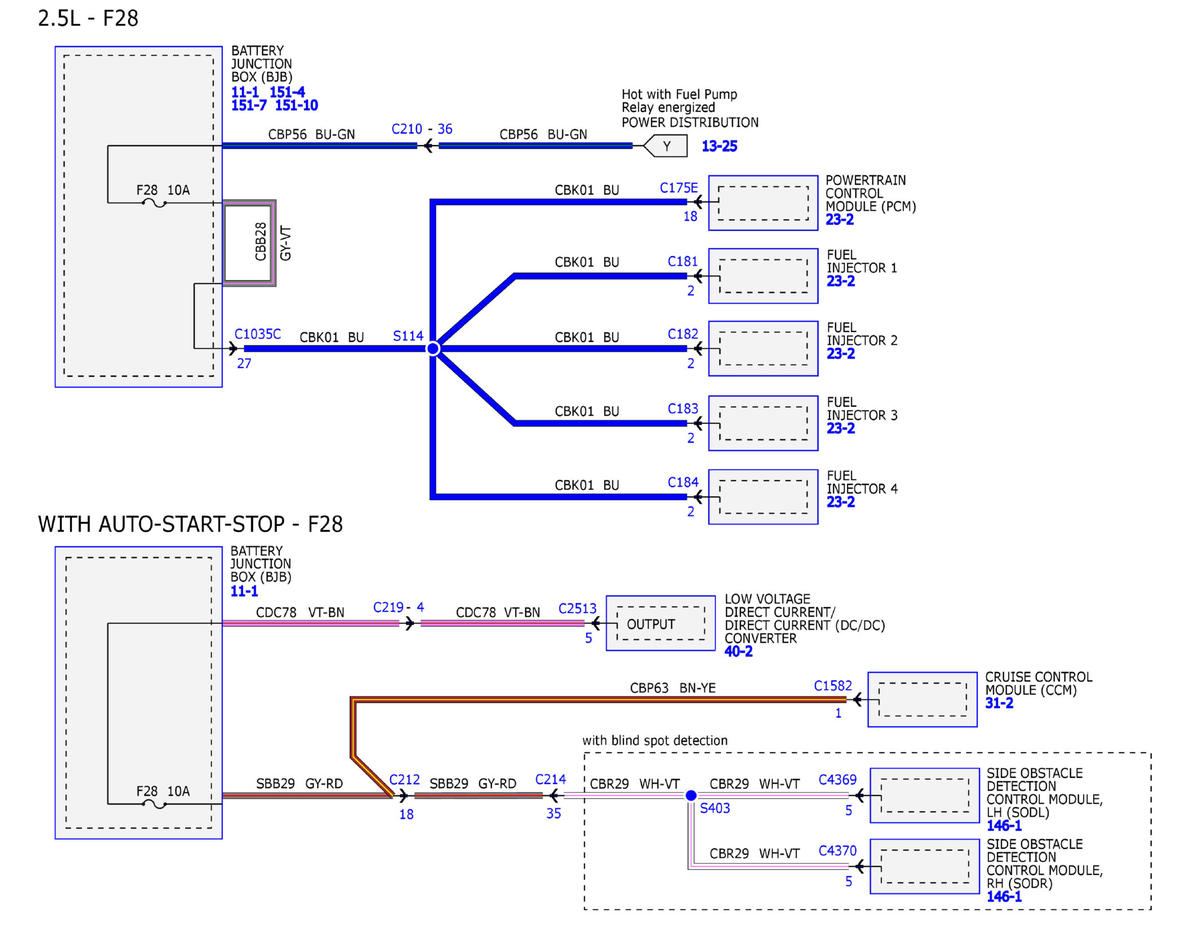

Fig 11: Power Distribution/BCM Wiring Diagram (11 Of 43)

GFDW97558

Courtesy of FORD MOTOR COMPANY

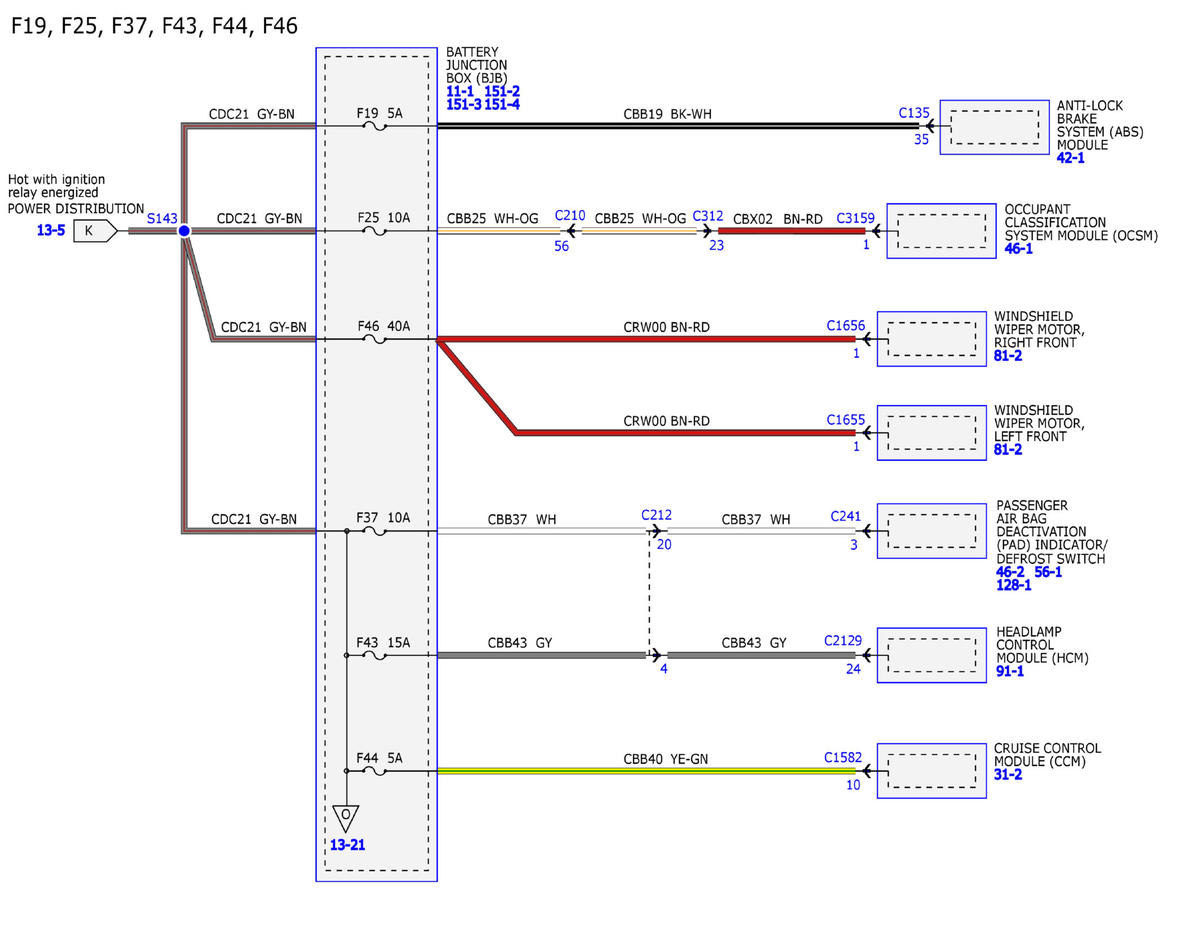

Fig 12: Power Distribution/BCM Wiring Diagram (12 Of 43)

GFDW97559

Courtesy of FORD MOTOR COMPANY

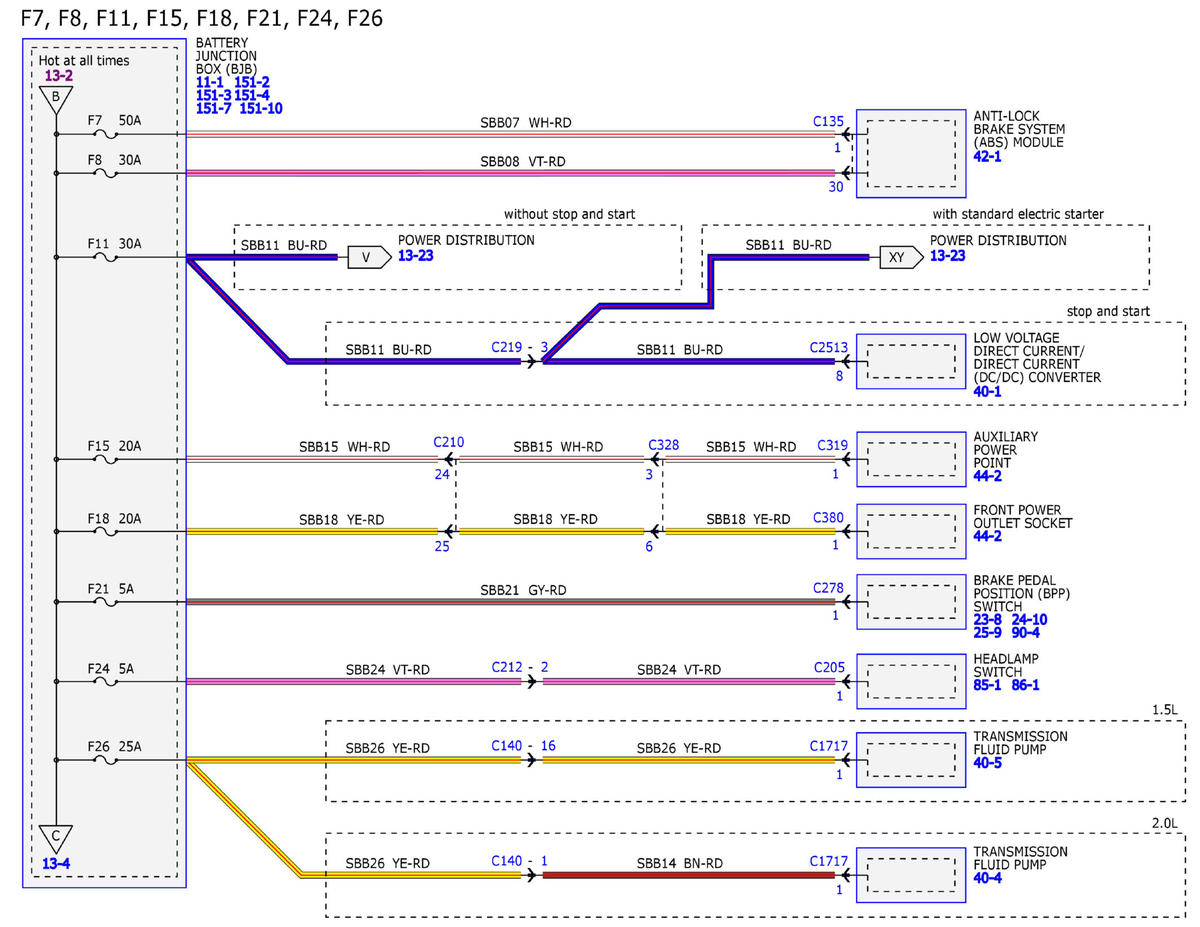

Fig 13: Power Distribution/BCM Wiring Diagram (13 Of 43)

GFDW97560

Courtesy of FORD MOTOR COMPANY

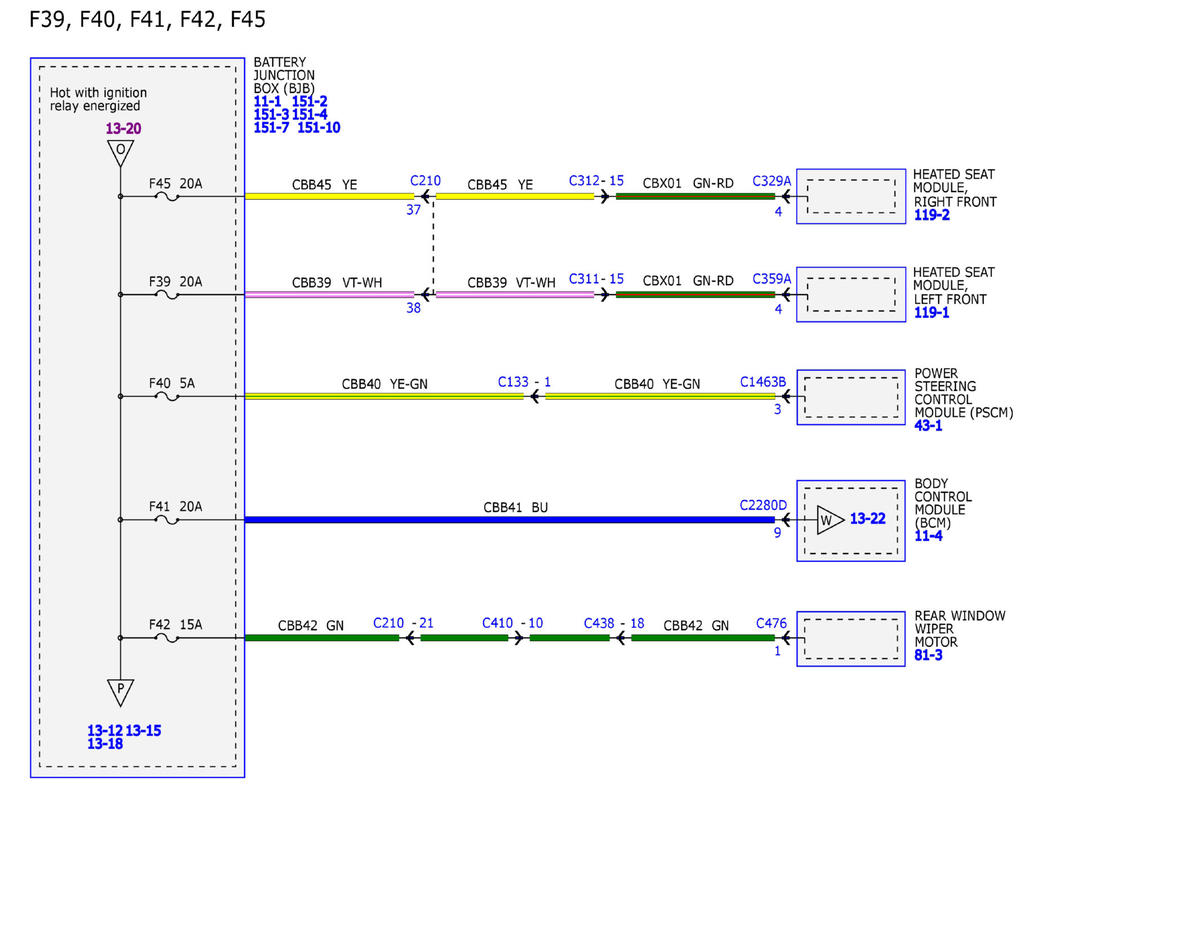

Fig 14: Power Distribution/BCM Wiring Diagram (14 Of 43)

GFDW97561

Courtesy of FORD MOTOR COMPANY

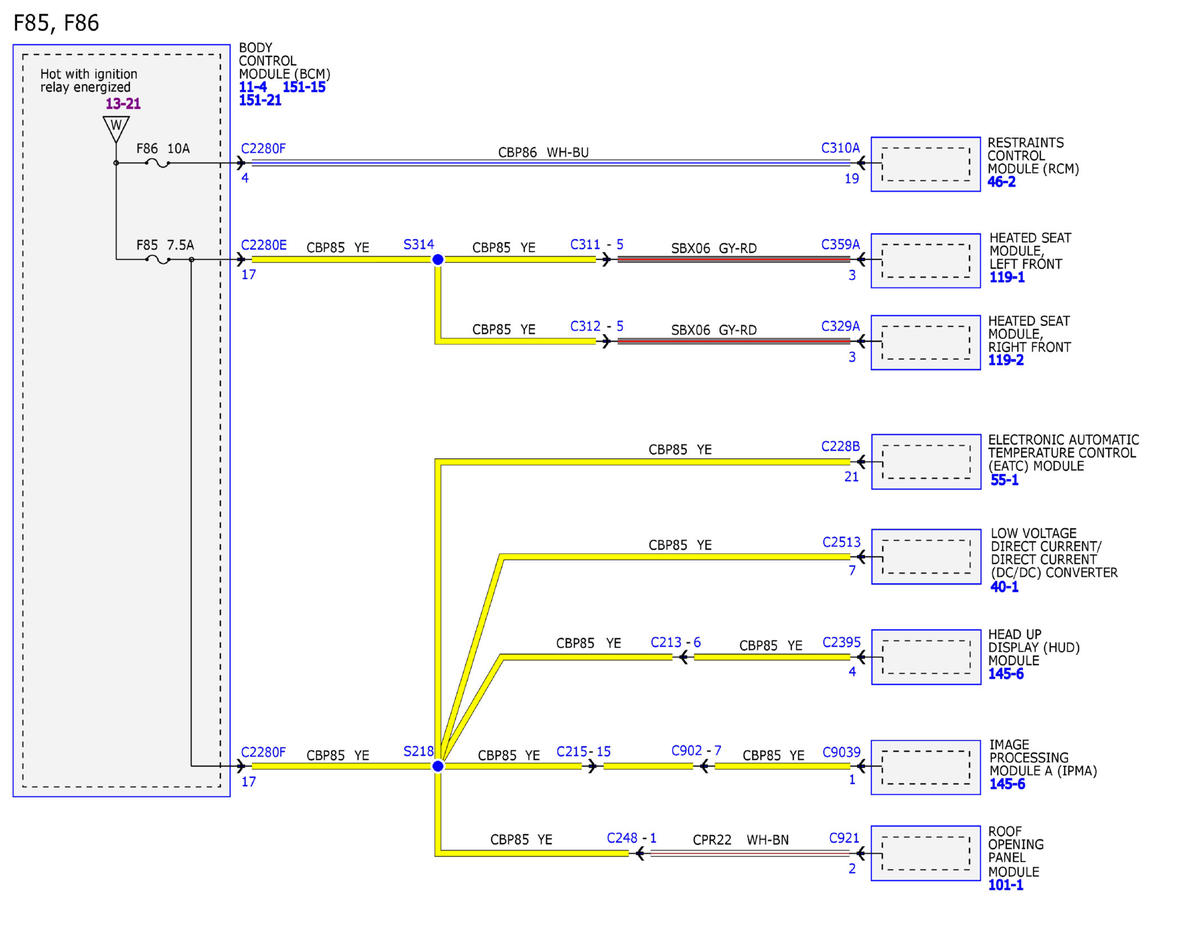

Fig 15: Power Distribution/BCM Wiring Diagram (15 Of 43)

GFDW97562

Courtesy of FORD MOTOR COMPANY

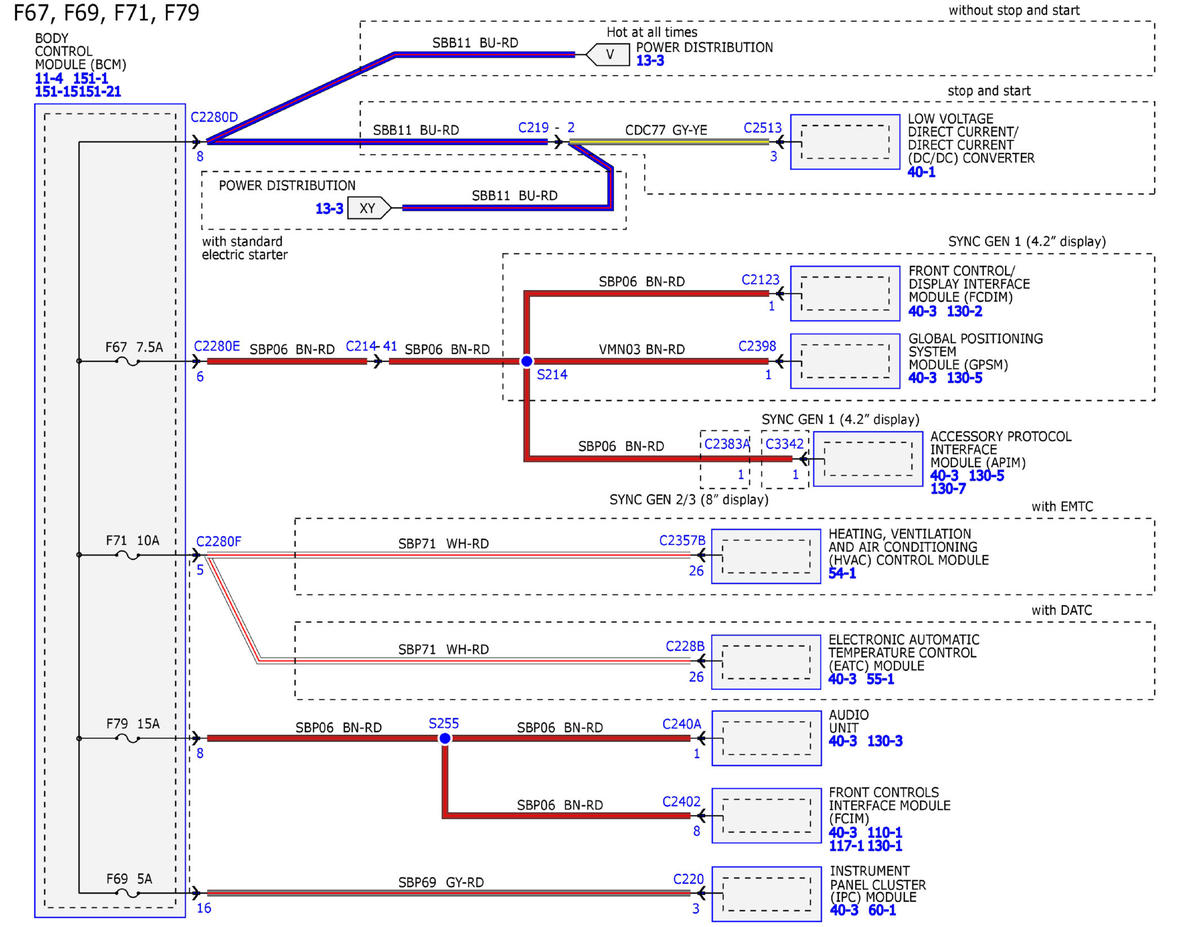

Fig 16: Power Distribution/BCM Wiring Diagram (16 Of 43)

GFDW97563

Courtesy of FORD MOTOR COMPANY

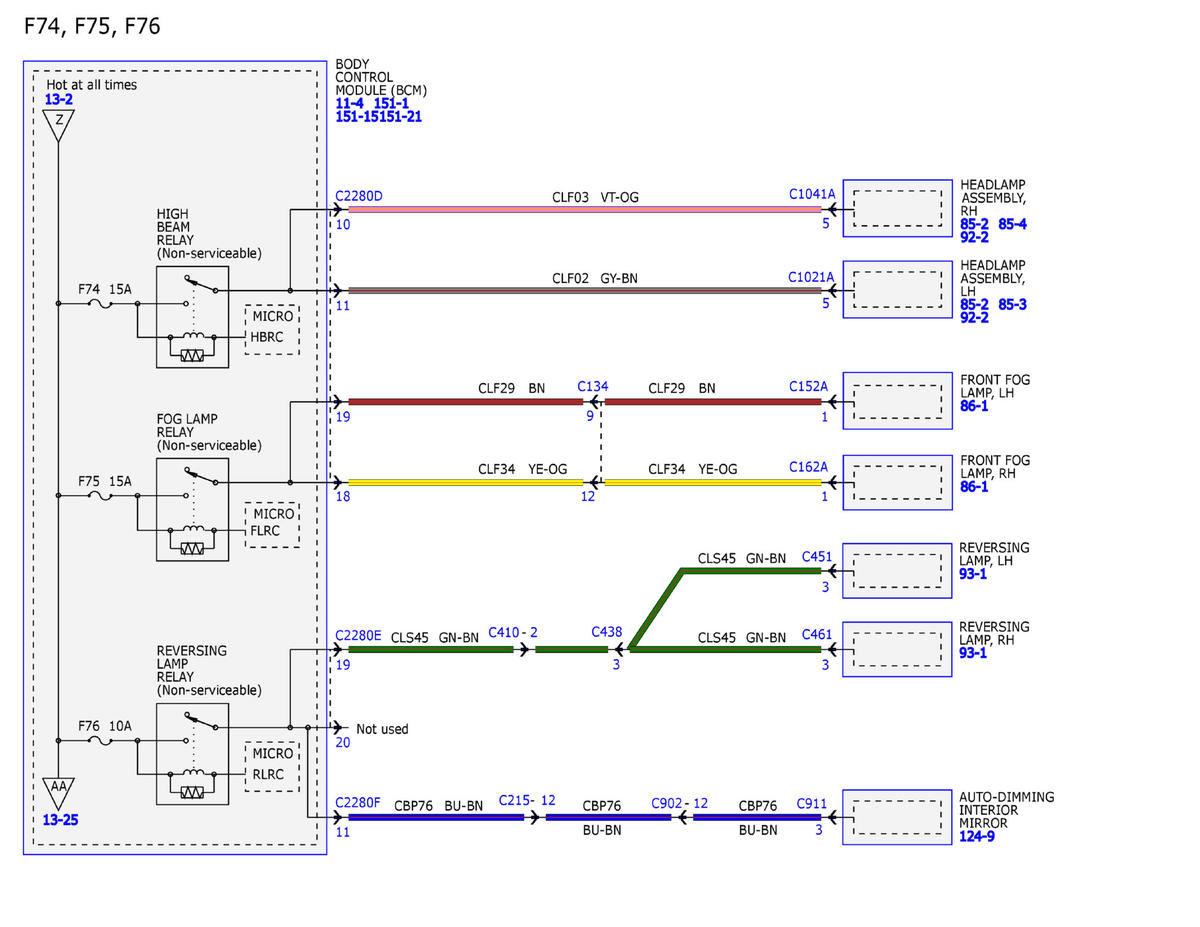

Fig 17: Power Distribution/BCM Wiring Diagram (17 Of 43)

GFDW97564

Courtesy of FORD MOTOR COMPANY

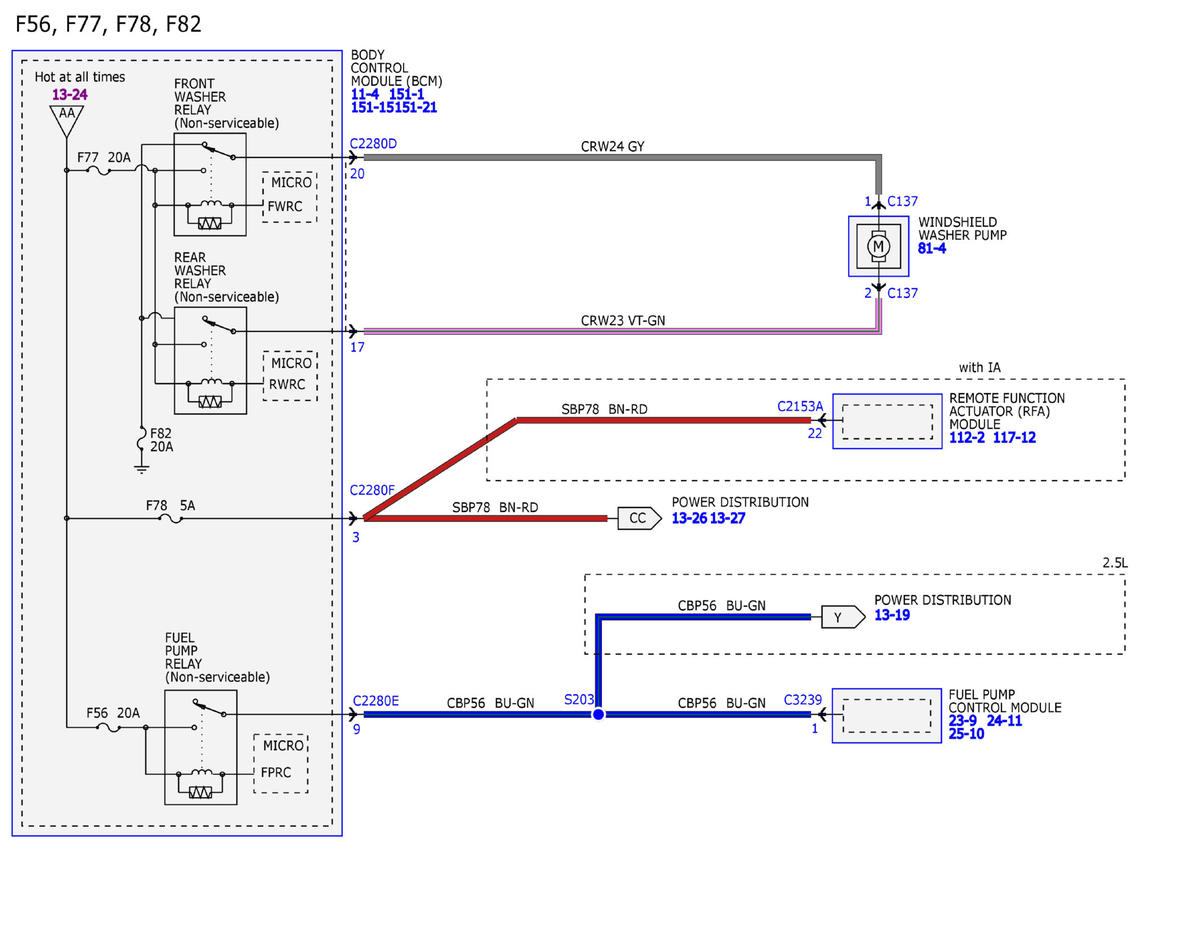

Fig 18: Power Distribution/BCM Wiring Diagram (18 Of 43)

GFDW97565

Courtesy of FORD MOTOR COMPANY

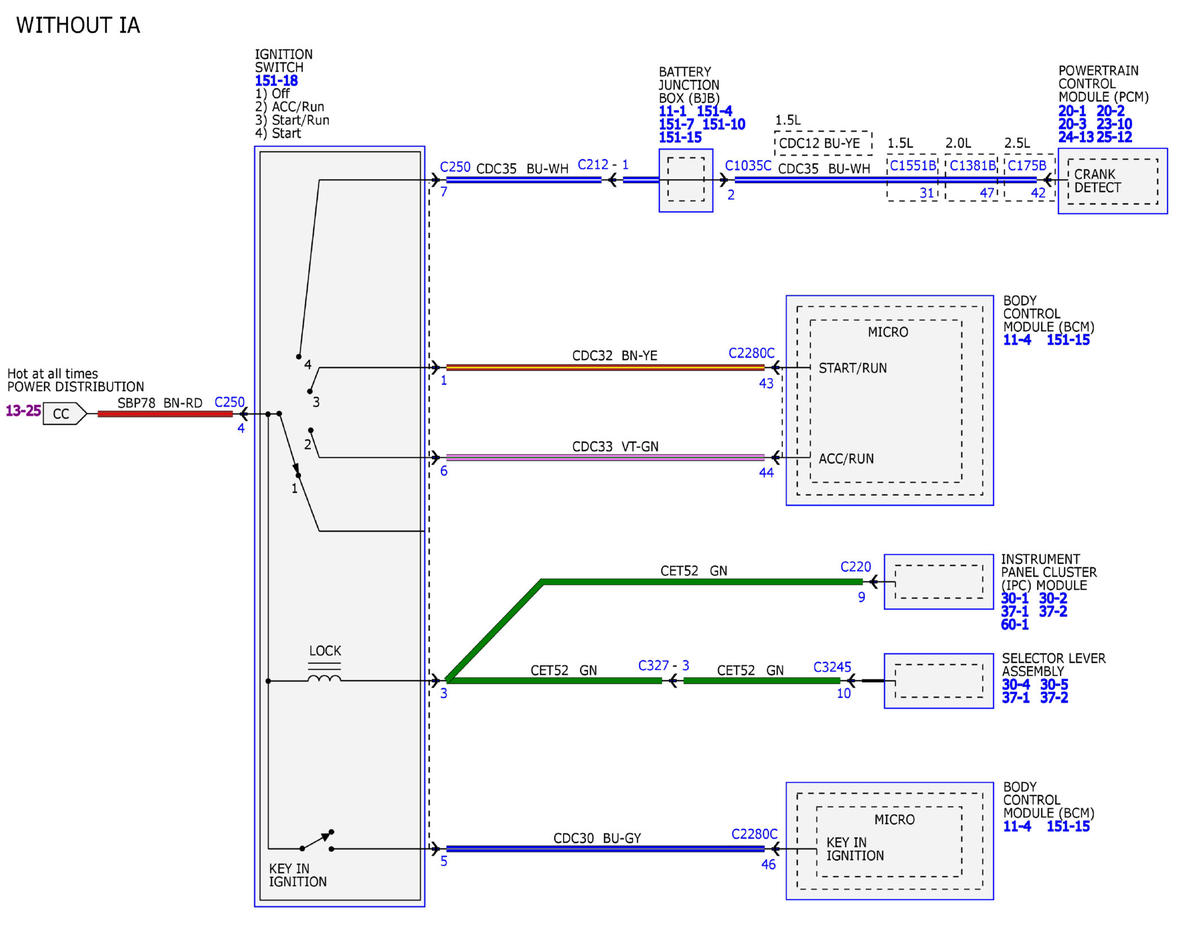

Fig 19: Power Distribution/BCM Wiring Diagram (19 Of 43)

GFDW97566

Courtesy of FORD MOTOR COMPANY

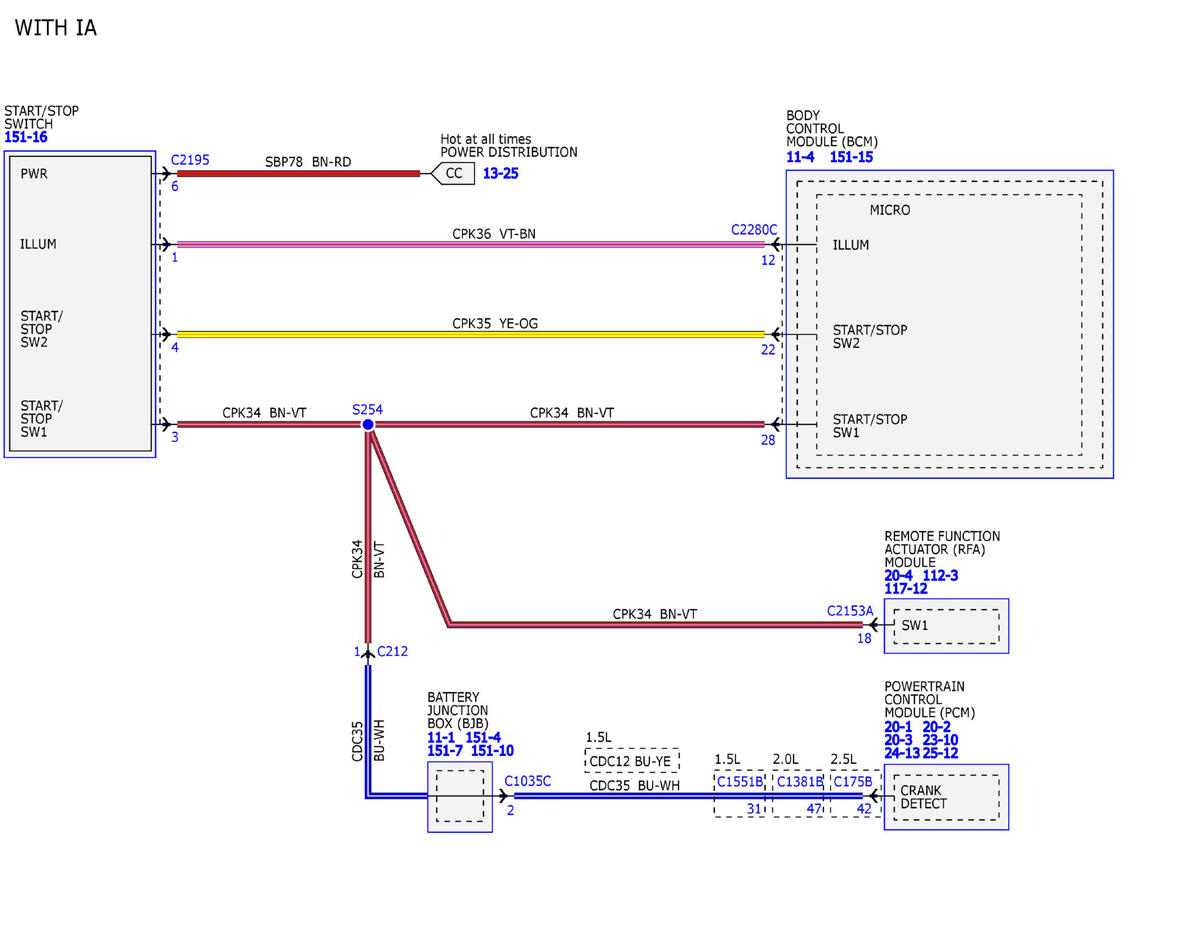

Fig 20: Power Distribution/BCM Wiring Diagram (20 Of 43)

GFDW97567

Courtesy of FORD MOTOR COMPANY

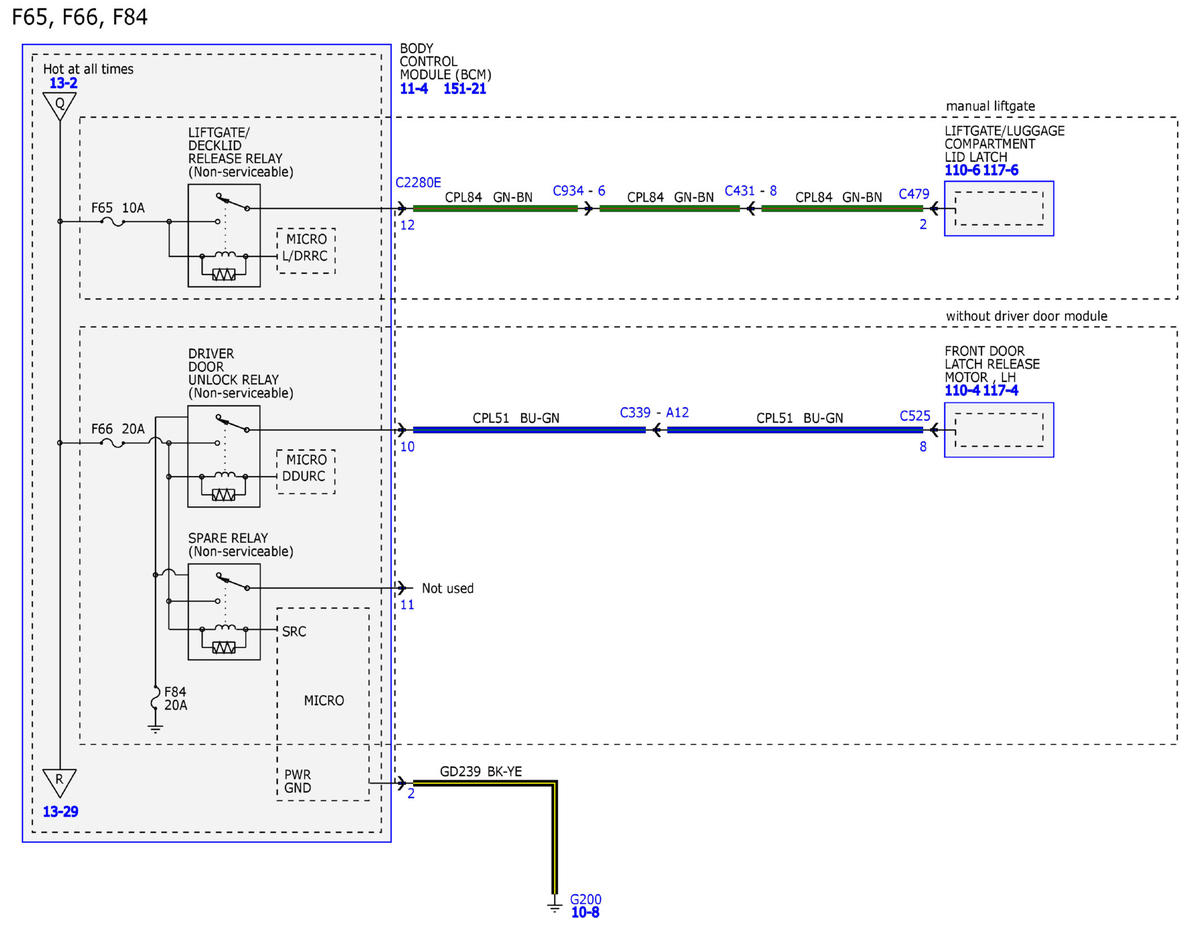

Fig 21: Power Distribution/BCM Wiring Diagram (21 Of 43)

GFDW97568

Courtesy of FORD MOTOR COMPANY

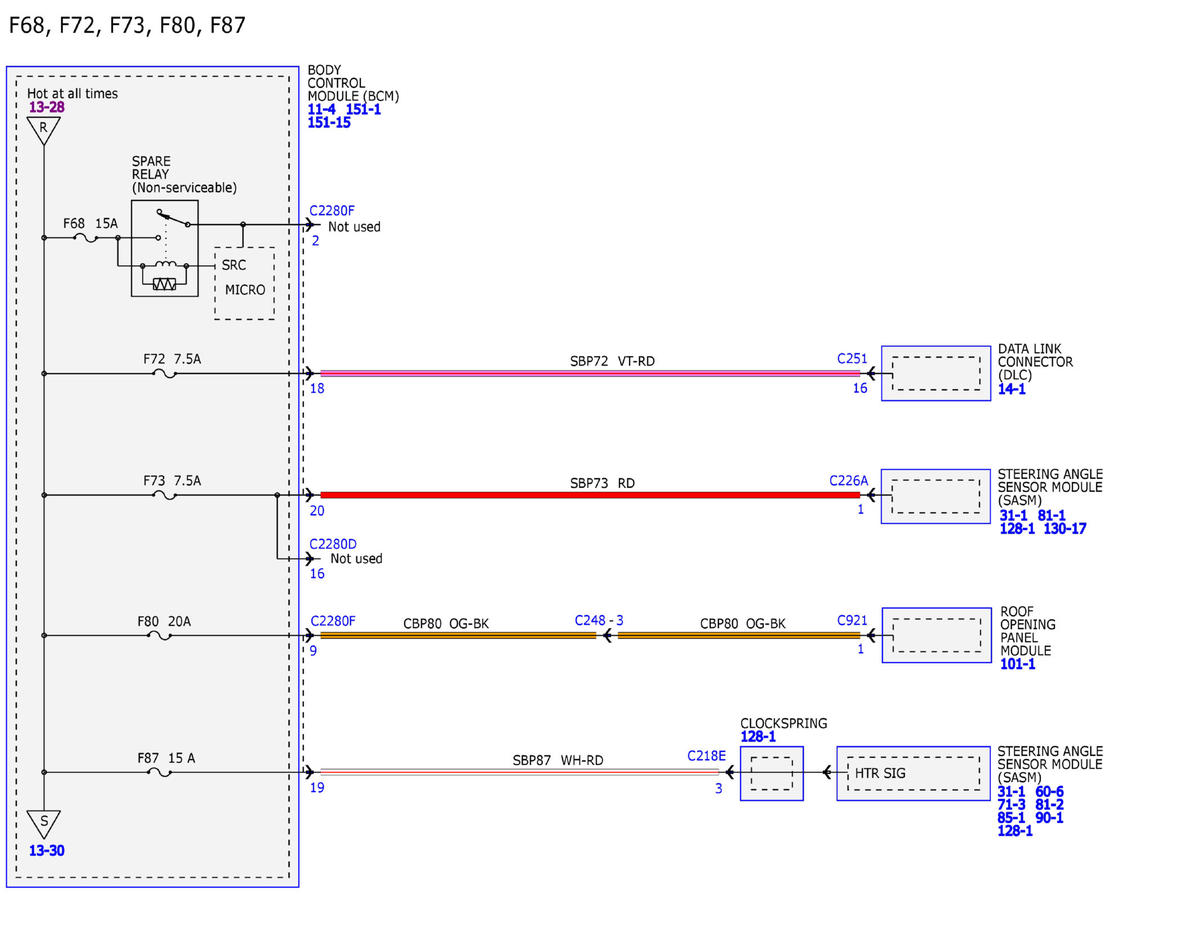

Fig 22: Power Distribution/BCM Wiring Diagram (22 Of 43)

GFDW97569

Courtesy of FORD MOTOR COMPANY

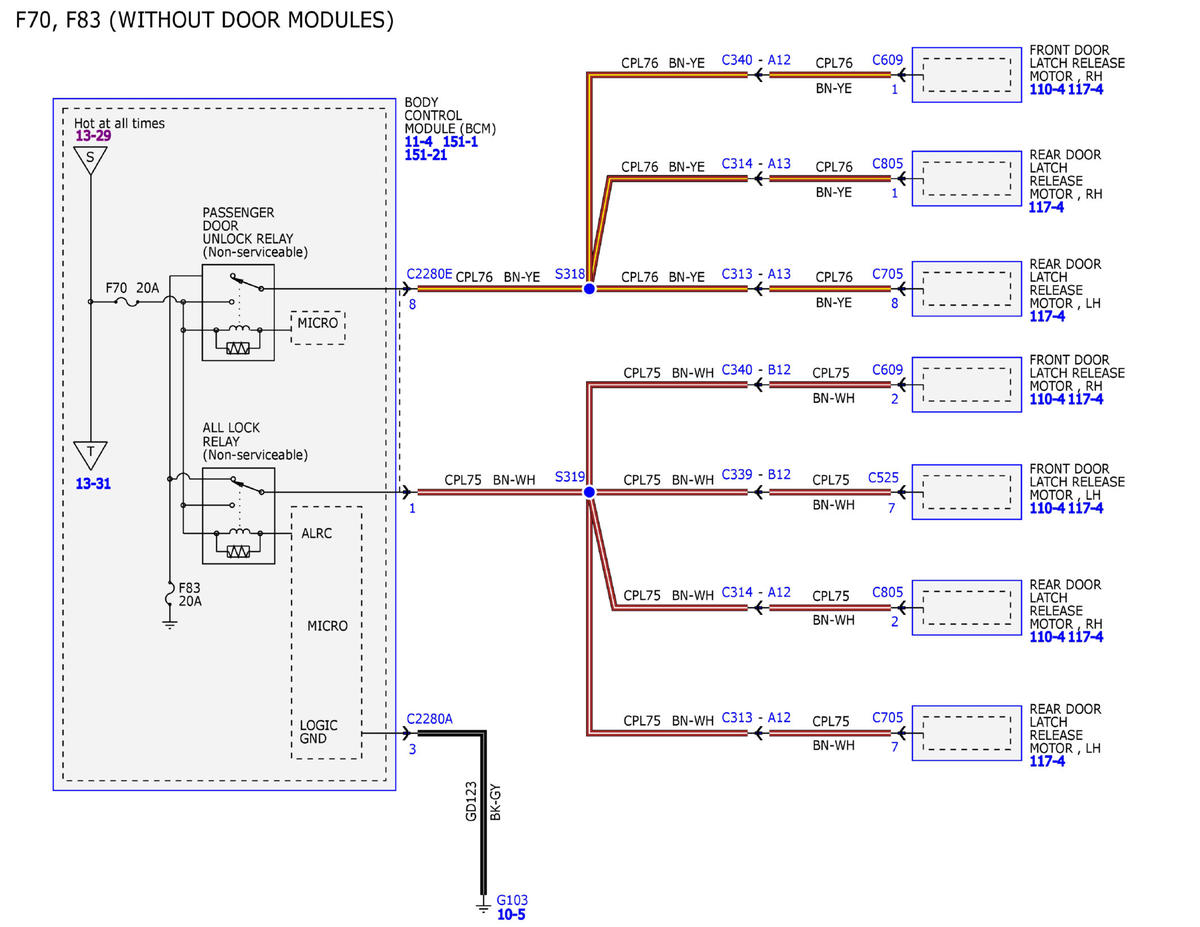

Fig 23: Power Distribution/BCM Wiring Diagram (23 Of 43)

GFDW97570

Courtesy of FORD MOTOR COMPANY

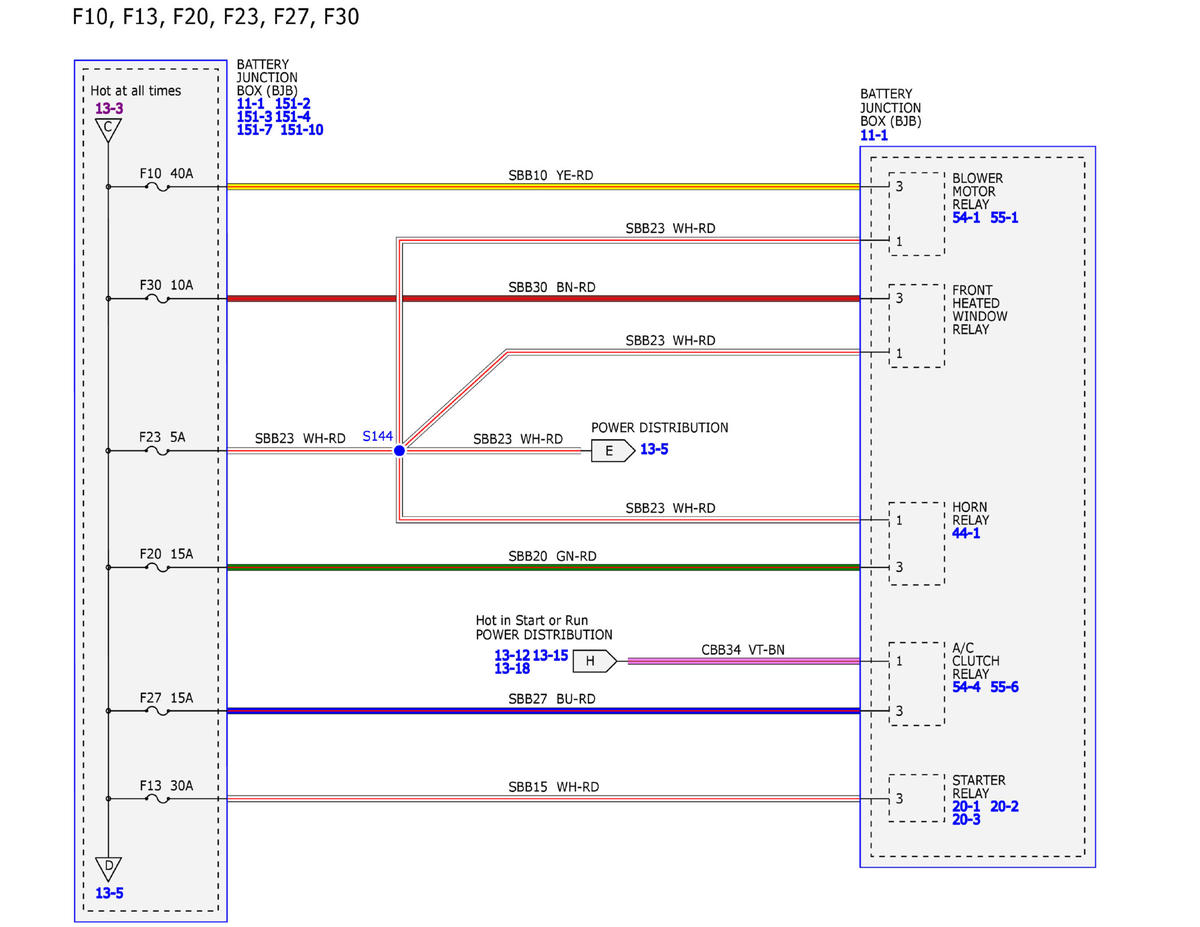

Fig 24: Power Distribution/BCM Wiring Diagram (24 Of 43)

GFDW97571

Courtesy of FORD MOTOR COMPANY

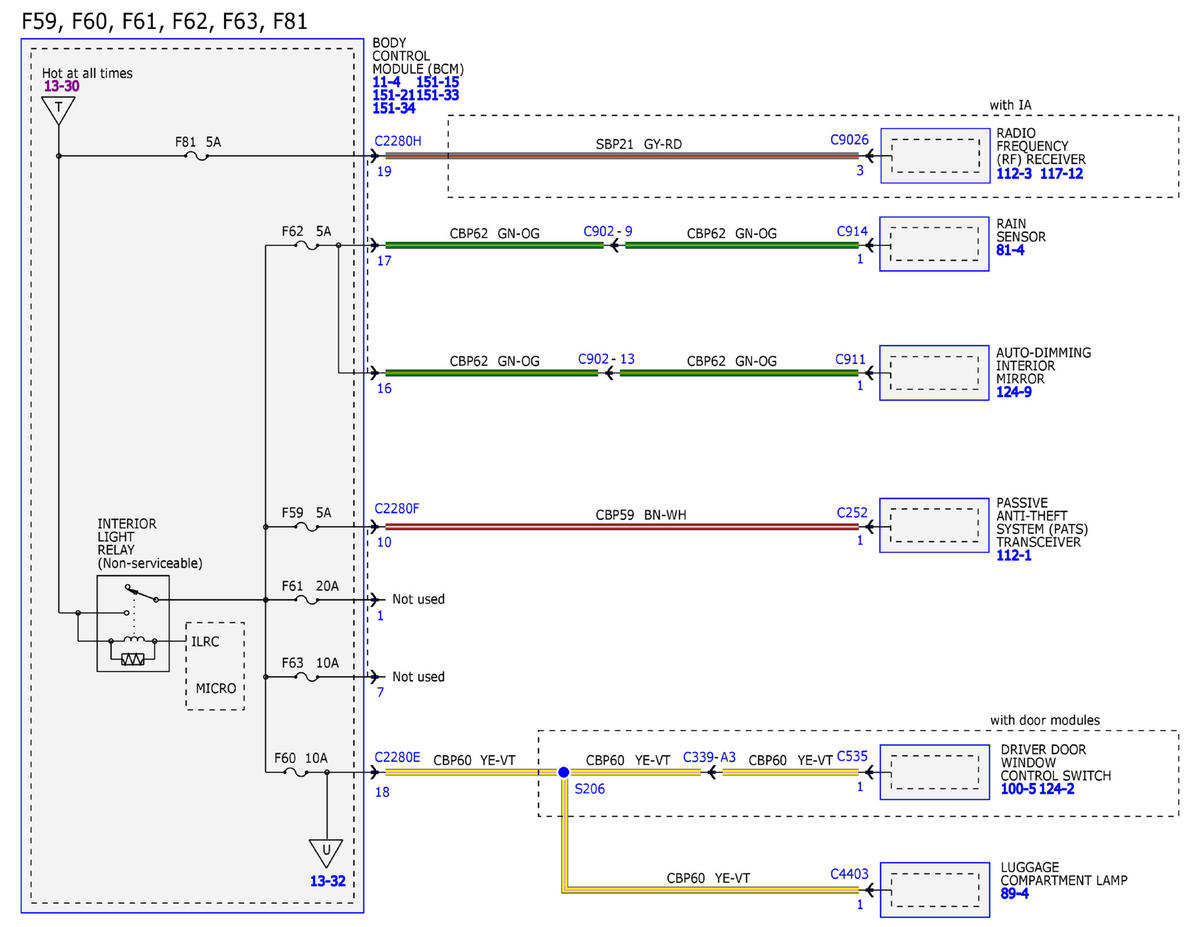

Fig 25: Power Distribution/BCM Wiring Diagram (25 Of 43)

GFDW97572

Courtesy of FORD MOTOR COMPANY

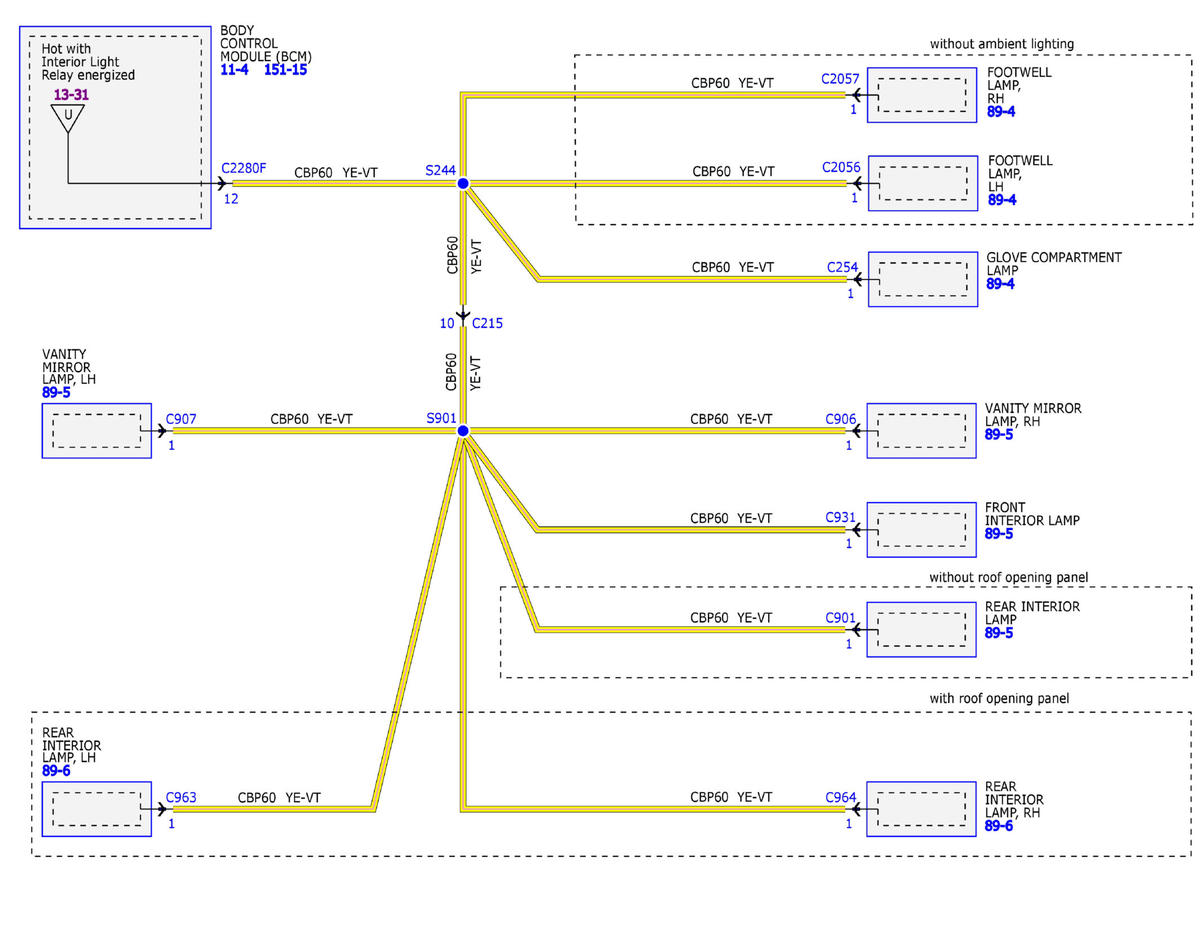

Fig 26: Power Distribution/BCM Wiring Diagram (26 Of 43)

GFDW97573

Courtesy of FORD MOTOR COMPANY

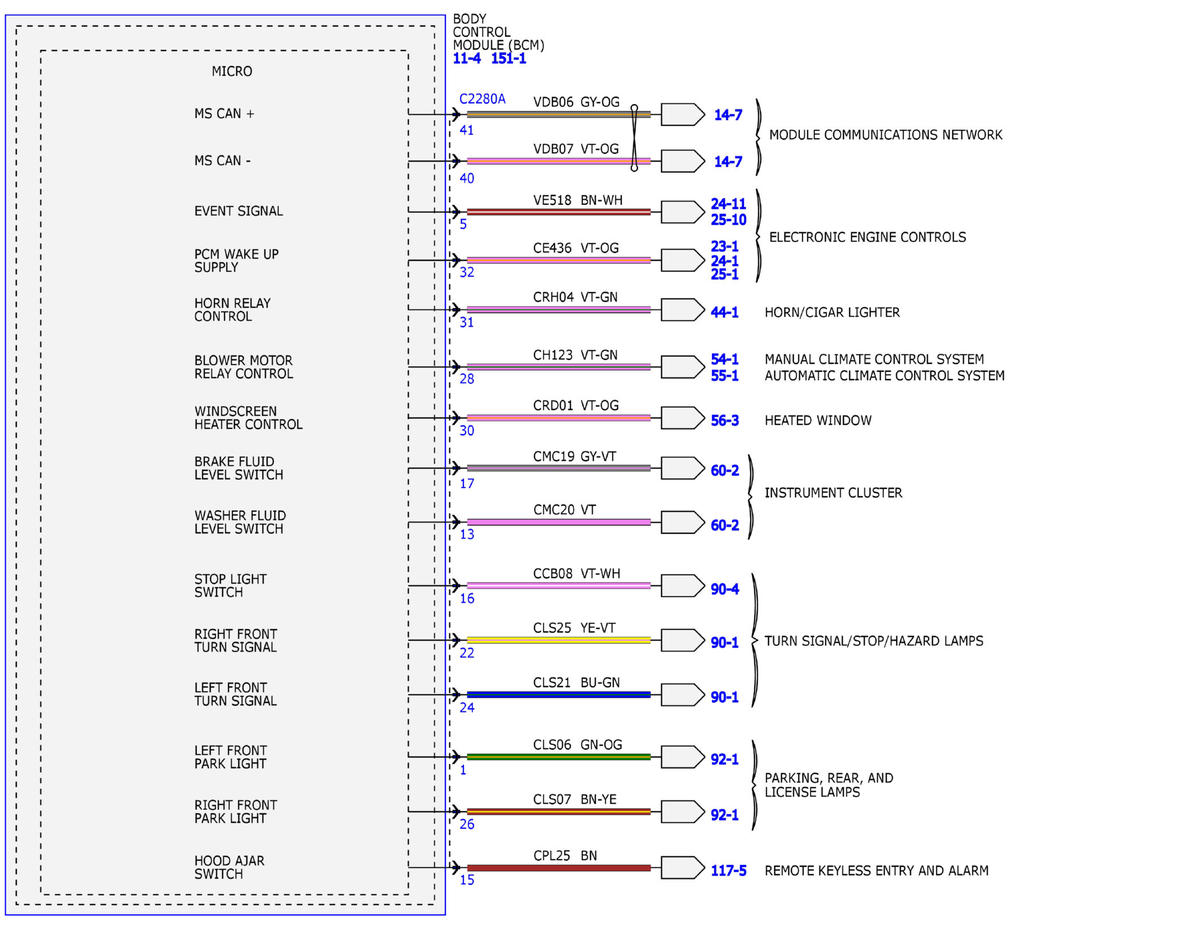

Fig 27: Power Distribution/BCM Wiring Diagram (27 Of 43)

GFDW97574

Courtesy of FORD MOTOR COMPANY

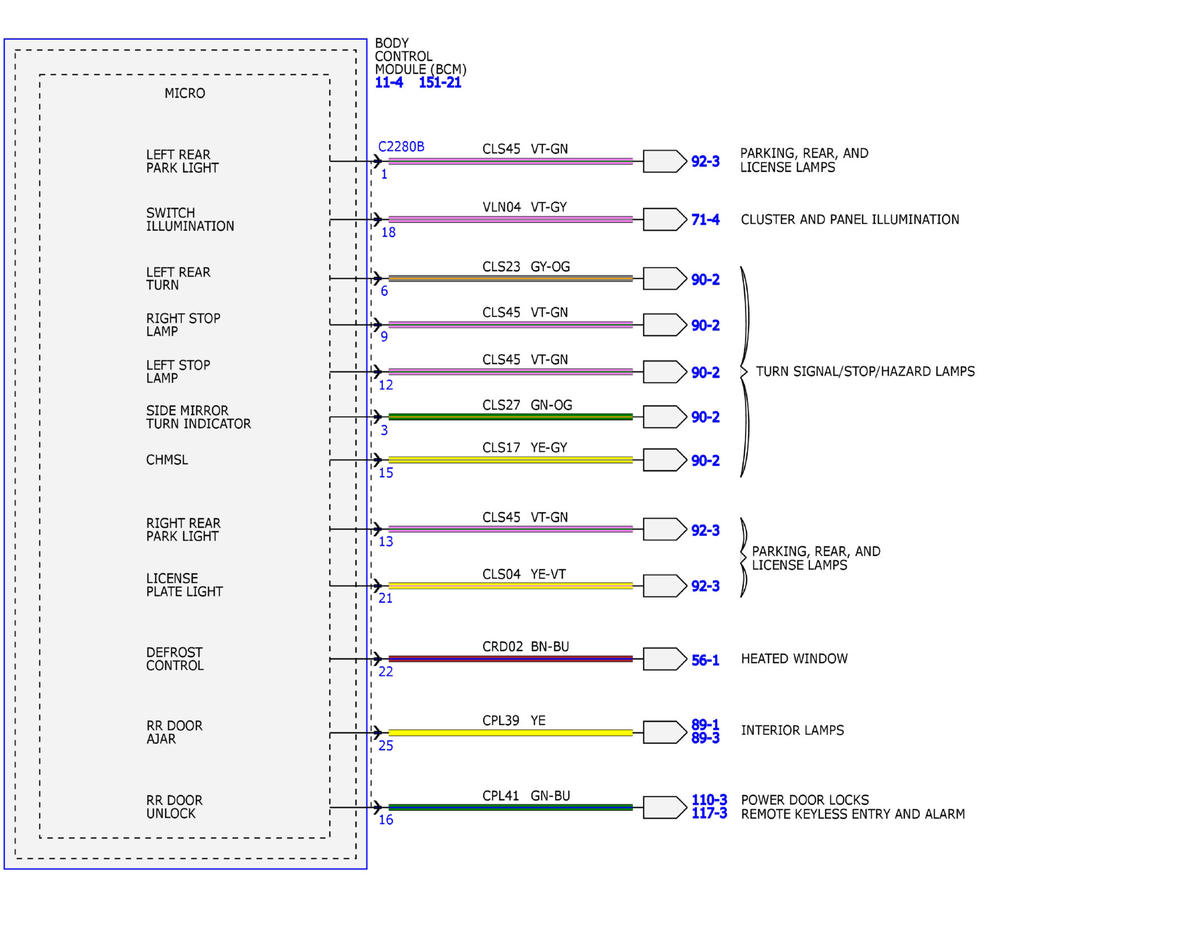

Fig 28: Power Distribution/BCM Wiring Diagram (28 Of 43)

GFDW97575

Courtesy of FORD MOTOR COMPANY

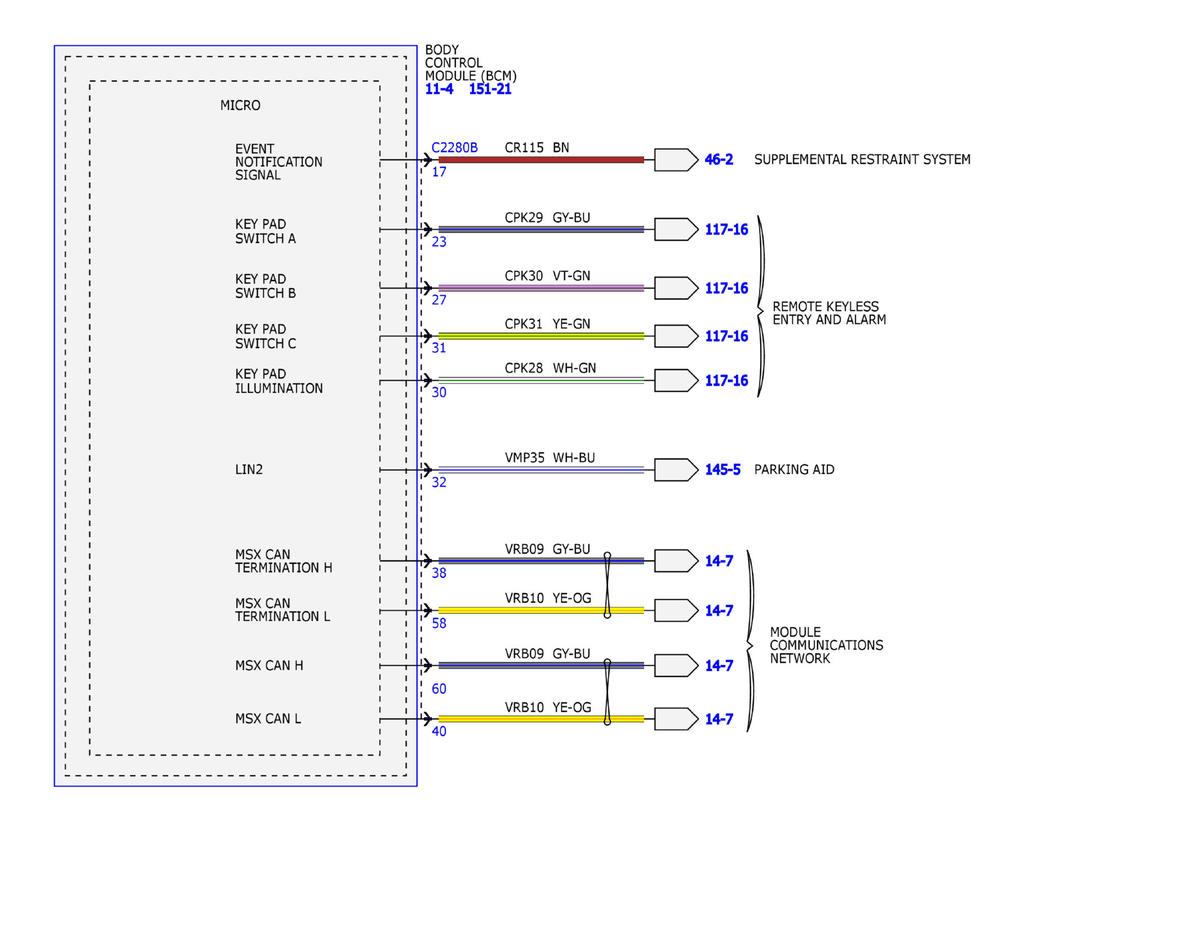

Fig 29: Power Distribution/BCM Wiring Diagram (29 Of 43)

GFDW97576

Courtesy of FORD MOTOR COMPANY

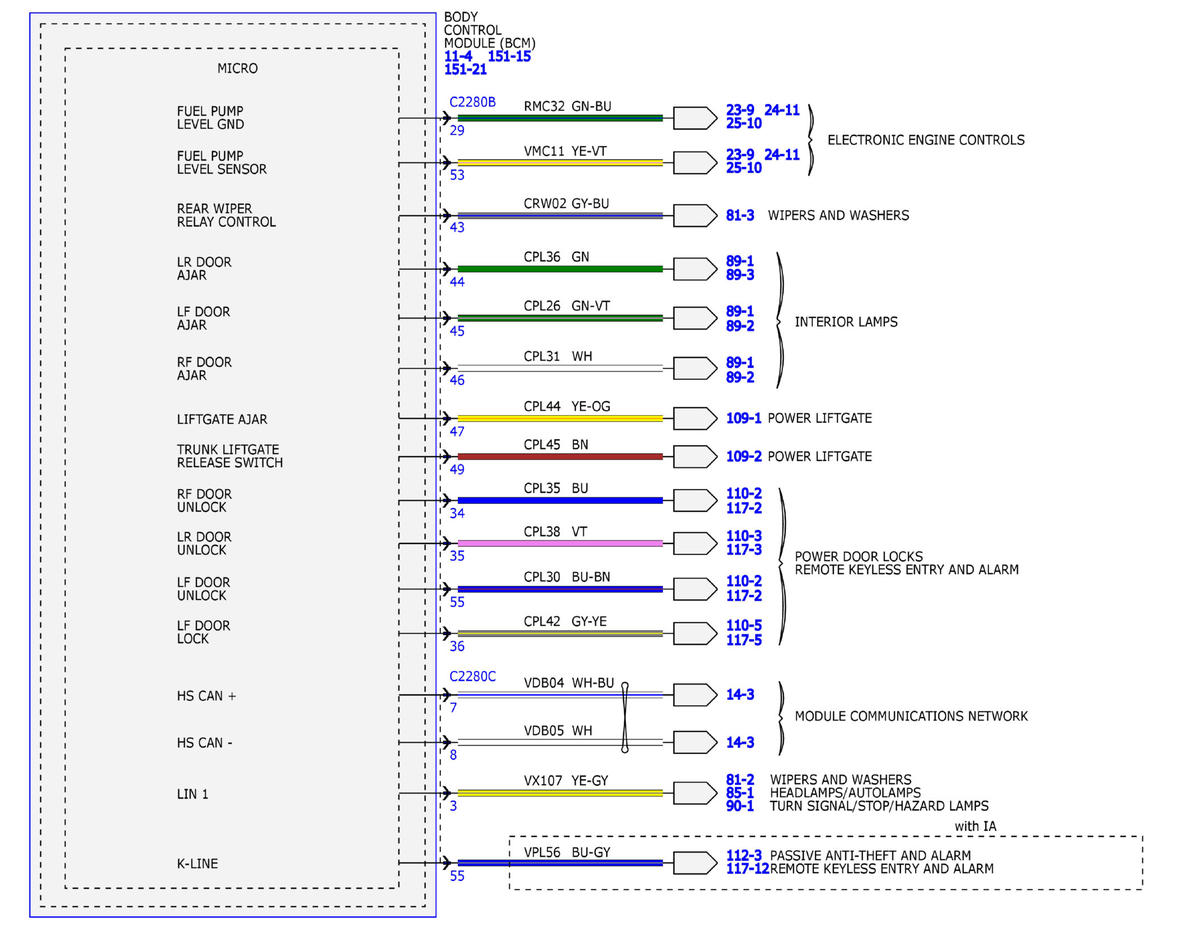

Fig 30: Power Distribution/BCM Wiring Diagram (30 Of 43)

GFDW97577

Courtesy of FORD MOTOR COMPANY

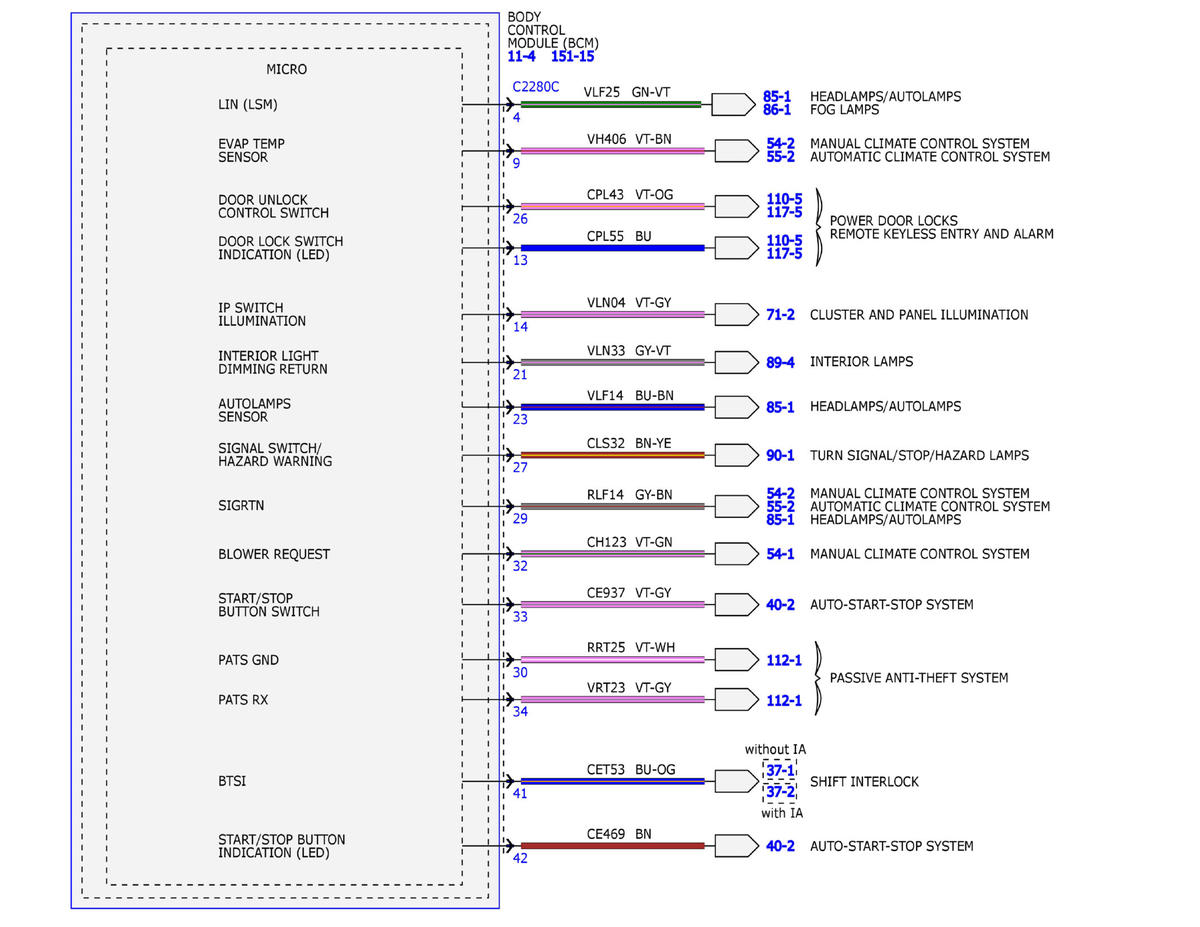

Fig 31: Power Distribution/BCM Wiring Diagram (31 Of 43)

GFDW97578

Courtesy of FORD MOTOR COMPANY

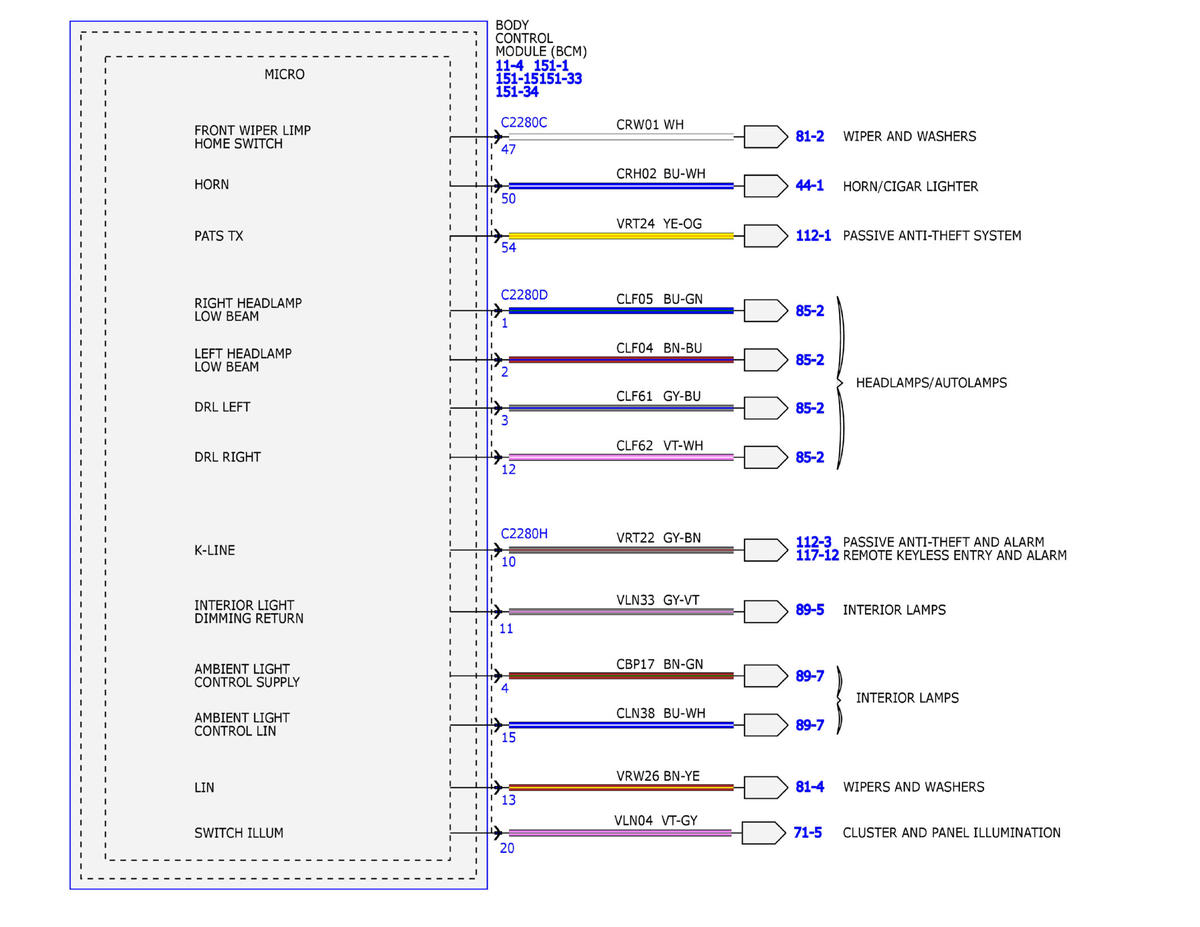

Fig 32: Power Distribution/BCM Wiring Diagram (32 Of 43)

GFDW97579

Courtesy of FORD MOTOR COMPANY

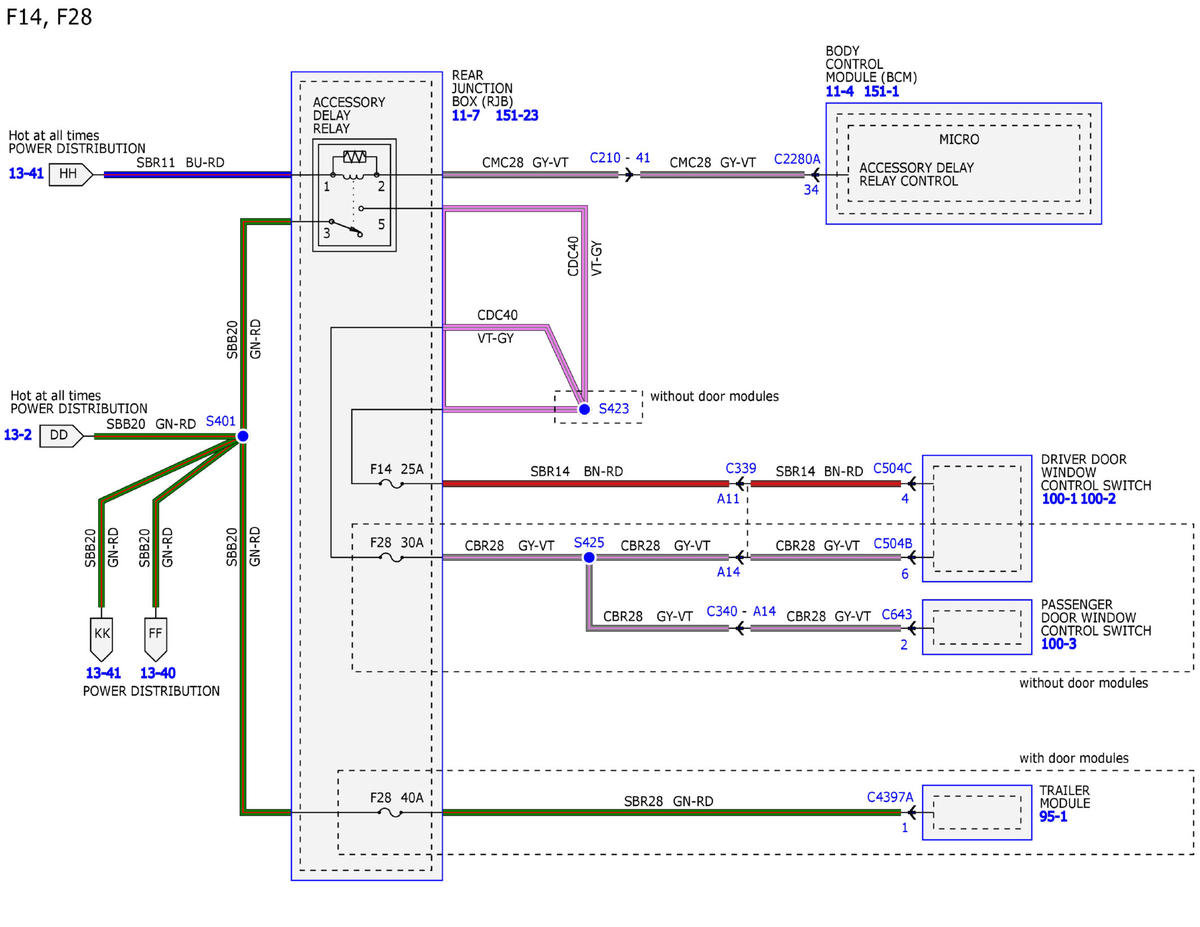

Fig 33: Power Distribution/BCM Wiring Diagram (33 Of 43)

GFDW97580

Courtesy of FORD MOTOR COMPANY

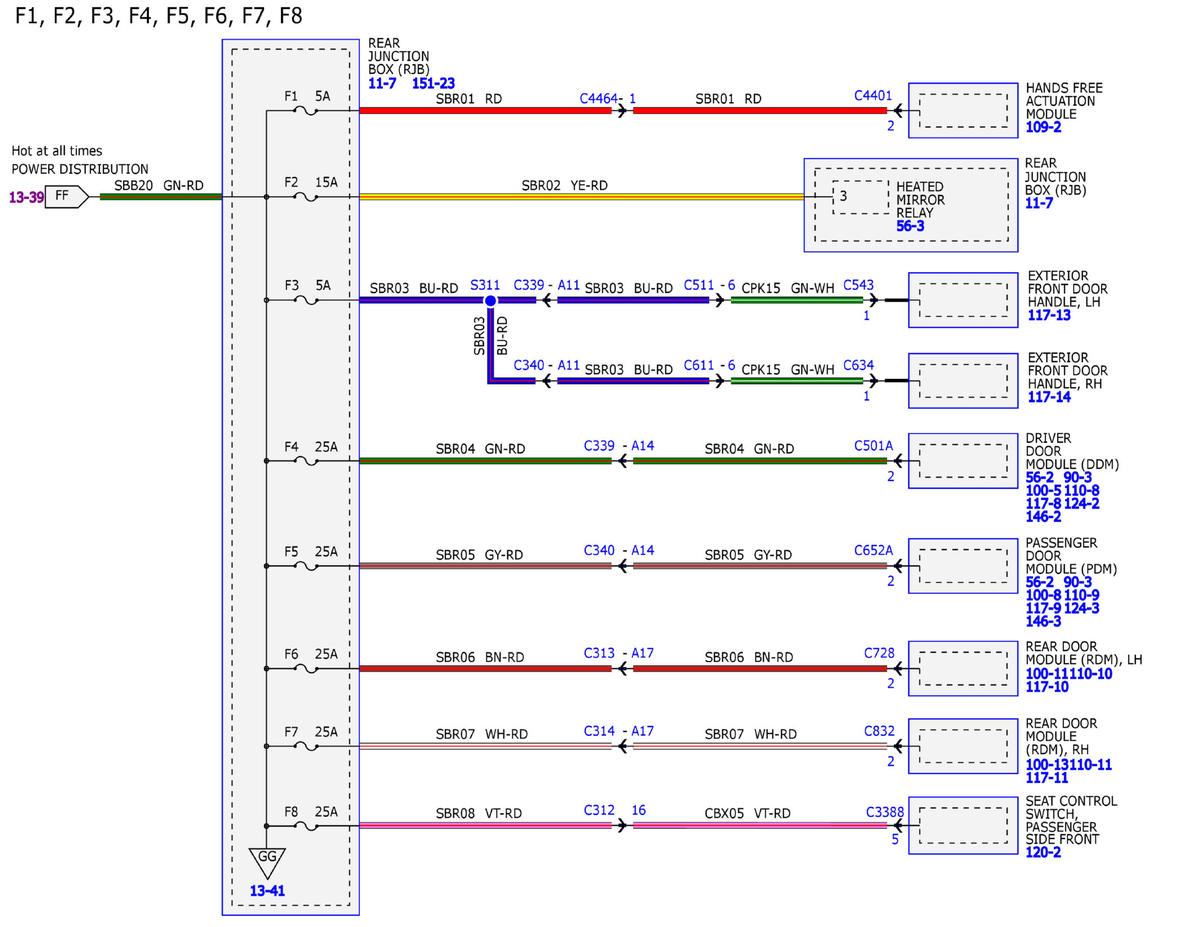

Fig 34: Power Distribution/BCM Wiring Diagram (34 Of 43)

GFDW97581

Courtesy of FORD MOTOR COMPANY

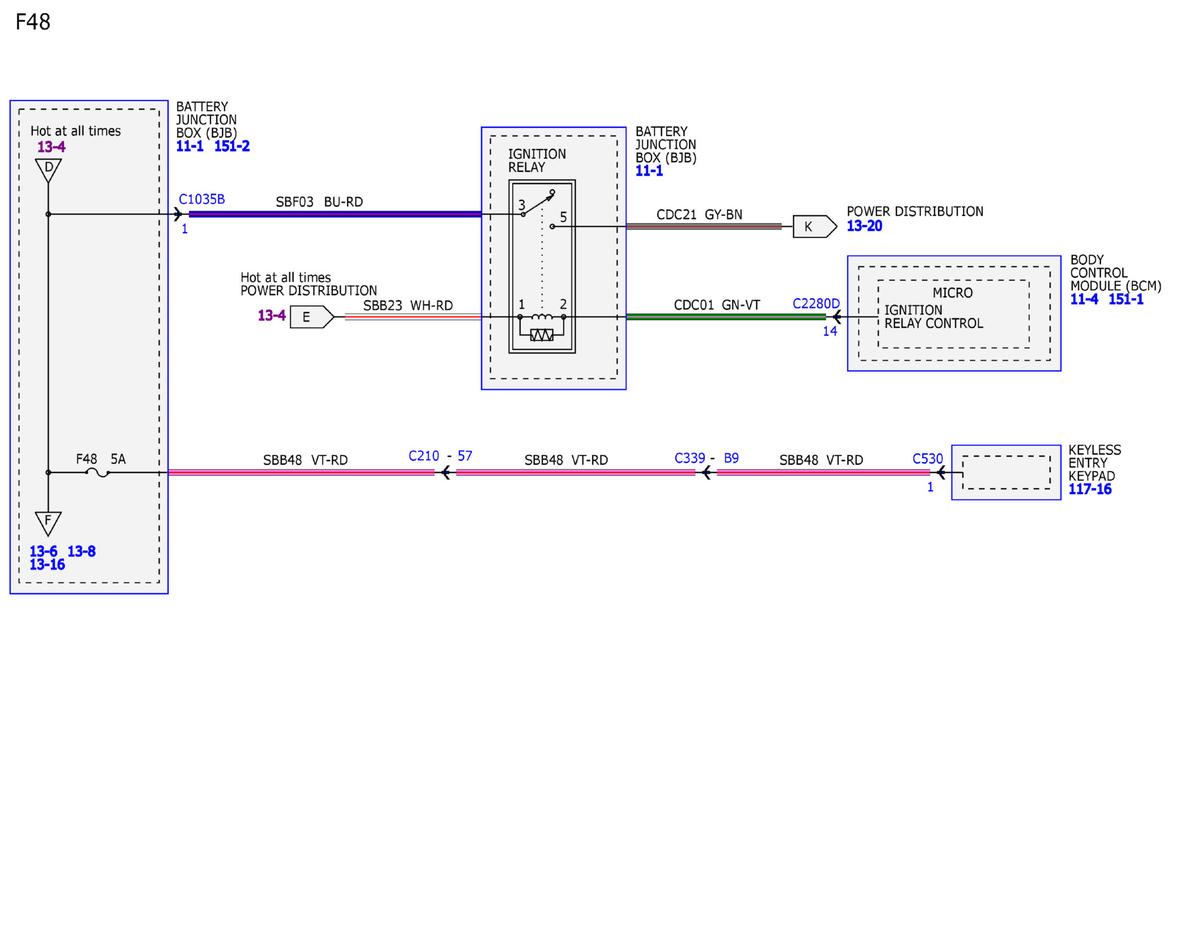

Fig 35: Power Distribution/BCM Wiring Diagram (35 Of 43)

GFDW97582

Courtesy of FORD MOTOR COMPANY

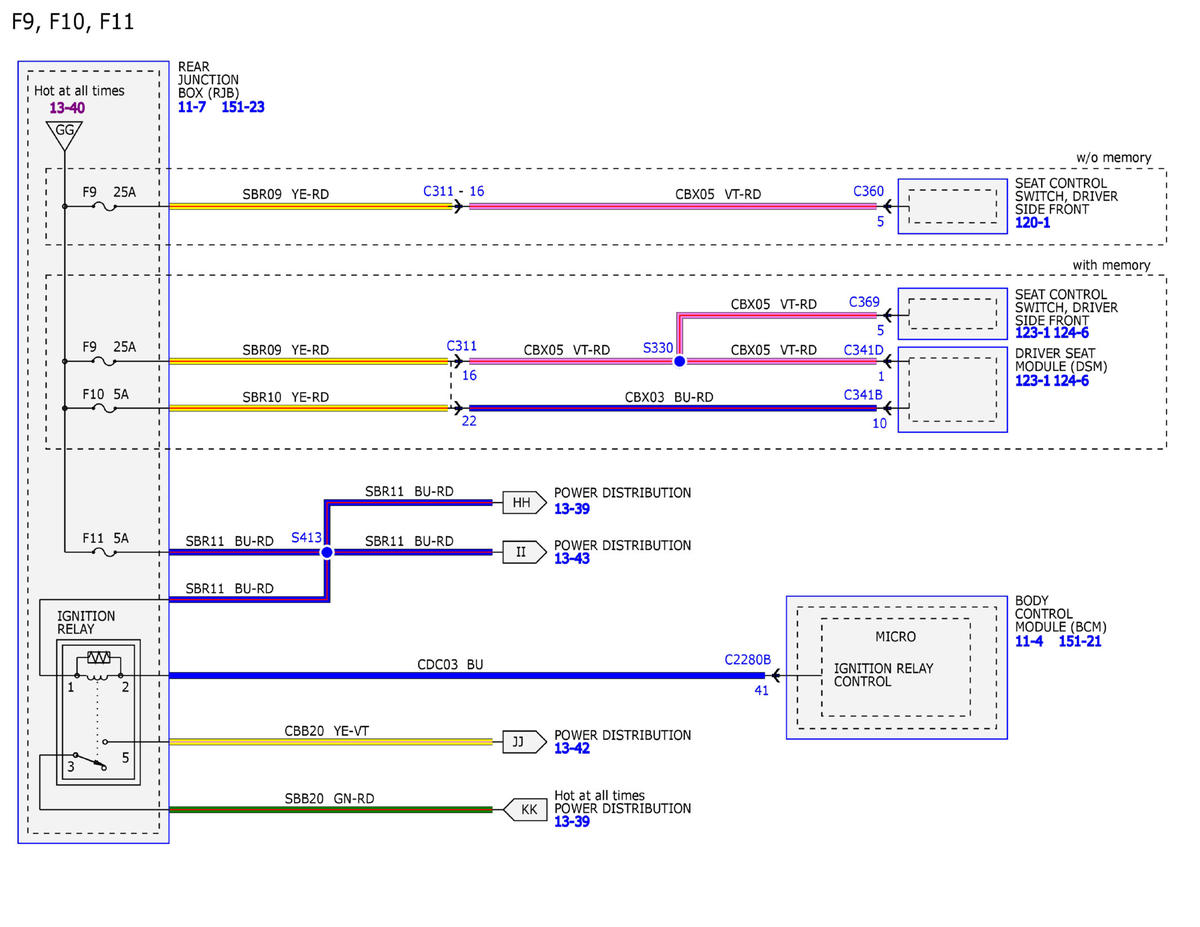

Fig 36: Power Distribution/BCM Wiring Diagram (36 Of 43)

GFDW97583

Courtesy of FORD MOTOR COMPANY

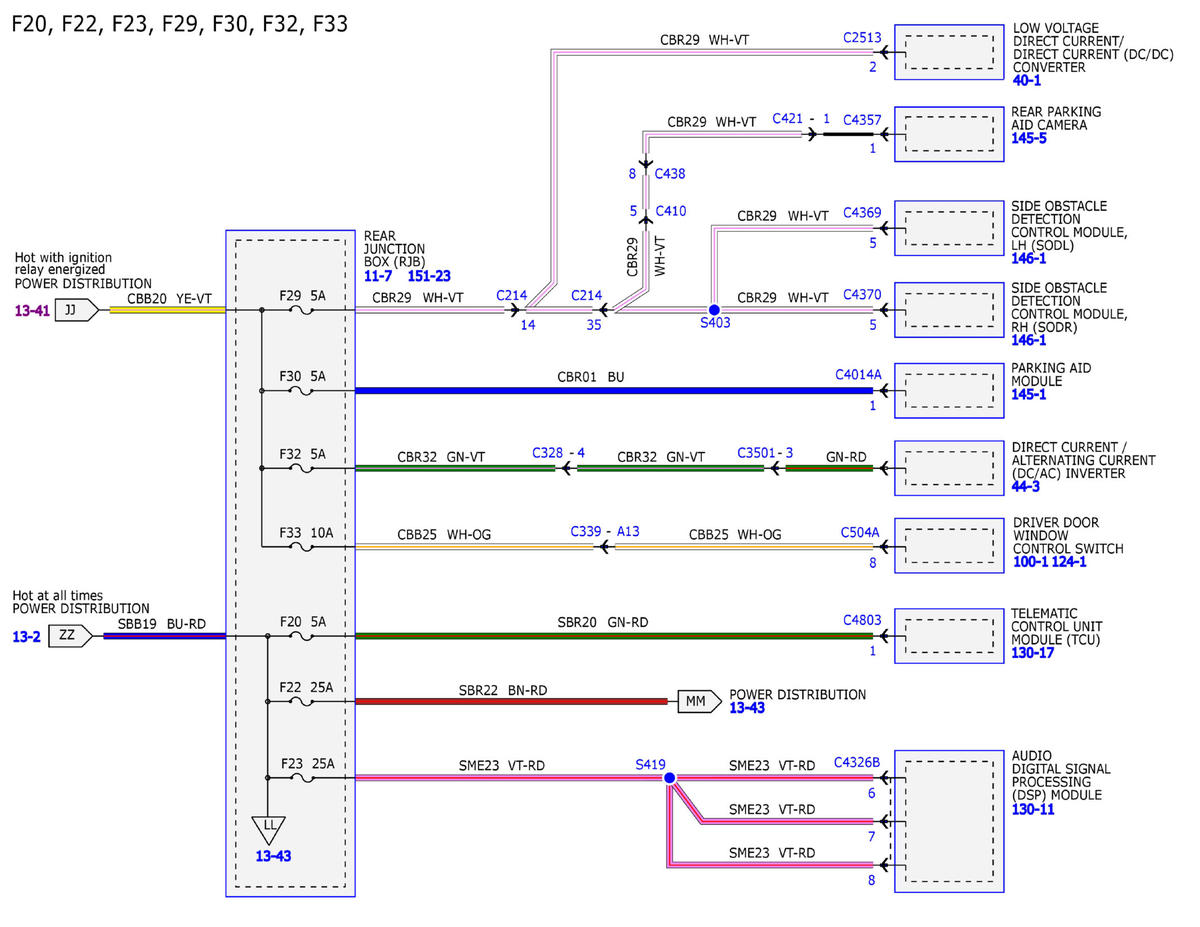

Fig 37: Power Distribution/BCM Wiring Diagram (37 Of 43)

GFDW97584

Courtesy of FORD MOTOR COMPANY

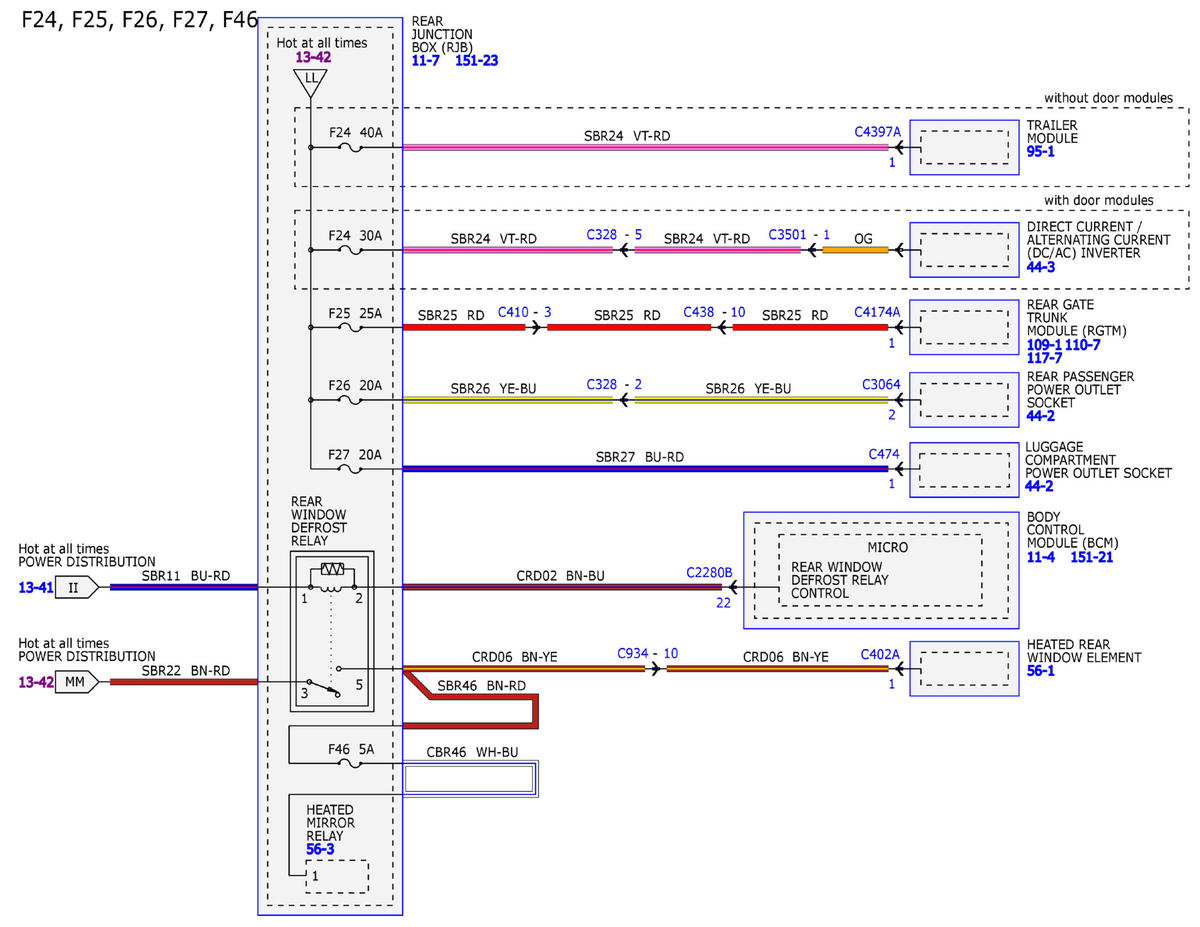

Fig 38: Power Distribution/BCM Wiring Diagram (38 Of 43)

GFDW97585

Courtesy of FORD MOTOR COMPANY

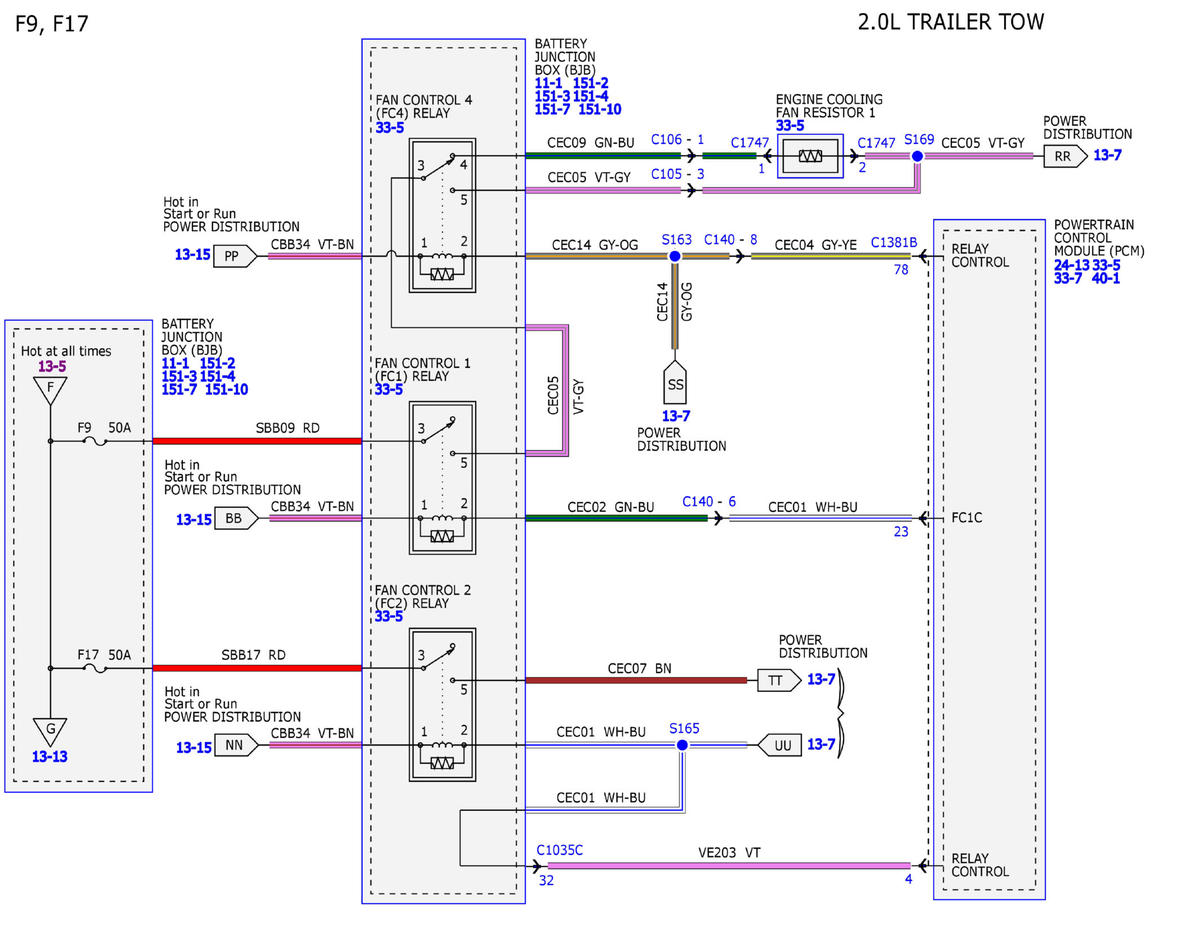

Fig 39: Power Distribution/BCM Wiring Diagram (39 Of 43)

GFDW97586

Courtesy of FORD MOTOR COMPANY

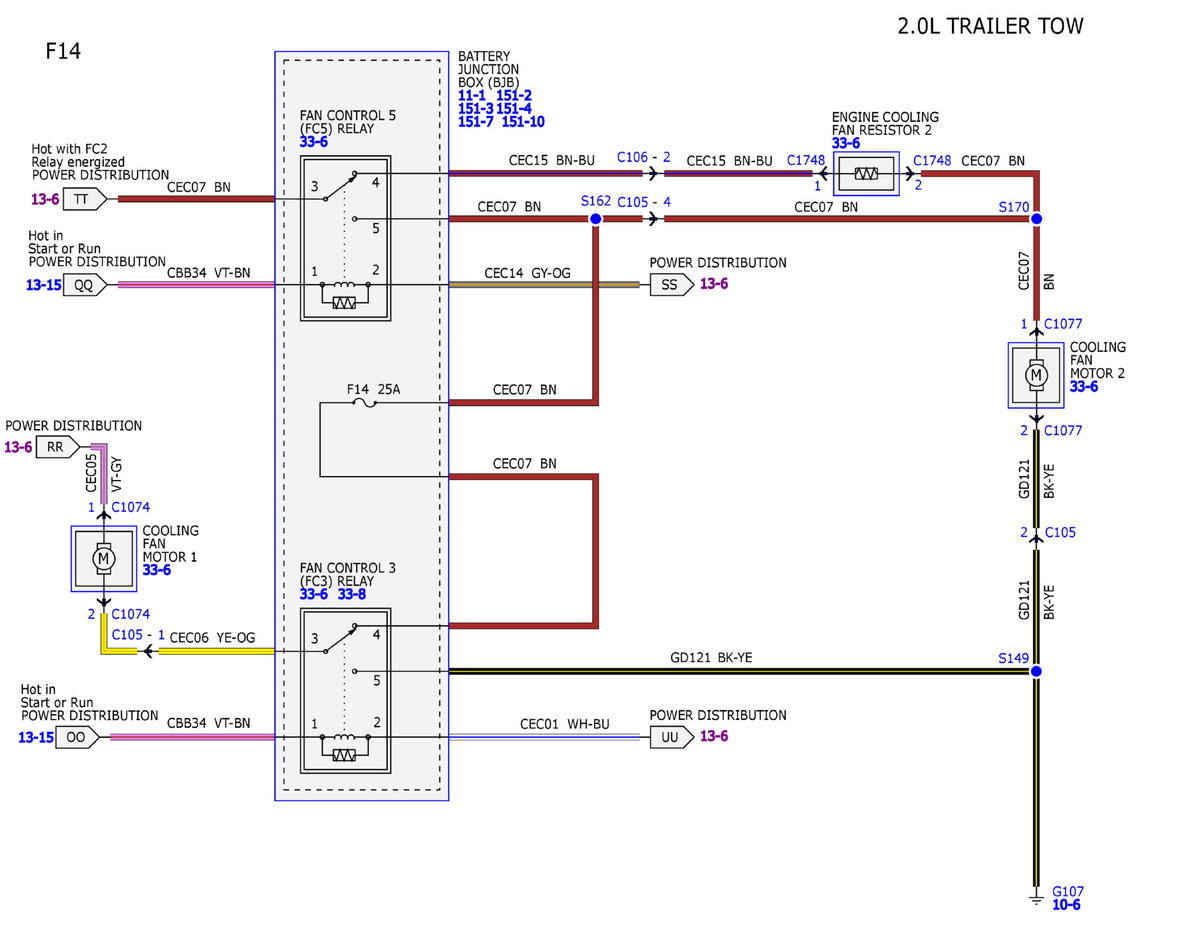

Fig 40: Power Distribution/BCM Wiring Diagram (40 Of 43)

GFDW97587

Courtesy of FORD MOTOR COMPANY

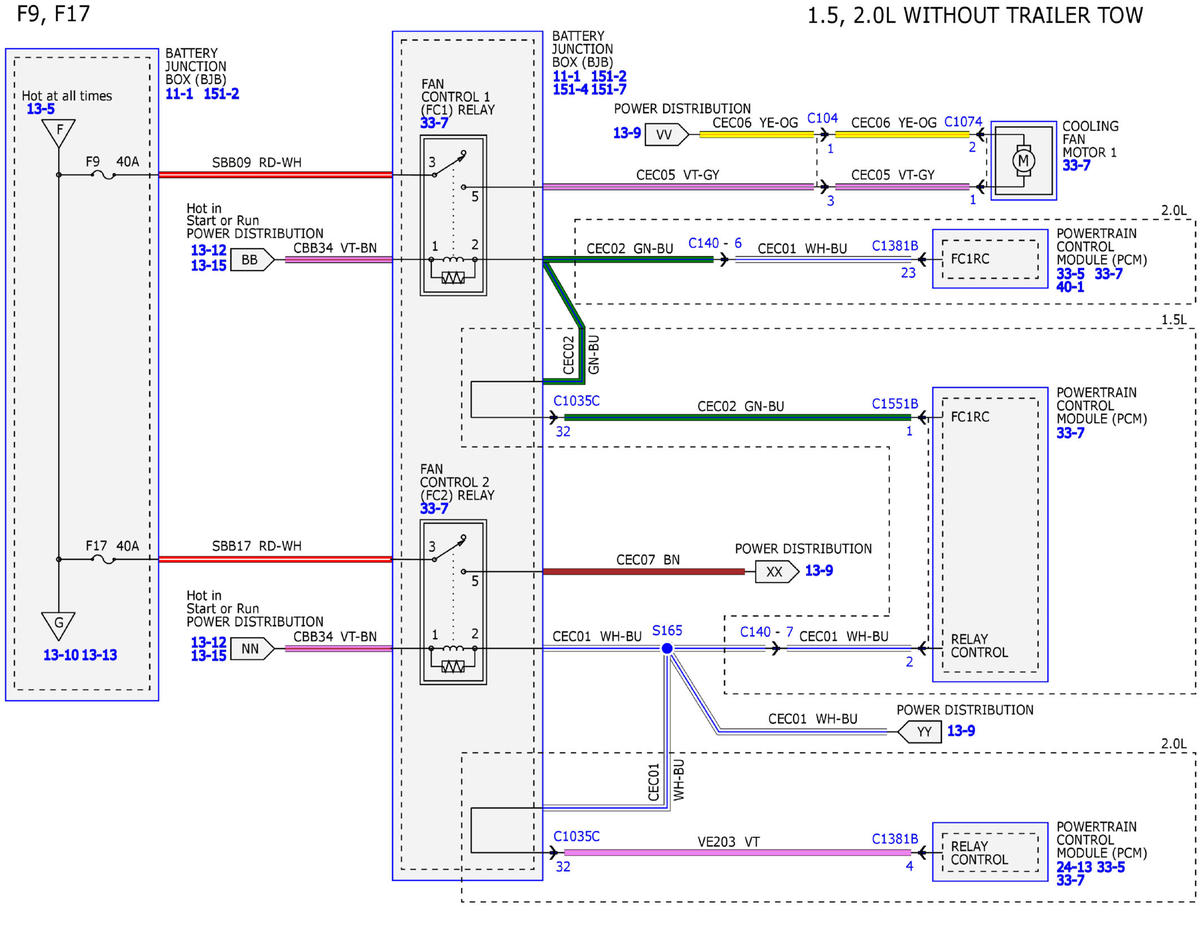

Fig 41: Power Distribution/BCM Wiring Diagram (41 Of 43)

GFDW97588

Courtesy of FORD MOTOR COMPANY

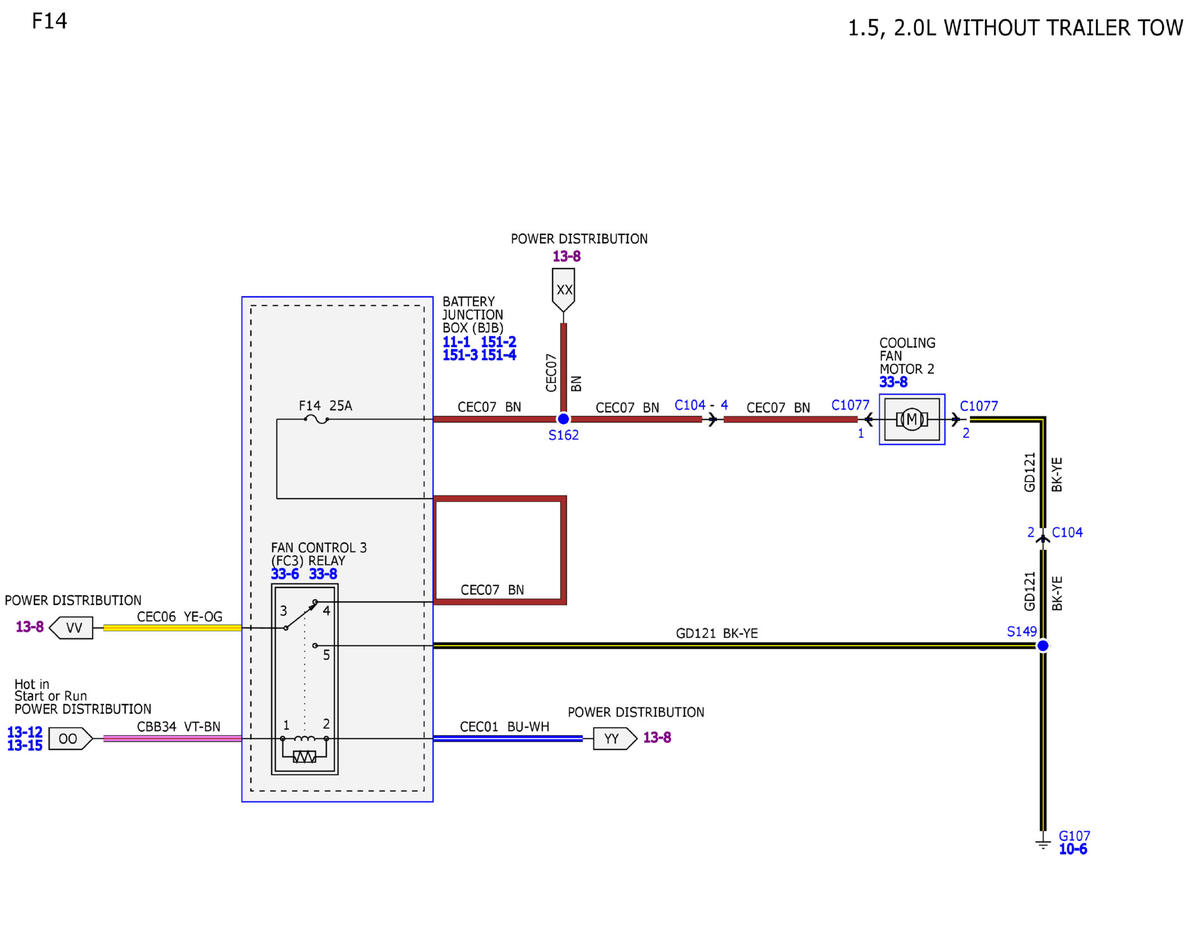

Fig 42: Power Distribution/BCM Wiring Diagram (42 Of 43)

GFDW97589

Courtesy of FORD MOTOR COMPANY

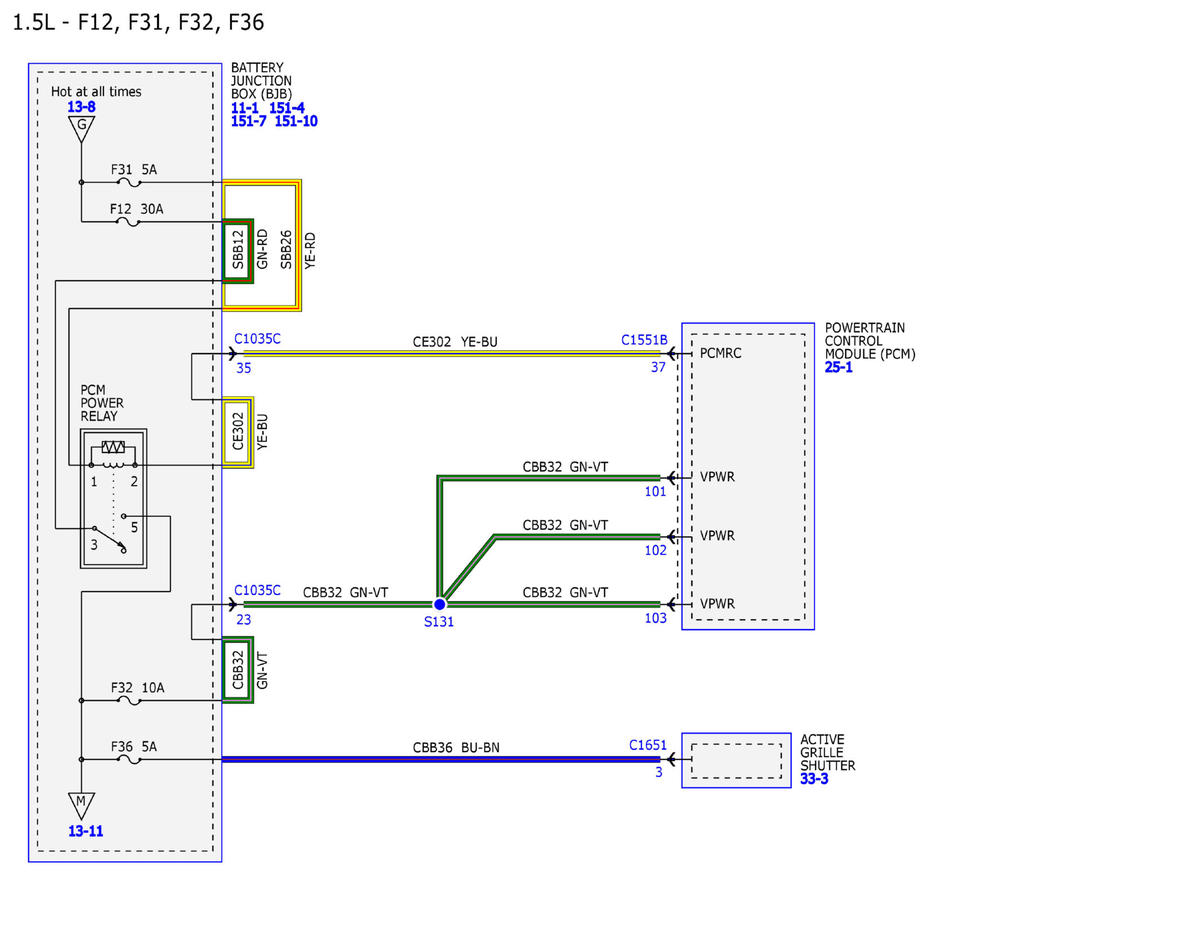

Fig 43: Power Distribution/BCM Wiring Diagram (43 Of 43)

GFDW97590

Courtesy of FORD MOTOR COMPANY
