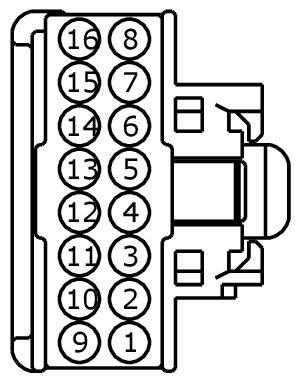

Connector End View (C912) - OVERHEAD CONSOLE
Connector:C912
Description
OVERHEAD CONSOLE
Color
Harness
14335
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | CPR85 (GN-WH) | 22 | SWITCH - SHADE MOON/SUN ROOF CLOSE | |
| 4 | CPR86 (GY-BN) | 22 | SWITCH - SHADE MOON/SUN ROOF OPEN | |
| 5 | GD238 (BK-WH) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT | |
| 6 | * | * | Not Used | |
| 7 | VLN30 (BU-WH) | 22 | PANEL ILLUMINATION | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | CPR40 (YE-OG) | 22 | SWITCH - MOON/SUN ROOF CLOSE | |
| 12 | CPR31 (VT-BN) | 22 | SWITCH - MOON/SUN ROOF OPEN | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1152 |
Service Part Number: 3U2Z-14S411-AJD Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console -Inline (Female) Switch - Multifunction |
