Connector End View (C911) - AUTO-DIMMING INTERIOR MIRROR
Connector:C911
Description
AUTO-DIMMING INTERIOR MIRROR
Color
BK
Harness
18D274
Base Part #
17700
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP62 (GN-OG) | 22 | FUSE OR CIRCUIT BREAKER | |
| 2 | GD238 (BK-WH) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT | |
| 3 | CBP76 (BU-BN) | 22 | FUSE OR CIRCUIT BREAKER |

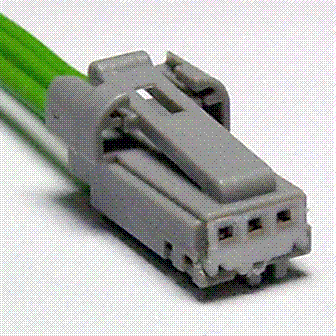

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1182 |
Service Part Number: BU2Z-14S411-AFA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Microphone |
