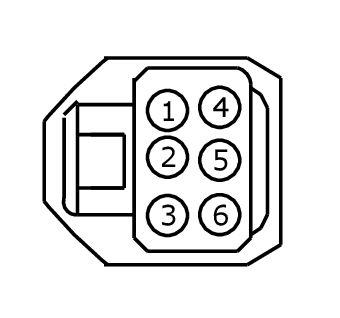

Connector End View (C828) - REAR DOOR WINDOW REGULATOR MOTOR, RH
Connector:C828
Description
REAR DOOR WINDOW REGULATOR MOTOR, RH
Color
BK
Harness
14240
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPW53 (YE-OG) | 12 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # DOWN | |
| 2 | VPW56 (BN-BU) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSOR 1 | |
| 3 | LPW54 (BN-GN) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS + | |
| 4 | CPW52 (VT-WH) | 12 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # UP | |
| 5 | VPW57 (BU-GY) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSOR 2 | |
| 6 | RPW09 (BN-WH) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1344 |
Service Part Number: DU2Z-14S411-AEA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear |
