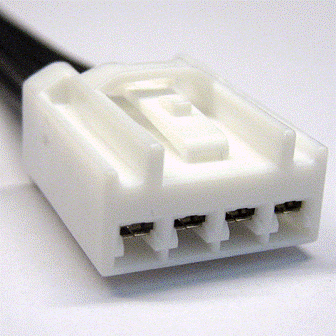

Connector End View (C802) - REAR DOOR SPEAKER, RH

Connector:C802

Description

REAR DOOR SPEAKER, RH

Color

Harness

14240

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME12 (BN-WH)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) +
1	VME40 (BU-WH)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER +	WITH SONY SOUND
2	*	*	Not Used
3	*	*	Not Used
4	RME40 (VT-WH)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER -	WITH SONY SOUND
4	RME12 (BN-BU)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-912

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-HA

Gauge:

Pin material:

Tin

Cavities:
