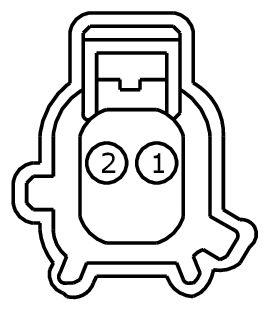

Connector End View (C644) - PASSENGER DOOR SIDE IMPACT SENSOR

Connector:C644

Description

PASSENGER DOOR SIDE IMPACT SENSOR

Color

Harness

14K138

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR237 (BN-WH)	20	CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE +
2	RR175 (YE-OG)	20	CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-948

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EKB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Motor - Windshield Washer Fluid Pump

Sensor - Side Impact
