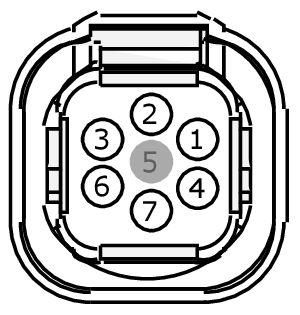

Connector End View (C634) - EXTERIOR FRONT DOOR HANDLE, RH
Connector:C634
Description
EXTERIOR FRONT DOOR HANDLE, RH
Color
GN
Harness
14F302
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPK15 (GN-WH) | 22 | SWITCH - LATCH CLUTCH RIGHT FRONT | |
| 2 | CPK12 (YE) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE FRONT RIGHT SIDE + | |
| 3 | CPK12 (GN-BN) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE FRONT RIGHT SIDE - | |
| 4 | CPK19 (BU-GN) | 22 | SWITCH - LOCK RIGHT FRONT | |
| 5 | * | * | Not Used | |
| 6 | CPK23 (YE-VT) | 22 | SWITCH - HANDLE UNLOCK RIGHT FRONT | |
| 7 | GD150 (BK-WH) | 22 | GROUND - PILLAR D RIGHT # 2ND POINT (6L2T) |
