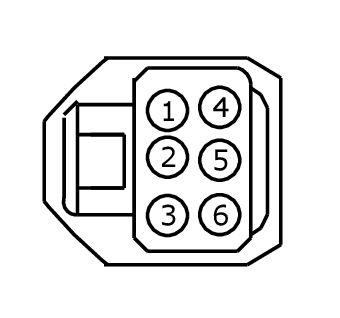

Connector End View (C623) - PASSENGER DOOR WINDOW REGULATOR MOTOR
Connector:C623
Description
PASSENGER DOOR WINDOW REGULATOR MOTOR
Color
BK
Harness
14K138
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPW41 (GY-YE) | 12 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # DOWN | |
| 2 | VPW44 (BU-OG) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # SENSOR 1 | |
| 3 | LPW42 (VT-GY) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS | |
| 4 | CPW40 (WH) | 12 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # UP | |
| 5 | VPW45 (GN-WH) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # SENSOR 2 | |
| 6 | RPW43 (YE-GN) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1344 |
Service Part Number: DU2Z-14S411-AEA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear |
