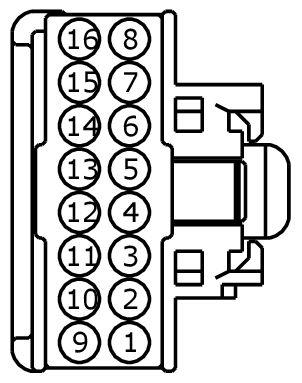

Connector End View (C601) - EXTERIOR MIRROR, RH
Connector:C601
Description
EXTERIOR MIRROR, RH
Color
Harness
14K138
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPM06 (GN-WH) | 22 | CTRL MOD. - RIGHT MIRROR RIGHT | |
| 2 | CPM33 (WH-VT) | 22 | CTRL MOD. - RIGHT MIRROR LEFT | |
| 3 | CPM06 (GN-WH) | 22 | CTRL MOD. - RIGHT MIRROR DOWN | |
| 4 | CRD14 (WH-OG) | 22 | CTRL MOD. - HEATER MIRROR RIGHT | |
| 5 | CLS02 (BN-WH) | 22 | CTRL MOD. - PUDDLE LAMP RIGHT | |
| 6 | RPM08 (GN-BU) | 22 | CTRL MOD. - RIGHT MIRROR RETURN | |
| 7 | CLS26 (BU-GY) | 22 | CTRL MOD. - TURN LAMP RIGHT MIRROR + | |
| 8 | RRB07 (YE-VT) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER - | |
| 9 | CRB07 (BN) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER + | |
| 10 | CPM34 (WH-BN) | 22 | CTRL MOD. - RIGHT MIRROR UP | |
| 11 | LPM12 (BU-GY) | 22 | CTRL MOD. - SWITCH MIRROR DIRECTION | |
| 12 | VPM37 (BU-OG) | 22 | SENSOR - RIGHT MIRROR POSITION # HORIZONTAL | |
| 13 | VPM38 (BN-GN) | 22 | SENSOR - RIGHT MIRROR POSITION # VERTICAL | |
| 14 | RPM12 (VT-WH) | 22 | CTRL MOD. - SWITCH MIRROR RETURN | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1152 |
Service Part Number: 3U2Z-14S411-AJD Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console -Inline (Female) Switch - Multifunction |
