Connector End View (C573) - INTERIOR FRONT DOOR HANDLE AMBIENT LIGHTING LAMP, LH
Connector:C573
Description
INTERIOR FRONT DOOR HANDLE AMBIENT LIGHTING LAMP, LH
Color
BK
Harness
14A584
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP17 (BN-GN) | 20 | FUSE OR CIRCUIT BREAKER | |
| 2 | CLN17 (BU-WH) | 20 | SWITCH - IP/SWITCH ILLUMINATION | |
| 3 | GD235 (BK-GY) | 22 | GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT |
| Available Pigtail Kits | |

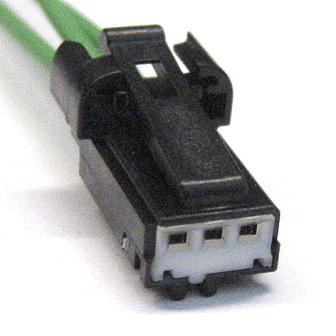

| Pigtail Kit Part Number WPT-911 |
