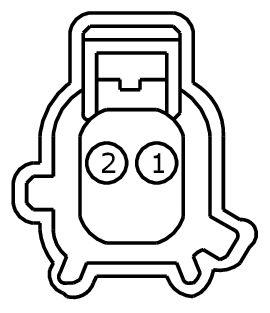

Connector End View (C567) - DRIVER DOOR SIDE IMPACT SENSOR

Connector:C567

Description

DRIVER DOOR SIDE IMPACT SENSOR

Color

Harness

14A584

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR236 (BU-OG)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) +
2	RR174 (WH-OG)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) -

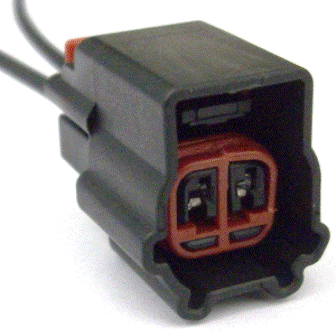

Available Pigtail Kits

Pigtail Kit Part Number

WPT-948

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EKB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Motor - Windshield Washer Fluid Pump

Sensor - Side Impact
