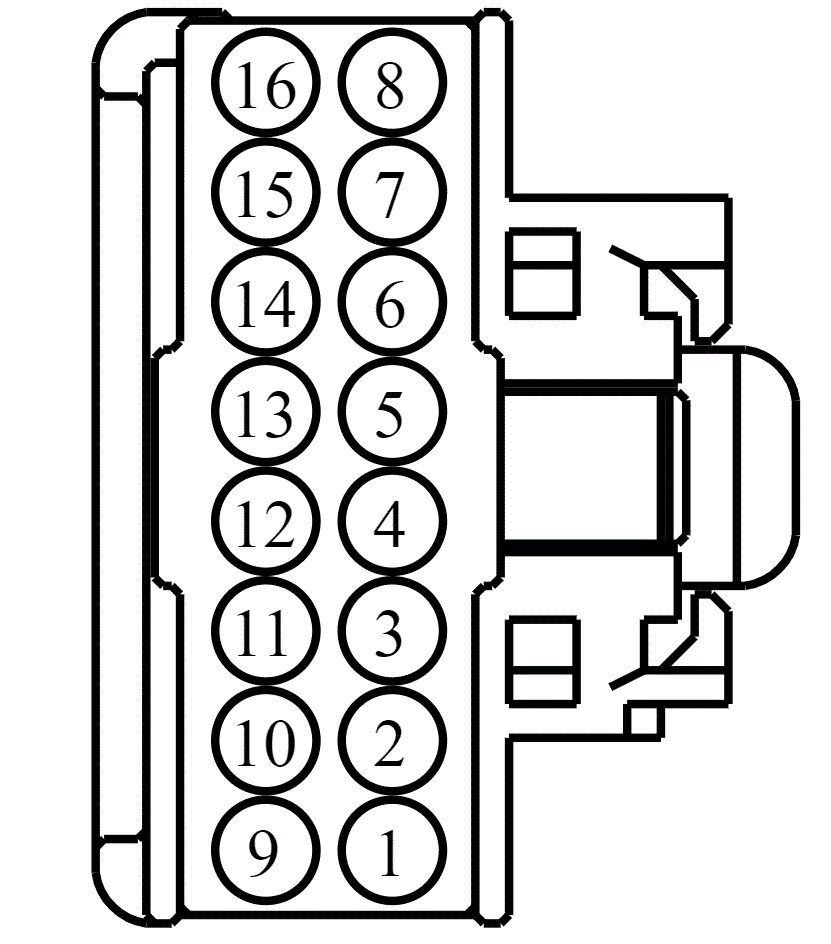

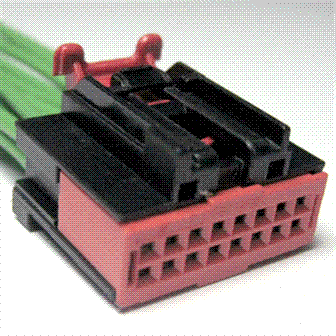

Connector End View (C521) - EXTERIOR MIRROR, LH
Connector:C521
Description
EXTERIOR MIRROR, LH
Color
Harness
14A584
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPM03 (BU-WH) | 22 | CTRL MOD. - LEFT MIRROR RIGHT | |
| 2 | CPM28 (BU-BN) | 22 | CTRL MOD. - LEFT MIRROR LEFT | |
| 3 | CPM03 (BU-WH) | 22 | CTRL MOD. - LEFT MIRROR DOWN | |
| 4 | CRD13 (GN-VT) | 22 | CTRL MOD. - HEATER MIRROR LEFT | |
| 5 | CLS01 (GY-OG) | 22 | CTRL MOD. - PUDDLE LAMP LEFT | |
| 6 | RPM05 (VT-GN) | 22 | CTRL MOD. - LEFT MIRROR RETURN | |
| 7 | CLS22 (GN-BN) | 22 | CTRL MOD. - TURN LAMP LEFT MIRROR + | |
| 8 | RRB06 (GY-VT) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER - | |
| 9 | CRB06 (GN-WH) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + | |
| 10 | CPM29 (GN) | 22 | CTRL MOD. - LEFT MIRROR UP | |
| 11 | LPM30 (GY-VT) | 22 | CTRL MOD. - SWITCH MIRROR DIRECTION | |
| 12 | VPM35 (YE-BU) | 22 | SENSOR - LEFT MIRROR POSITION # HORIZONTAL | |
| 13 | VPM36 (BN-YE) | 22 | SENSOR - LEFT MIRROR POSITION # VERTICAL | |
| 14 | RPM30 (YE) | 22 | CTRL MOD. - SWITCH MIRROR RETURN | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1152 |
Service Part Number: 3U2Z-14S411-AJD Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console -Inline (Female) Switch - Multifunction |
