Connector End View (C511) - INLINE
InlineC511
Description
INLINE
Color
Base Part #
Service Pigtail
See Below

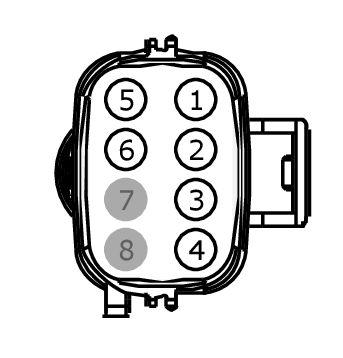

MALE
Harness 14A584
| Pin | Circuit | Gauge | Qualifier |
| 1 | CPK23 (YE-VT) | 20 | 14A584 |
| 2 | CPK19 (BU-GN) | 20 | 14A584 |
| 3 | VPK01 (BN-YE) | 22 | 14A584 |
| 4 | RPK01 (WH-GN) | 22 | 14A584 |
| 5 | RPK39 (VT-OG) | 22 | 14A584 |
| 6 | SBR03 (BU-RD) | 22 | 14A584 |
| 7 | * | * | 14A584 |
| 8 | * | * | 14A584 |

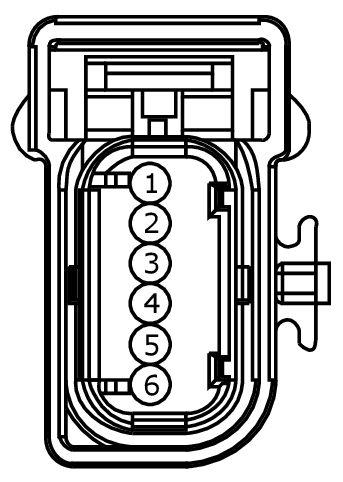

FEMALE
Harness 14F302
| Pin | Circuit | Gauge | Qualifier |
| 1 | CPK23 (YE-VT) | 22 | 14F302 |
| 2 | CPK19 (BU-GN) | 22 | 14F302 |
| 3 | CPK12 (YE) | 22 | 14F302 |
| 4 | CPK12 (GN-BN) | 22 | 14F302 |
| 5 | GD150 (BK-WH) | 22 | 14F302 |
| 6 | CPK15 (GN-WH) | 22 | 14F302 |

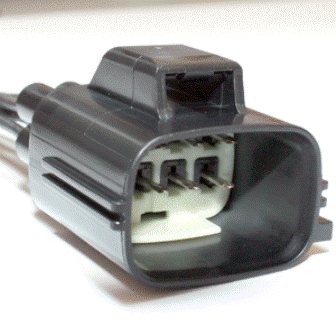

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-162 |
Service Part Number: 1U2Z-14S411-BTA Gauge: 16 Pin material: Tin Cavities: 8 Vehicle Uses: Fuel Pump/Sending Unit |
