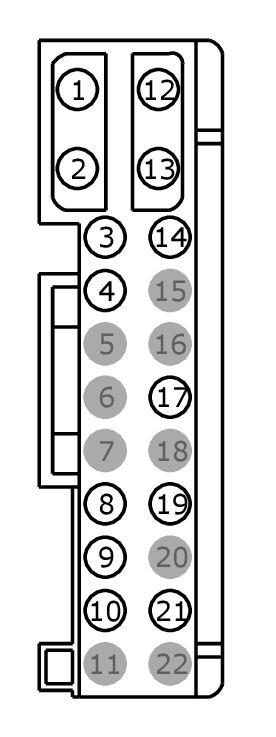

Connector End View (C501A) - DRIVER DOOR MODULE (DDM)
Connector:C501A
Description
DRIVER DOOR MODULE (DDM)
Color
BK
Harness
14A584
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPW34 (BU) | 12 | CTRL MOD. - WINDOW MOTOR DRIVER # UP | |
| 2 | SBR04 (GN-RD) | 12 | FUSE OR CIRCUIT BREAKER | |
| 3 | CPL02 (VT-GN) | 20 | CTRL MOD. - DOOR LOCK # DRIVER LOCK | |
| 4 | CPL51 (BU-GN) | 20 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | VPW32 (GY-BU) | 22 | CTRL MOD. - REAR DOOR CTRL MOD. DRIVER SIDE LIN BUS | |
| 9 | VPW39 (BU-WH) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2 | |
| 10 | VPW38 (YE-BU) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1 | |
| 11 | * | * | Not Used | |
| 12 | CPW35 (GN) | 12 | CTRL MOD. - WINDOW MOTOR DRIVER # DOWN | |
| 13 | GD235 (BK-GY) | 12 | GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT | |
| 14 | RPL63 (WH) | 22 | CTRL MOD. - DOOR LOCK # LATCH DRIVER | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | RPW37 (VT-GN) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS | |
| 18 | * | * | Not Used | |
| 19 | CPL30 (BU-BN) | 22 | SWITCH - LATCH DRIVER # UNLOCK | |
| 20 | * | * | Not Used | |
| 21 | LPW36 (WH-BN) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS | |
| 22 | * | * | Not Used |
| Available Pigtail Kits | |

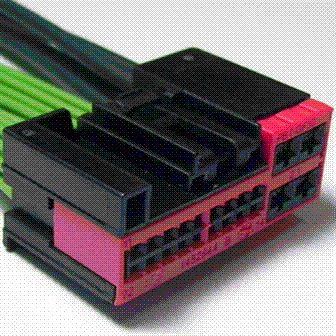

| Pigtail Kit Part Number WPT-1461 |
Service Part Number: GU2Z-14S411-DA Gauge: 14 20 Pin material: Tin & Silver Cavities: 22 Vehicle Uses Module - Driver Door Module - Passenger Door Module - Remote Keyless Entry |
