Connector End View (C474) - LUGGAGE COMPARTMENT POWER OUTLET SOCKET
Connector:C474
Description
LUGGAGE COMPARTMENT POWER OUTLET SOCKET
Color
BK
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBR27 (BU-RD) | 12 | FUSE - 27 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | GD351 (BK-GN) | 12 | GROUND - PILLAR D RIGHT |

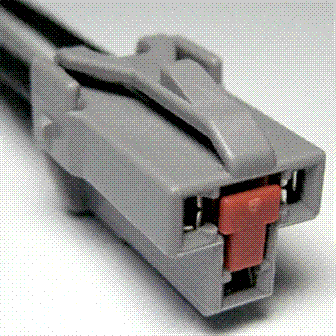

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1160 |
Service Part Number: 3U2Z-14S411-SJB Gauge: 12 Pin material: Tin Cavities: 3 Vehicle Uses Cigar Lighter Lamp - Ash Tray Power Point |
