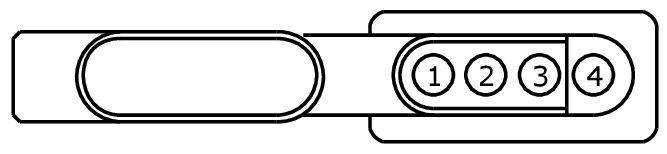

Connector End View (C439) - TRAILER SOCKET
Connector:C439
Description
TRAILER SOCKET
Color
Harness
15K868
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CAT09 (GN) | 14 | CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT | |
| 2 | CAT06 (YE) | 14 | CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT | |
| 3 | CAT11 (BN) | 14 | RELAY - TRAILER TOW PARK LAMPS | |
| 4 | GD351 (WH) | 14 | GROUND - PILLAR D RIGHT |

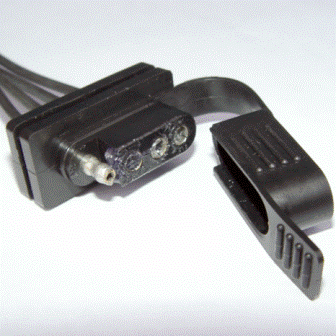

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-840 |
Service Part Number: 5U2Z-14S411-JA Gauge: 12 Pin material: Tin Cavities: 4 Vehicle Uses Trailer Tow - Vehicle Side |
