Connector End View (C438) - INLINE
InlineC438
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

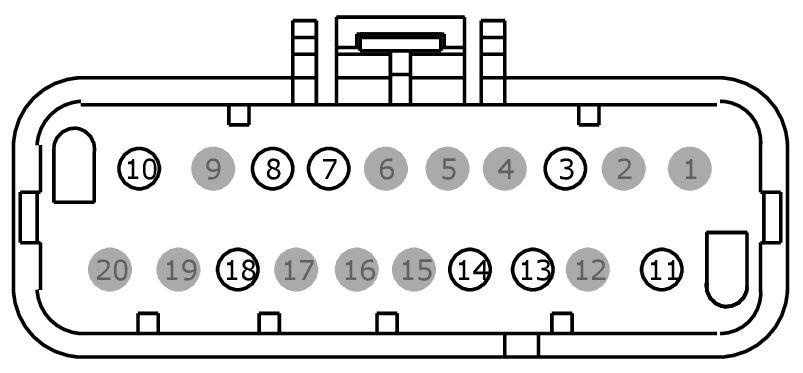

MALE
Harness 14A583
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | CLS45 (GN/BN) | 20 | |
| 3 | CLS45 (GN-BN) | 20 | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | GD349 (BK-GY) | 20 | |
| 8 | CBR29 (WH-VT) | 20 | |
| 9 | * | * | |
| 10 | SBR25 (RD) | 12 | |
| 11 | GD351 (BK-GN) | 10 | |
| 12 | * | * | |
| 13 | VMP35 (WH-BU) | 22 | |
| 14 | CRW02 (GY-BU) | 22 | |
| 15 | * | * | |
| 16 | * | * | |
| 17 | * | * | |
| 18 | CBB42 (GN) | 16 | |
| 19 | * | * | |
| 20 | * | * |

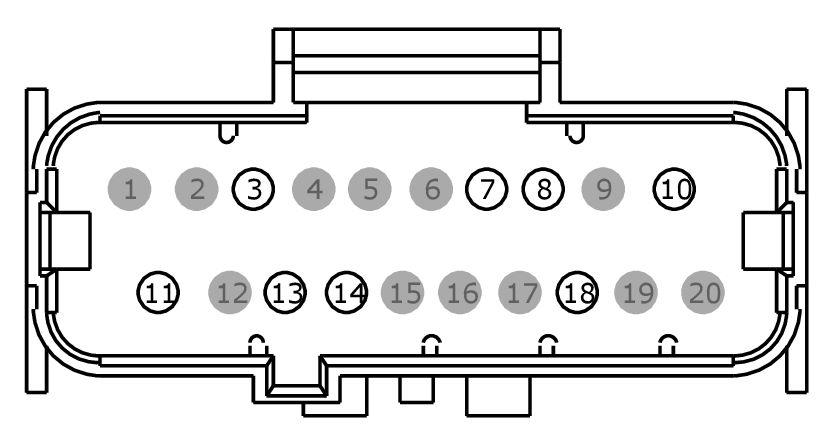

FEMALE
Harness 14D466
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | CLS45 (GN-BN) | 18 | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | GD349 (BK-GY) | 20 | |
| 8 | CBR29 (WH-VT) | 20 | |
| 9 | * | * | |
| 10 | SBR25 (RD) | 12 | |
| 11 | GD351 (BK-GN) | 12 | |
| 12 | * | * | |
| 13 | VMP35 (WH-BU) | 22 | |
| 14 | CRW02 (GY-BU) | 20 | |
| 15 | * | * | |
| 16 | * | * | |
| 17 | * | * | |
| 18 | CBB42 (GN) | 16 | |
| 19 | * | * | |
| 20 | * | * |
