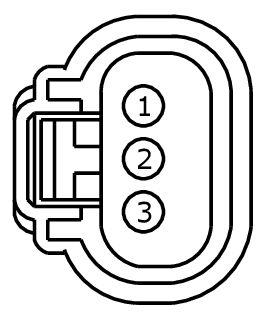

Connector End View (C435) - FUEL TANK PRESSURE (FTP) SENSOR
Connector:C435
Description
FUEL TANK PRESSURE (FTP) SENSOR
Color
BK
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VE922 (VT-GN) | 20 | TRANSDUCER - FUEL TANK PRESSURE (FTPT) | |
| 2 | RE230 (WH-VT) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER | |
| 3 | LE230 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) |
| Available Pigtail Kits | |

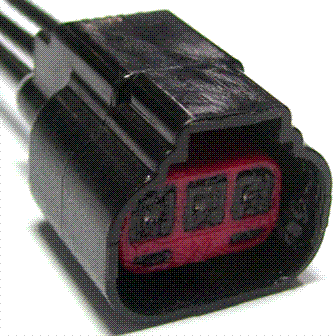

| Pigtail Kit Part Number WPT-990 |
Service Part Number: 8U2Z-14S411-ZB Gauge: 14 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position Sensor - Fuel Tank Pressure Transducer Sensor - Turbine Shaft Speed Switch - Fuel Delivery Pressure |
