Connector End View (C431) - INLINE
InlineC431
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

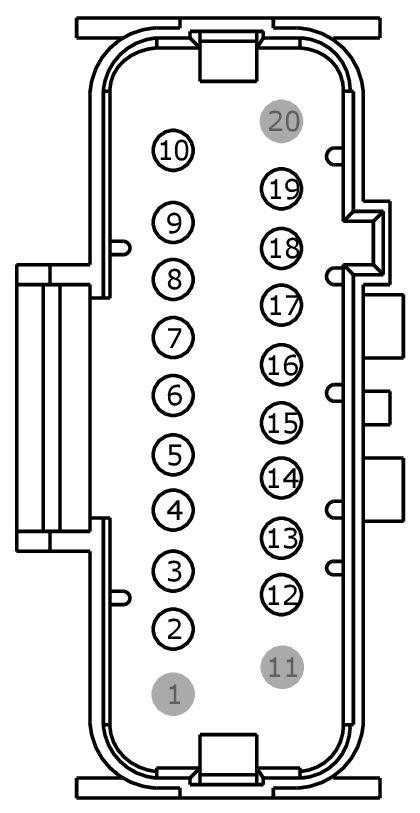

MALE
Harness 14A583
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | CPR57 (GN-WH) | 14 | |
| 3 | CPR58 (GN-OG) | 14 | |
| 4 | DPR57 (*) | 18 | |
| 5 | CLS04 (YE-VT) | 20 | |
| 6 | VDB07 (VT-OG) | 22 | |
| 7 | VDB06 (GY-OG) | 22 | |
| 8 | CPL84 (GN-BN) | 20 | |
| 9 | CPL44 (YE-OG) | 20 | manual liftgate |
| 9 | CPL81 (BN-VT) | 26 | |
| 10 | GD349 (BK-GY) | 20 | |
| 11 | * | * | |
| 12 | CPR55 (GN-BU) | 22 | |
| 13 | VPR53 (BU-WH) | 22 | |
| 14 | VPR54 (BU-BN) | 22 | |
| 15 | RPR55 (WH-BU) | 22 | |
| 16 | CPL45 (BN) | 22 | |
| 17 | VMP31 (BU) | 20 | |
| 18 | RMP31 (GN) | 20 | |
| 19 | DMP31 (BARE) | 20 | |
| 20 | * | * |

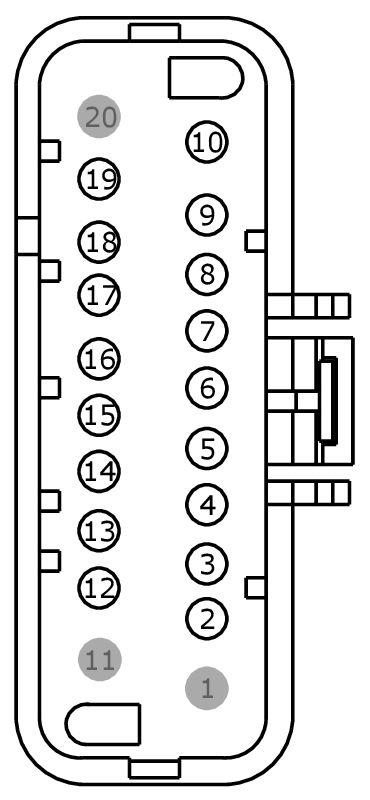

FEMALE
Harness 17N400
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | CPR57 (GN-WH) | 14 | |
| 3 | CPR58 (GN-OG) | 14 | |
| 4 | DPR57 (BARE) | 18 | |
| 5 | CLS04 (YE-VT) | 20 | |
| 6 | VDB07 (VT-OG) | 22 | |
| 7 | VDB06 (GY-OG) | 22 | |
| 8 | CPL84 (GN-BN) | 20 | |
| 9 | CPL44 (YE-OG) | 20 | |
| 10 | GD349 (BK-GY) | 20 | |
| 11 | * | * | |
| 12 | CPR55 (GN-BU) | 20 | |
| 13 | VPR53 (BU-WH) | 20 | |
| 14 | VPR54 (BU-BN) | 20 | |
| 15 | RPR55 (WH-BU) | 20 | |
| 16 | CPL45 (BN) | 22 | |
| 17 | VMP31 (BU) | 20 | |
| 18 | RMP31 (GN) | 20 | |
| 19 | DMP31 (BARE) | 20 | |
| 20 | * | * |
