Connector End View (C412) - REAR LAMP ASSEMBLY, LH
Connector:C412
Description
REAR LAMP ASSEMBLY, LH
Color
BK
Harness
14014
Base Part #
PIA
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD349 (BK-GY) | 18 | GROUND - PILLAR D LEFT # 2ND POINT (6L2T) | |
| 2 | CLS45 (VT-GN) | 20 | CTRL MOD. - PARK LAMP LEFT REAR | |
| 3 | CLS45 (VT-GN) | 20 | CTRL MOD. - STOP LAMP LEFT REAR | |
| 4 | CLS23 (GY-OG) | 18 | CTRL MOD. - TURN LAMP LEFT REAR | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used |

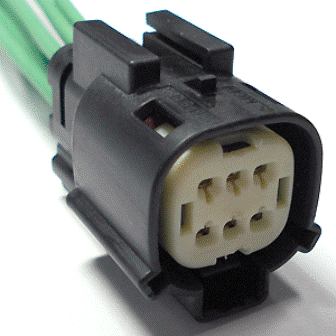

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-971 |
Service Part Number: 3U2Z-14S411-FEAB Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses Connector - Inline Lamp - Headlamp - High/Low Beam Lamp - Park/Turn/Stop Motor - Engine Cooling Fan Motor - Running Board |
