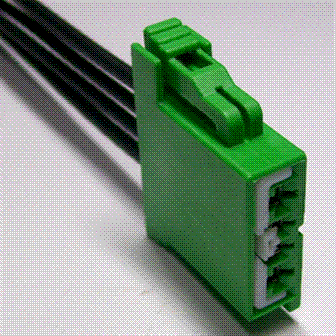

Connector End View (C359B) - HEATED SEAT MODULE, LEFT FRONT

Connector:C359B

Description

HEATED SEAT MODULE, LEFT FRONT

Color

Harness

14D231

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS02 (YE-BU)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +
2	RHS05 (YE-VT)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.
3	VHS26 (VT)	20	SENSOR - CUSHION TEMP. DRIVER
4	RHS01 (WH-VT)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1319

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-GA

Gauge:

14 16

Pin material:

Tin

Cavities:

Vehicle Uses

Element - Heated Seat
