Connector End View (C356) - SEAT TRACK POSITION SENSOR, LEFT FRONT
Connector:C356
Description
SEAT TRACK POSITION SENSOR, LEFT FRONT
Color
BK
Harness
14D231
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD901 (BK) | 20 | GROUND - PASSENGER SEAT # RESTRAINTS CLEAN | |
| 2 | VR215 (YE-VT) | 20 | SENSOR - SEAT TRACK POSITION DRIVER |

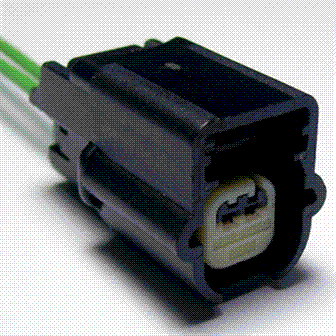

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1314 |
Service Part Number: 8U2Z-14S411-AAC Gauge: 20 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer |
