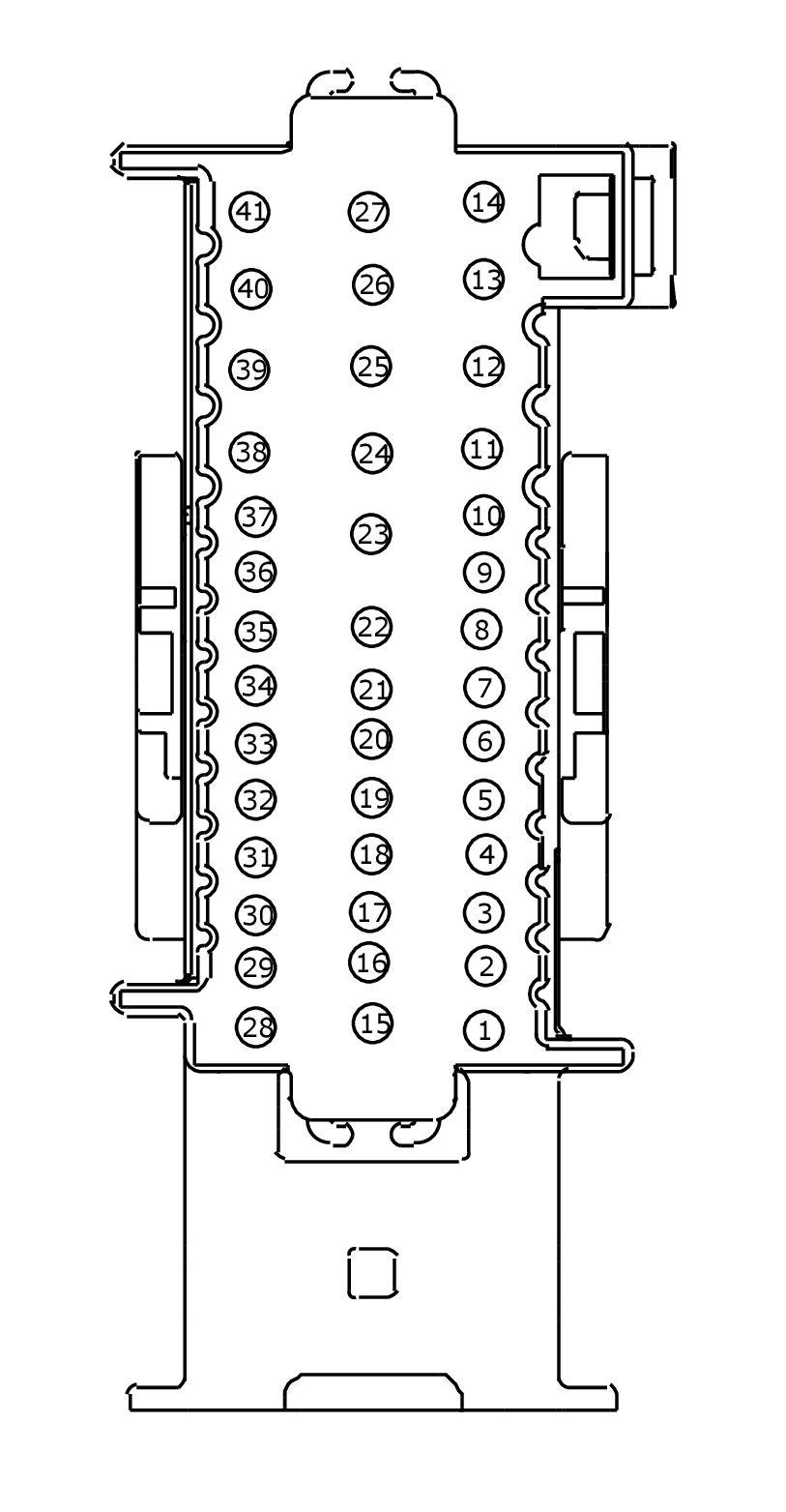

Connector End View (C1035C) - BATTERY JUNCTION BOX (BJB)
Connector:C1035C
Description
BATTERY JUNCTION BOX (BJB)
Color
Harness
12A690/12C508
Base Part #
14A067
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | 2.0L |
| 1 | RE407 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | 2.5L |
| 1 | RE456 (BU-OG) | 20 | CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER - | 1.5L |
| 2 | CDC12 (BU-YE) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) | 1.5L |
| 2 | CDC35 (BU-WH) | 20 | SWITCH - IGNITION # START | 2.0L/2.5L |
| 3 | CCB08 (VT-WH) | 20 | SWITCH - BRAKE ON/OFF (BPP) NORMAL OPEN | |
| 4 | CE436 (VT-OG) | 20 | CTRL MOD. -WAKE UP PCM | |
| 5 | VE702 (BU-WH) | 20 | SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) | |
| 6 | CE114 (GN-BU) | 20 | CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) | 2.0L/2.5L |
| 6 | VE518 (BN-WH) | 20 | MONITOR - FUEL PUMP (FPM) | 1.5L |
| 7 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 8 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 9 | RE137 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2) | |
| 10 | LE137 (BU-GY) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2) | |
| 11 | CE515 (YE-GY) | 18 | DRIVER - FUEL PUMP POWER (FPPWR) | 2.0L/2.5L |
| 11 | RE230 (WH-VT) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER | 1.5L |
| 12 | LE230 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) | |
| 13 | VE922 (VT-GN) | 20 | TRANSDUCER - FUEL TANK PRESSURE (FTPT) | 2.0L/2.5L |
| 13 | VE518 (BN-WH) | 20 | MONITOR - FUEL PUMP (FPM) | 1.5L |
| 14 | VE225 (YE-OG) | 20 | CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) | |
| 15 | CDC79 (WH-GN) | 20 | CTRL MOD. - BODY # VOLTAGE QUALITY MODULE FEED | 2.0L |
| 15 | RE406 (GY-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) | 2.5L |
| 16 | CE261 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES) | 2.0L/2.5L |
| 17 | CES09 (VT-OG) | 20 | SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + | |
| 18 | LE136 (GN-OG) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1) | |
| 19 | RE136 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1) | |
| 20 | CBB38 (GY-BU) | 20 | FUSE OR CIRCUIT BREAKER | 1.5L |
| 20 | CDC34 (WH-OG) | 20 | SWITCH - IGNITION # RUN; START | 2.0L/2.5L |
| 20 | CBB39 (VT-WH) | 20 | FUSE - 39 OR CIRCUIT BREAKER | 1.5L |
| 21 | VDC46 (BU-BN) | 20 | CTRL MOD. - GENERATOR (ALTERNATOR) LIN BUS (NON-PCM CONTROLLED) | 1.5L |
| 21 | VDN06 (WH-GN) | 20 | CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 | 2.5L |
| 21 | VDN08 (VT-BN) | 20 | CTRL MOD. - LIN BUS # ACTIVE GRILLE SHUTTER MODULE | 2.0L |
| 22 | VE701 (YE-OG) | 20 | SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) | |
| 23 | CBB08 (GY-YE) | 16 | FUSE OR CIRCUIT BREAKER | 2.0L/2.5L |
| 23 | CBB32 (GN-VT) | 14 | FUSE OR CIRCUIT BREAKER | 1.5L |
| 24 | CBB35 (YE-GY) | 12 | FUSE - 35 OR CIRCUIT BREAKER | 1.5L |
| 24 | CBK02 (GN) | 16 | FUSE OR CIRCUIT BREAKER | 2.0L/2.5L |
| 25 | CBB34 (VT-BN) | 16 | FUSE OR CIRCUIT BREAKER | 1.5L |
| 25 | CBK03 (GY) | 20 | FUSE OR CIRCUIT BREAKER | 2.0L/2.5L |
| 26 | CBB33 (WH-BN) | 18 | FUSE OR CIRCUIT BREAKER | 1.5L |
| 26 | CBK04 (VT) | 12 | FUSE OR CIRCUIT BREAKER | 2.0L |
| 26 | CBK04 (VT) | 18 | FUSE OR CIRCUIT BREAKER | 2.5L |
| 27 | CBK01 (BU) | 18 | FUSE OR CIRCUIT BREAKER | 2.5L |
| 27 | CE420 (GY-VT) | 20 | CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) | 1.5L |
| 28 | VE750 (GN-BU) | 20 | SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) | 2.0L/2.5L |
| 28 | VH407 (YE-GN) | 20 | SENSOR - AMBIENT TEMP. | 1.5L |
| 29 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | 2.0L/2.5L |
| 29 | VE922 (VT-GN) | 20 | TRANSDUCER - FUEL TANK PRESSURE (FTPT) | 1.5L |
| 30 | CE173 (WH-GN) | 18 | CTRL MOD. - POWERTRAIN # CHANGEOVER VALVE CONTROL (EVAPSV) | 2.5L |
| 31 | VE462 (WH-GN) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE | 2.5L |
| 32 | VE203 (VT) | 20 | CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) | 2.0L/2.5L |
| 32 | CEC02 (GN-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL (FC1) | 1.5L |
| 33 | CDC12 (YE) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) | |
| 34 | CDC12 (BU-WH) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) | 1.5L |
| 34 | CDC54 (WH-GN) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) | 2.0L/2.5L |
| 35 | CE302 (YE-BU) | 20 | CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) | |
| 36 | CH109 (WH-OG) | 20 | CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH | 1.5L |
| 36 | CH302 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) | 2.0L/2.5L |
| 37 | CH401 (VT-WH) | 18 | RELAY - A/C CLUTCH | |
| 38 | CET34 (BN-GN) | 20 | SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS) | 2.0L/2.5L |
| 38 | RE239 (GN-VT) | 20 | CTRL MOD. - SIGNAL RETURN | 1.5L |
| 39 | VE239 (VT) | 20 | CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER COOLANT TEMPERATURE (CACCT) SENSOR | 1.5L |
| 39 | CET43 (GY) | 18 | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) | 2.5L |
| 39 | CET43 (GY) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) | 2.0L |
| 40 | CET42 (GN-VT) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) | 2.0L |
| 40 | CET42 (GN-VT) | 18 | SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) | 2.5L |
| 40 | CE112 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # CANISTER PURGE PUMP CONTROL (CANPPC) | 1.5L |
| 41 | CDC25 (BN-GN) | 12 | RELAY - STARTER |
