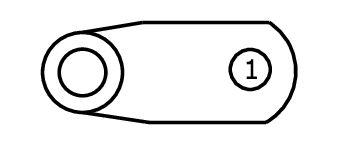

Connector End View (C1035A) - BATTERY JUNCTION BOX (BJB)
Connector:C1035A
Description
BATTERY JUNCTION BOX (BJB)
Color
Harness
14K733
Base Part #
14A067
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
SBF03 (BU-RD) |
4 |
FUSE OR CIRCUIT BREAKER |
