Connector End View (C1029) - EVAPORATIVE EMISSION PURGE VALVE
Connector:C1029
Description
EVAPORATIVE EMISSION PURGE VALVE
Color
BK
Harness
12A690/12C508
Base Part #
9C915
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE113 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (EVAPCP) | 2.0L |
| 1 | CE113 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (EVAPCP) | 1.5L |
| 2 | CBB33 (WH-BN) | 18 | FUSE OR CIRCUIT BREAKER | 1.5L |
| 2 | CBK02 (GN) | 16 | FUSE OR CIRCUIT BREAKER | 2.0L |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1274 |

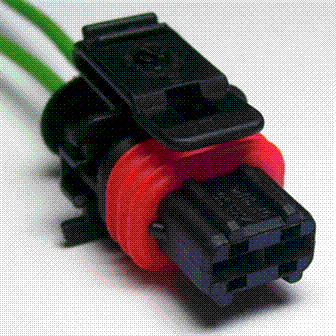

Service Part Number: BU2Z-14S411-BCA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Valve - Vapor Management |
