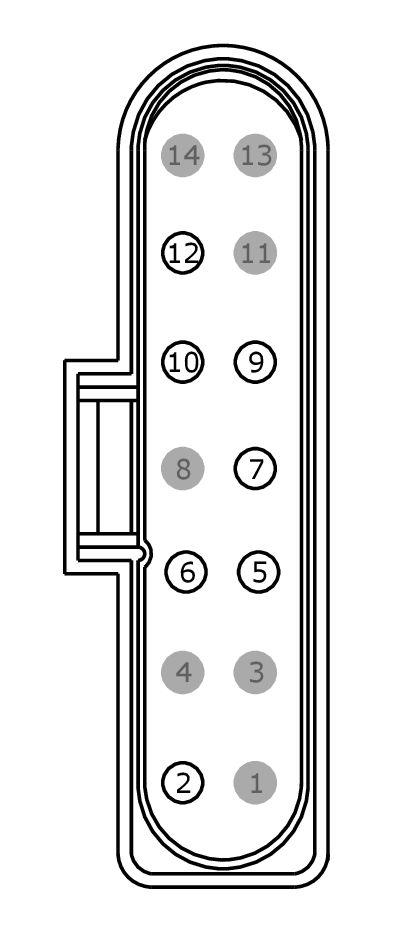

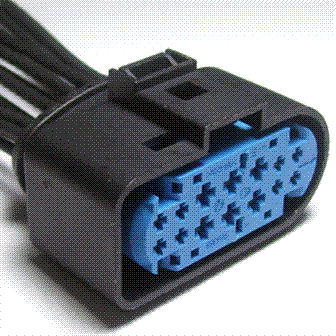

Connector End View (C1021A) - HEADLAMP ASSEMBLY, LH
Connector:C1021A
Description
HEADLAMP ASSEMBLY, LH
Color
BK
Harness
14K733
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | CLF61 (GY-BU) | 18 | CTRL MOD. - DAYTIME RUNNING LIGHT LEFT | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | CLF02 (GY-BN) | 16 | CTRL MOD. - BEAM HIGH LEFT | |
| 6 | CLF06 (BN-GN) | 16 | CTRL MOD. - CORNERING LAMP LEFT | |
| 7 | GD121 (BK-YE) | 14 | GROUND - FENDER FRONT LEFT # 2ND POINT | |
| 8 | * | * | Not Used | |
| 9 | GD121 (BK-YE) | 14 | GROUND - FENDER FRONT LEFT # 2ND POINT | |
| 10 | CLF04 (BN-BU) | 16 | CTRL MOD. - BEAM LOW LEFT | |
| 11 | * | * | Not Used | |
| 12 | CLS06 (GN-OG) | 20 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1357 |
Service Part Number: BU2Z-14S411-LA Gauge: 16 Pin material: Tin (greased) Cavities: 14 Vehicle Uses Lamp - Headlamp - High/Low Beam |
