Parking Assist Control Module (PAM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions.
- Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel .

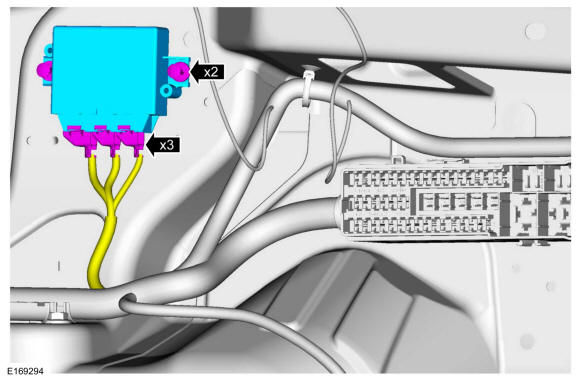

- Remove the PAM.
- Disconnect the electrical connectors.
- Remove the push-pins and the PAM.
