Parking Aid

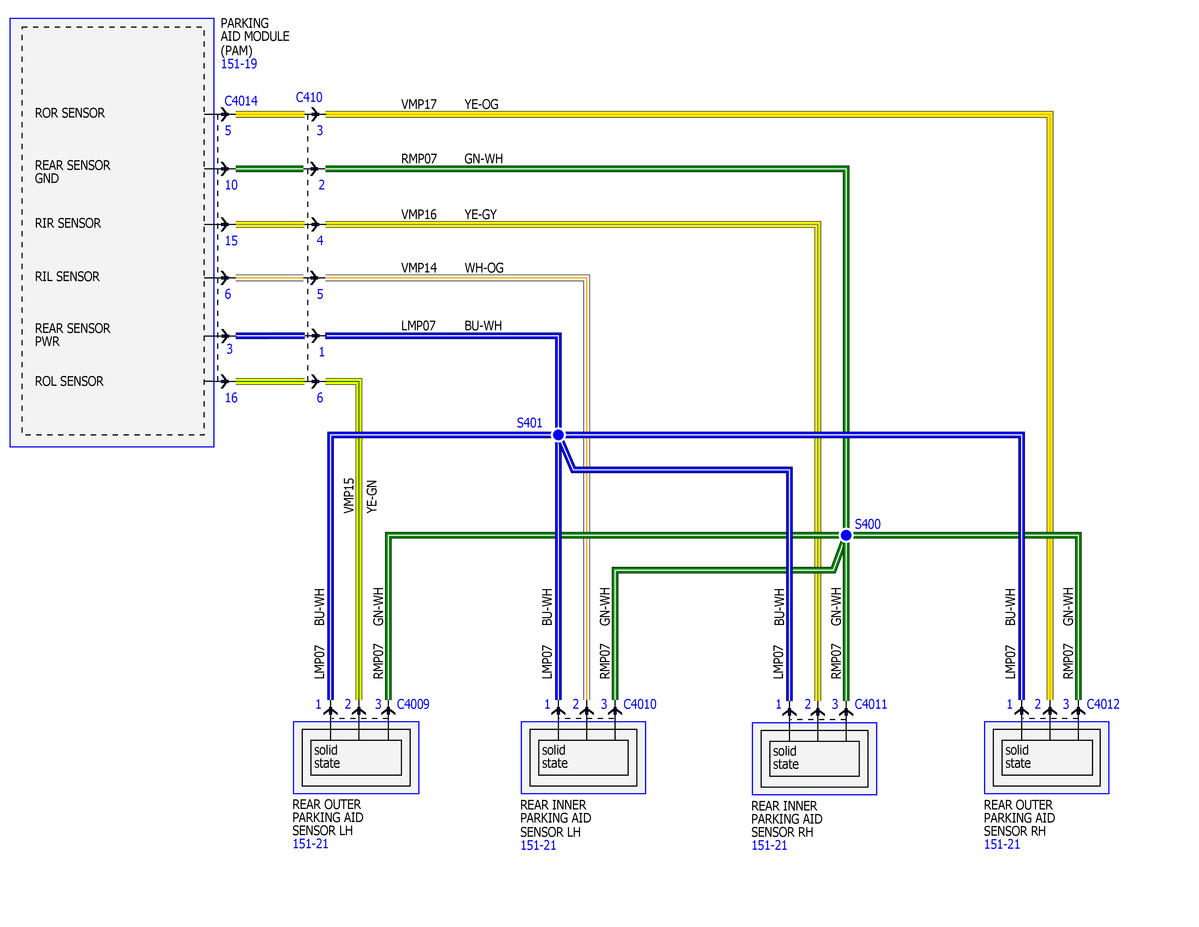

Fig 1: Parking Aid Wiring Diagram (1 Of 3)
GFDWR27037Courtesy of FORD MOTOR COMPANY

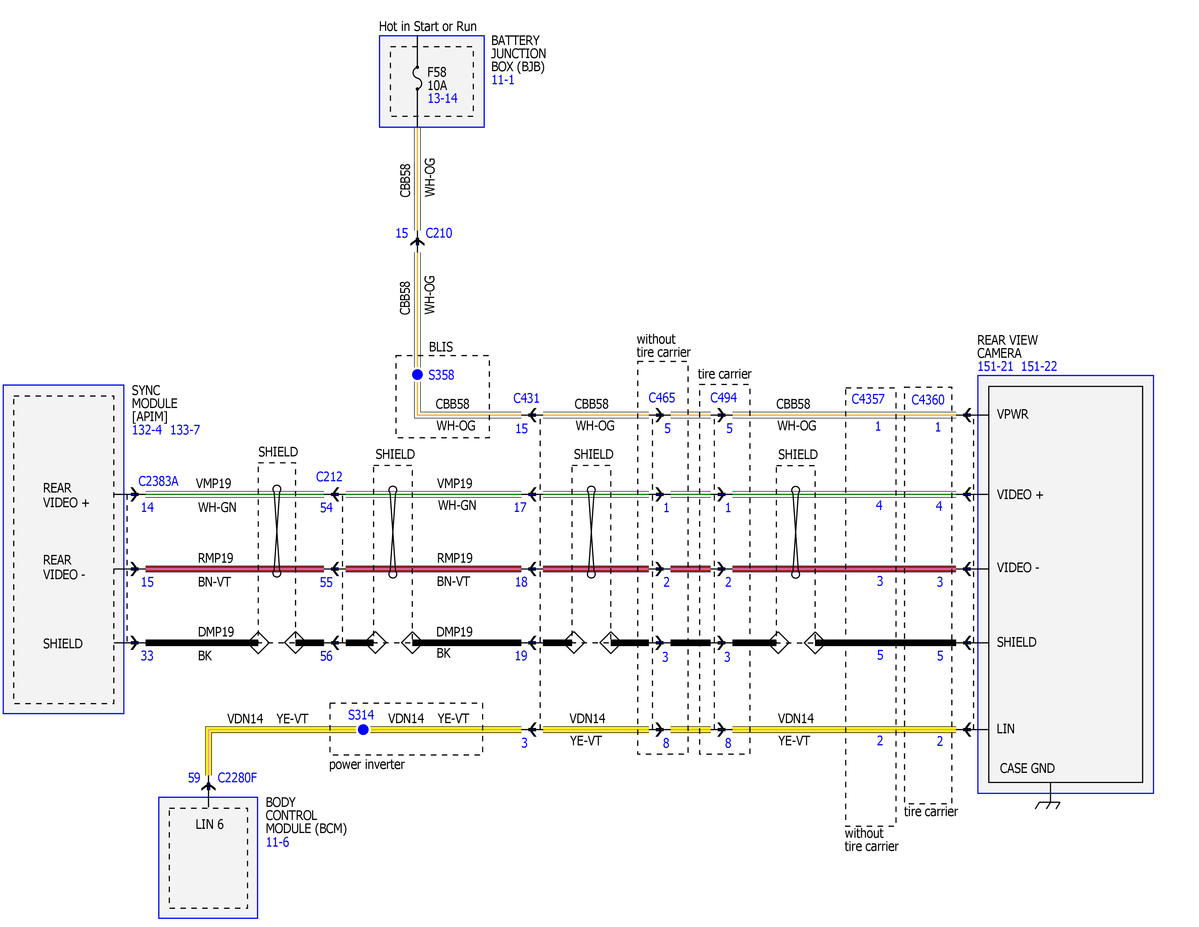

Fig 2: Parking Aid Wiring Diagram (2 Of 3)
GFDWR27038Courtesy of FORD MOTOR COMPANY

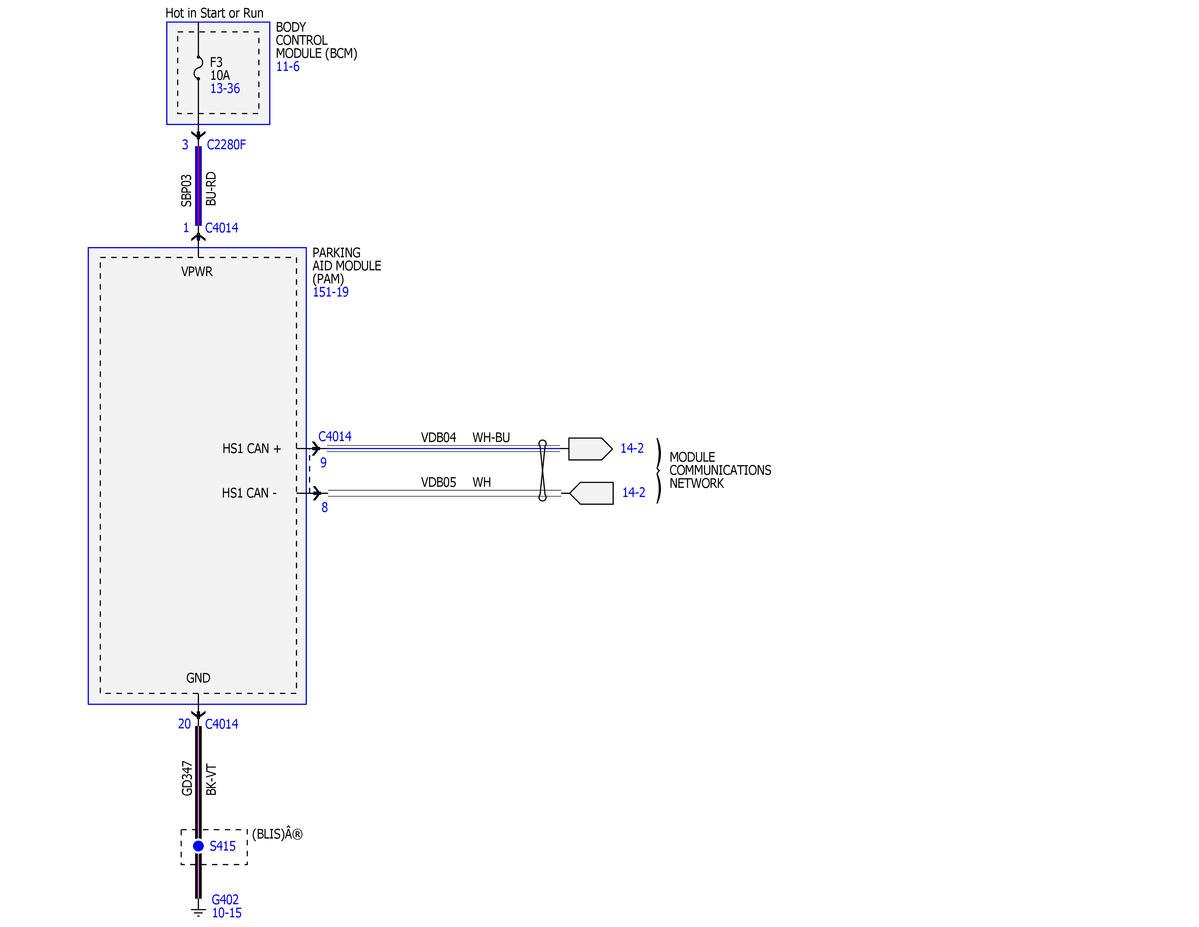

Fig 3: Parking Aid Wiring Diagram (3 Of 3)
GFDWR27039Courtesy of FORD MOTOR COMPANY
