Pinpoint Tests D: Crankshaft Position (CKP) Sensor: Introduction

WARNING: This page is about a different variant/trim than selected.

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

CKP sensor (6C315)
harness circuits: CKP, SIGRTN and VREF
PCM (12A650)

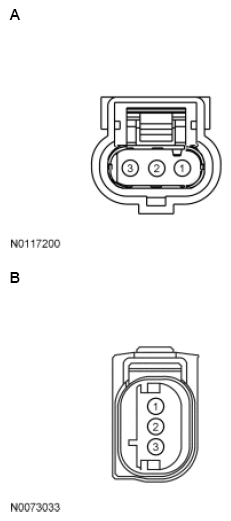

Fig 1: Crankshaft Position (CKP) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	3 2 1	CKP SIGRTN VREF
All other vehicles	B	3 2 1	CKP SIGRTN VREF

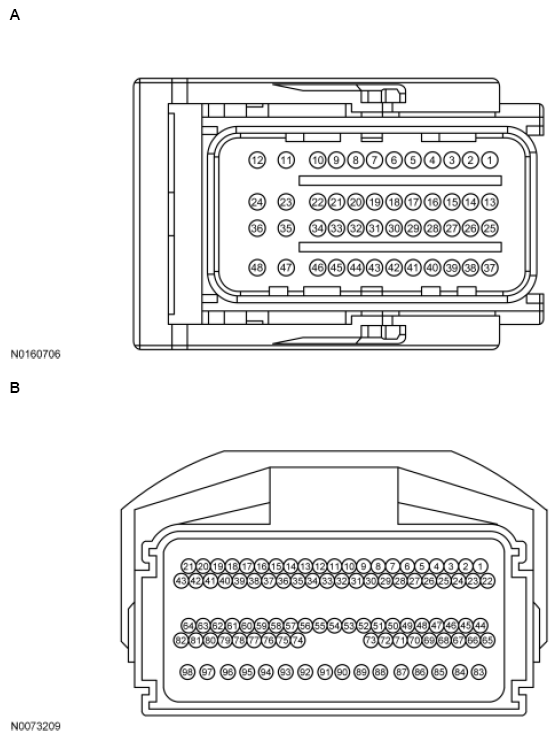

Fig 2: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	32	CKP
All other vehicles	B	33	CKP
