Pinpoint Tests Ai: Brake Pedal Position (BPP) Switch: Introduction

WARNING: This page is about a different variant/trim than selected.

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

BPP switch (13480)
harness circuits: B+, BPP and BPS
PCM (12A650)

Fig 1: Brake Pedal Position (BPP) Switch Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
3	GND (Ground)
2	BPS (Brake Pressure Switch)

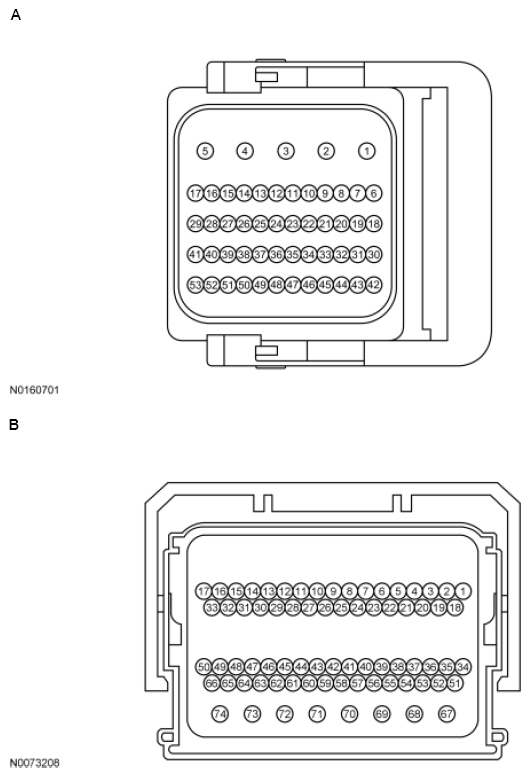

Fig 2: Powertrain Control Module-B (PCM-B) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	12 46	BPS BPP
All other vehicles	B	46 13	BPS BPP
