Pinpoint Tests AZ: Exhaust Gas RECIRCULATION (EGR) Cooler System: Introduction

WARNING: This page is about a different variant/trim than selected.

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: EGRCBV and VPWR
EGR cooler (9F464) (9V466)
PCM (12A650)

Fig 1: Exhaust Gas Recirculation (EGR) Cooler Bypass Valve Solenoid Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
2	EGRCBV (Exhaust Gas Recirculation Cooler Bypass Valve)
1	VPWR (Vehicle Power)

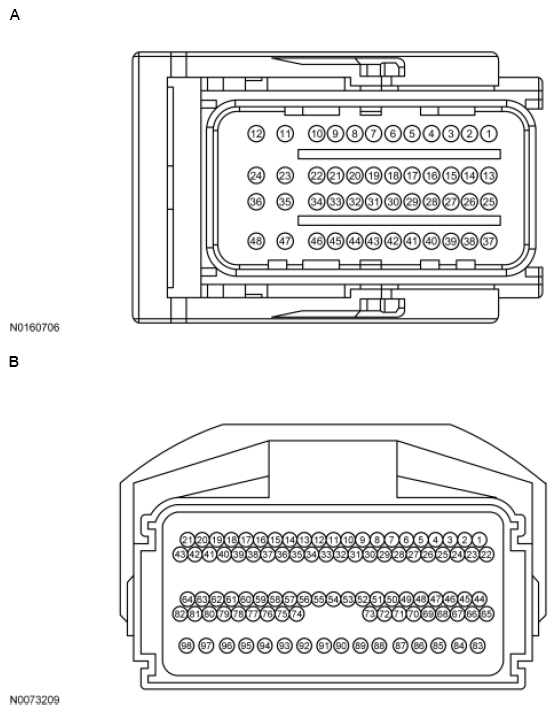

Fig 2: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	39	EGRCBV
All other vehicles	B	66	EGRCBV
