Pinpoint Tests AK: Turbocharger Actuator: Introduction
WARNING: This page is about a different variant/trim than selected.
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- harness circuits: VPWR and VGTC
- turbocharger actuator (9J559)
- PCM (12A650)

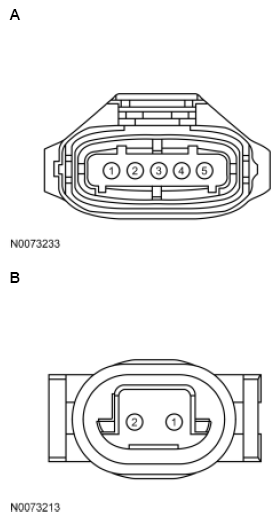

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Transit | A | 2 1 4 3 5 |
VGTVCL VGTVCH VGTP SIGRTN VREF |
| All other vehicles | B | 1 2 |
VGTC VPWR |

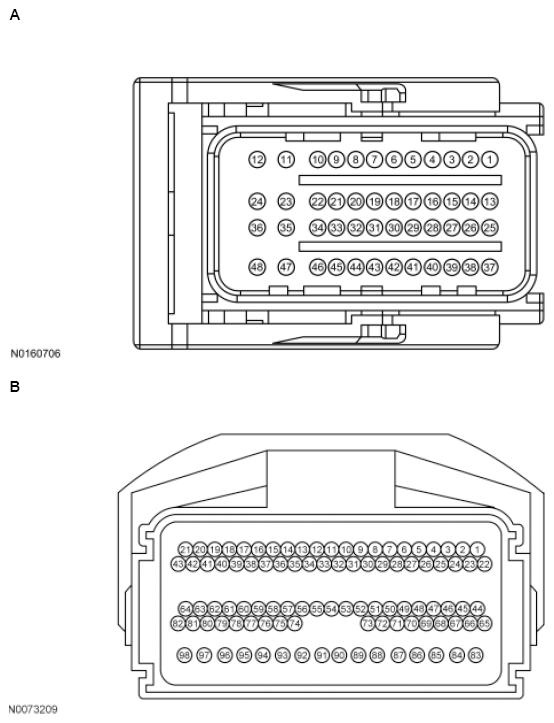

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Transit | A | 42 41 17 |
VGTVCL VGTVCH VGTP |
| All other vehicles | B | 24 | VGTC |
