Throttle Body: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Detach the CAC temperature sensor wire harness retainer and then disconnect the CAC temperature sensor electrical connector.
- 5.
- 1.

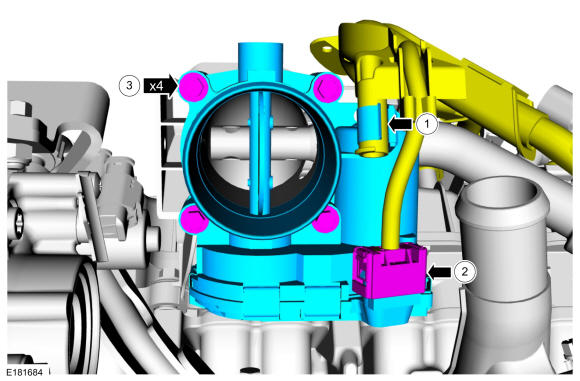

Detach the throttle body wire harness retainer.
- 2.
Disconnect the throttle body electrical connector
- 3.
Remove the throttle body retaining bolts and then remove the throttle body.

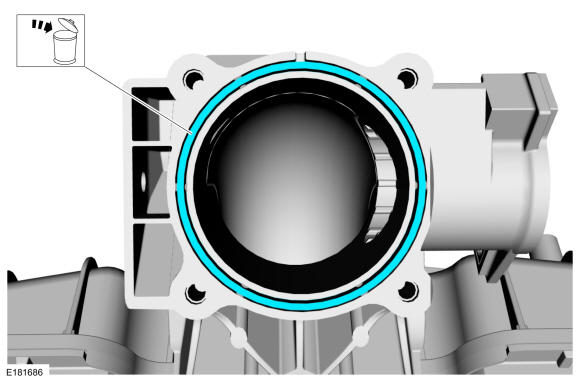

- 1.
