Throttle Body: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:

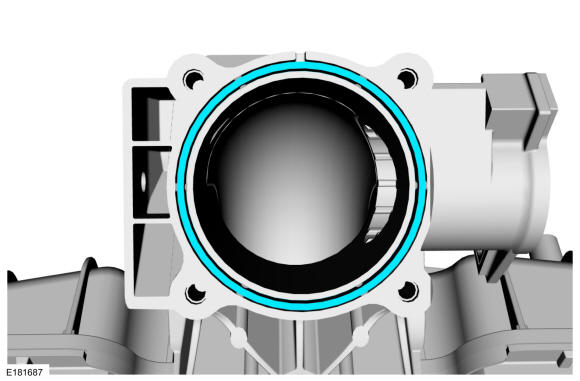

Make sure that the mating faces are clean and free of foreign material.

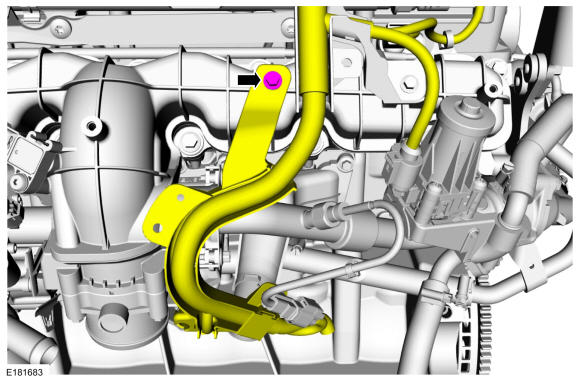

- 2.
- 1.

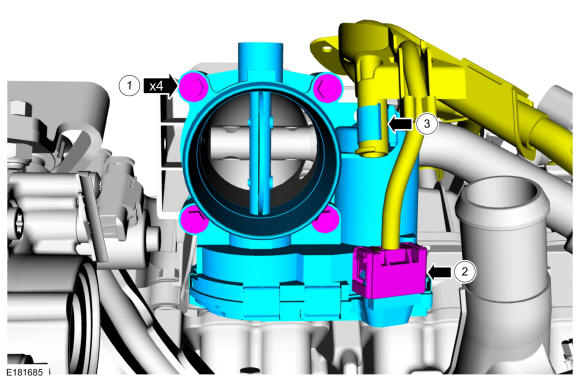

Install the throttle body, then install and tighten the throttle body retaining bolts.Torque: 62 lb.in (7 Nm)
- 2.
Connect the throttle body electrical connector.
- 3.
Attach the throttle body wire harness retainer.
- 1.
- 4.NOTE: The throttle body inlet tube must be seated within 0.0787in (2mm) of the hose stops.
Install the throttle body inlet tube, then tighten the throttle body inlet tube clamps.
Torque: 44 lb.in (5.0 Nm)
- 5.
Connect the CAC temperature sensor electrical connector and then attach the CAC temperature sensor wire harness retainer.
