Section 21 (Engine Controls - Fuel Charging And Controls - 3.2L DURATORQ-TDCI (148KW/200PS) - Puma)
>>
Removal And Installation
>>
Fuel Pump Driver Module (FPDM)
>>
Installation
Fuel Pump Driver Module (FPDM): Installation
WARNING:
This page is about a different variant/trim than selected.

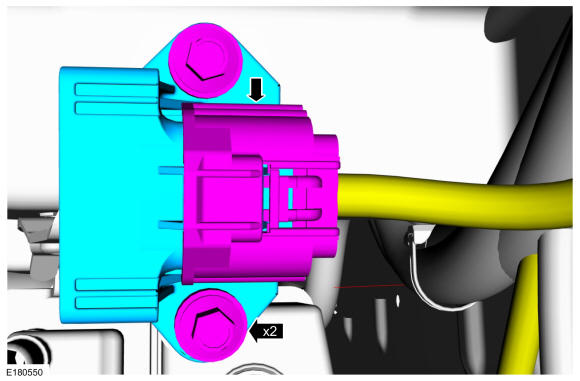

Gas engine
1.
Install the FPDM and the FPDM mounting bolts.
Torque: 93 lb.in (10.5 Nm)
Courtesy of FORD MOTOR COMPANY

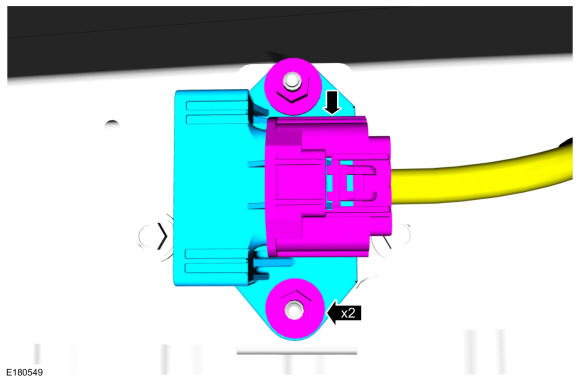

Diesel engine
2.
Install the FPDM and the FPDM mounting nuts.
Torque: 93 lb.in (10.5 Nm)
Courtesy of FORD MOTOR COMPANY
