Fuel Charging and Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

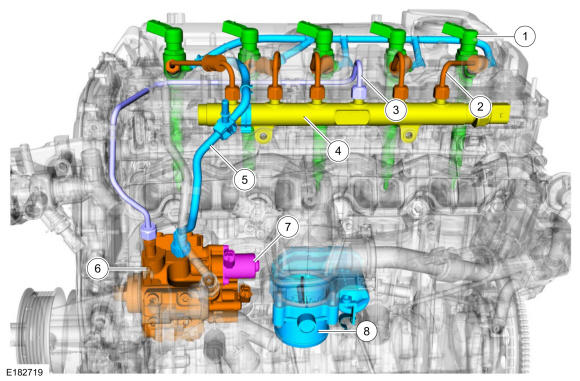

3.2L Duratorq TDCi Puma
| Item | Description |
|---|---|
| 1 | Fuel injector |
| 2 | Fuel injector supply tube |
| 3 | Fuel rail supply tube |
| 4 | Fuel rail |
| 5 | Fuel return line |
| 6 | Fuel injection pump |
| 7 | Fuel metering valve |
| 8 | Throttle Body (TB) |
Fuel Injector IQA Code 3.2L Duratorq TDCi Puma
| Item | Description |
|---|---|
| 1 | Ford part number (example) |
| 2 | Fuel injector IQA code |

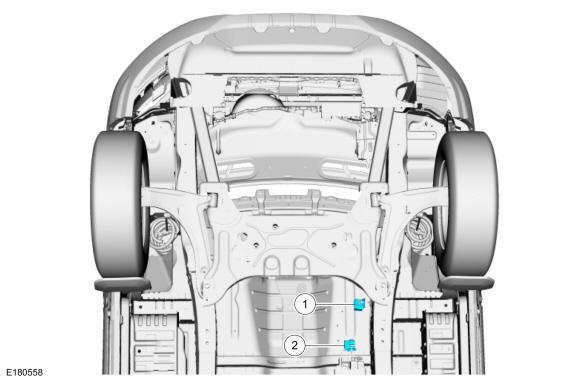

FPDM
| Item | Description |
|---|---|
| 1 | Diesel engine FPDM |
| 2 | Gas engine FPDM |
