Glow Plug Relay: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.

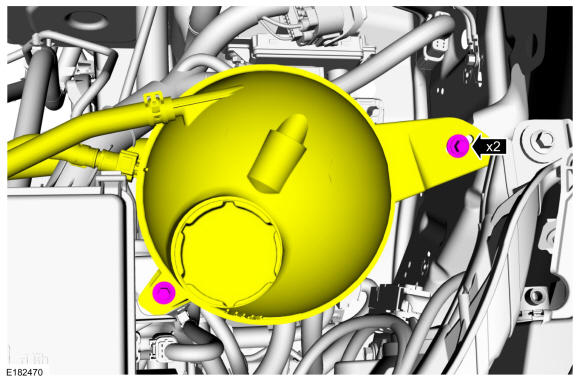

Remove the coolant reservoir tank bolts and position the coolant reservoir tank aside.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

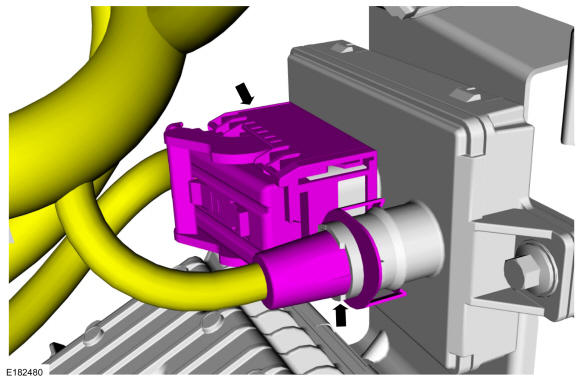

Disconnect the glow plug relay electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

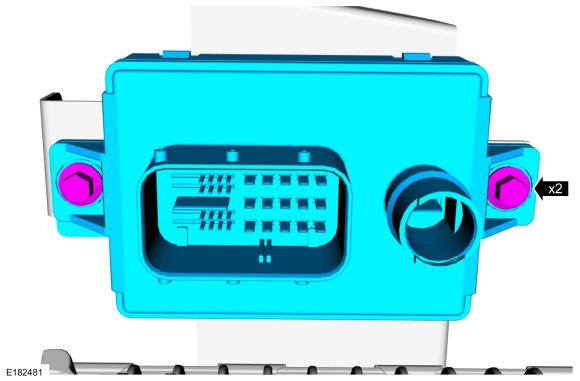

Remove the glow plug relay bolts and remove the glow plug relay.
 Courtesy of FORD MOTOR COMPANY
|
