Section 20 (Glow Plug System - 3.2L DURATORQ-TDCI (148KW/200PS) - Puma)
>>
Description And Operation
>>

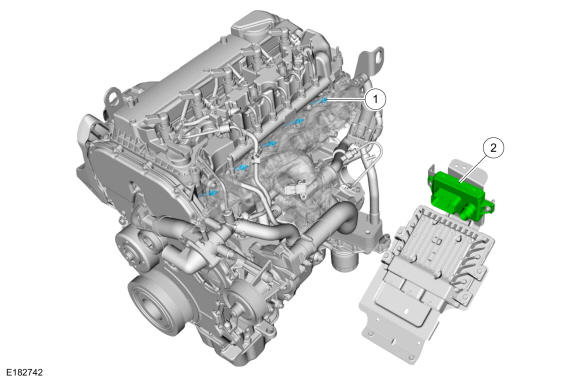

Glow Plug System - Component Location
>>
3.2L Duratorq TDCi Puma
3.2L Duratorq TDCi Puma
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Glow plug
2
Glow plug relay
