Turbocharger Oil Supply Tube: Removal

WARNING: This page is about a different variant/trim than selected.

1.

Refer to: Jacking and Lifting - Overview .

2.

Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

3.

Remove the lower turbocharger heat shield bolt.

GFD144456

Courtesy of FORD MOTOR COMPANY

4.

Remove the upper turbocharger heat shield bolts and the turbocharger heat shield.

GFD144457

Courtesy of FORD MOTOR COMPANY

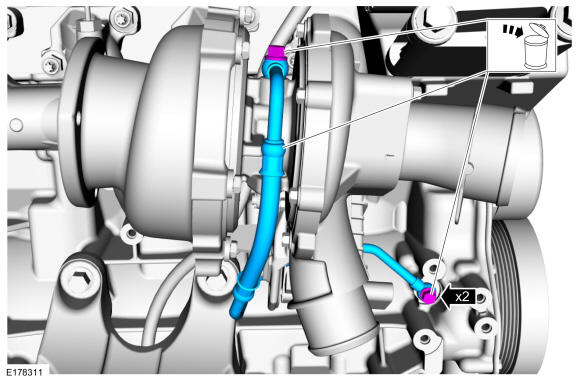

5.

Remove the turbocharger oil feed tube assembly and discard the turbocharger oil feed tube assembly.

GFD144458

Courtesy of FORD MOTOR COMPANY
