Turbocharger Oil Supply Tube: Installation
WARNING: This page is about a different variant/trim than selected.
- 1.

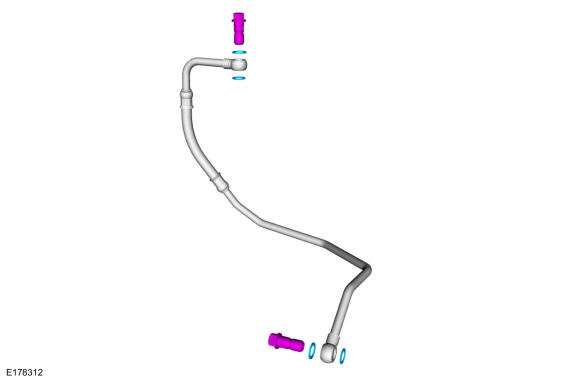

Make sure a new turbocharger oil supply tube assembly with new turbocharger oil supply tube bolts and new turbocharger oil supply tube sealing washers are installed.
- 2.
- 1.
Install the new turbocharger oil feed tube assembly with new turbocharger oil feed tube bolts and new turbocharger oil feed tube sealing washers.Torque: 177 lb.in (20 Nm)
- 2.
Torque: 177 lb.in (20 Nm)
- 1.
- 3.
Install the turbocharger heat shield and the upper turbocharger heat shield boltsTorque: 18 lb.ft (25 Nm)
- 5.
Install the air cleaner outlet tube. Refer to: Air Cleaner Outlet Pipe .
