Fuel Pump and Sender Unit: Installation
WARNING: This page is about a different variant/trim than selected.

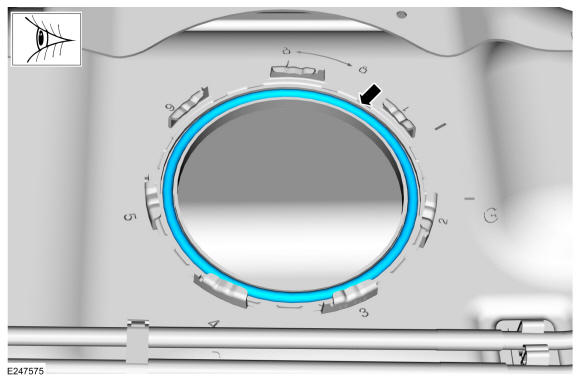

- 1.NOTE: Inspect the surfaces of the fuel pump and sender unit flange and fuel tank O-ring seal contact surfaces. Do not polish or adjust the O-ring seal contact area of the fuel tank flange or the fuel tank. Install a new fuel pump and sender unit or fuel tank if the O-ring seal contact area is bent, scratched or corroded.
Install a new O-ring seal.

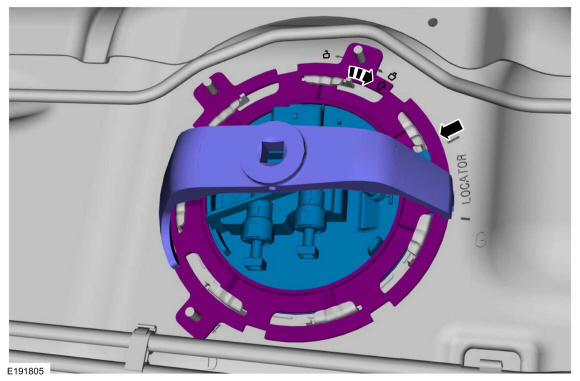

- 2.NOTE: Make sure the fuel pump and sender unit is installed in its original position before tightening the lock ring.

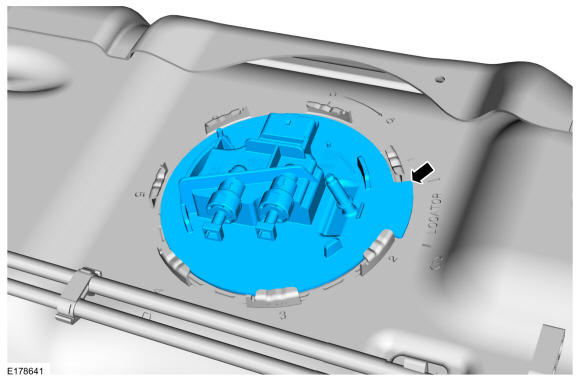

Install the Fuel Pump and Sender Unit into its original position.
